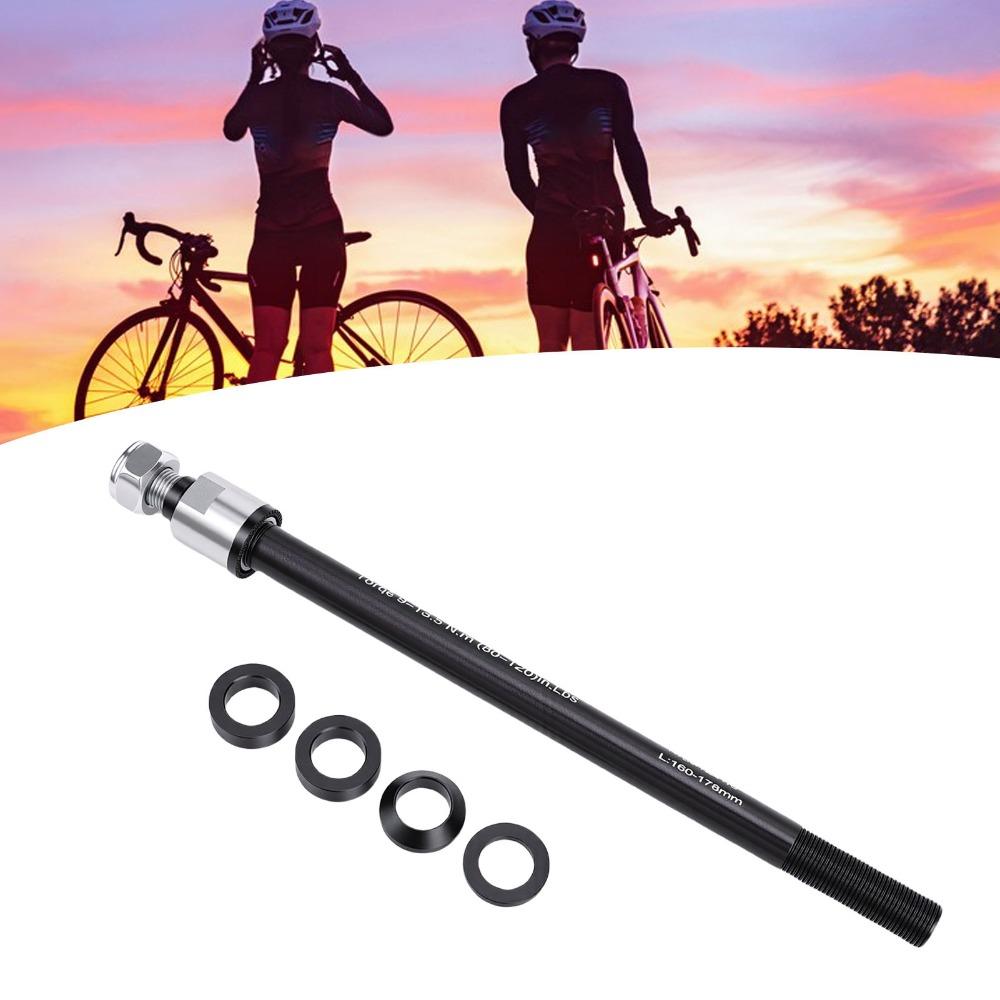

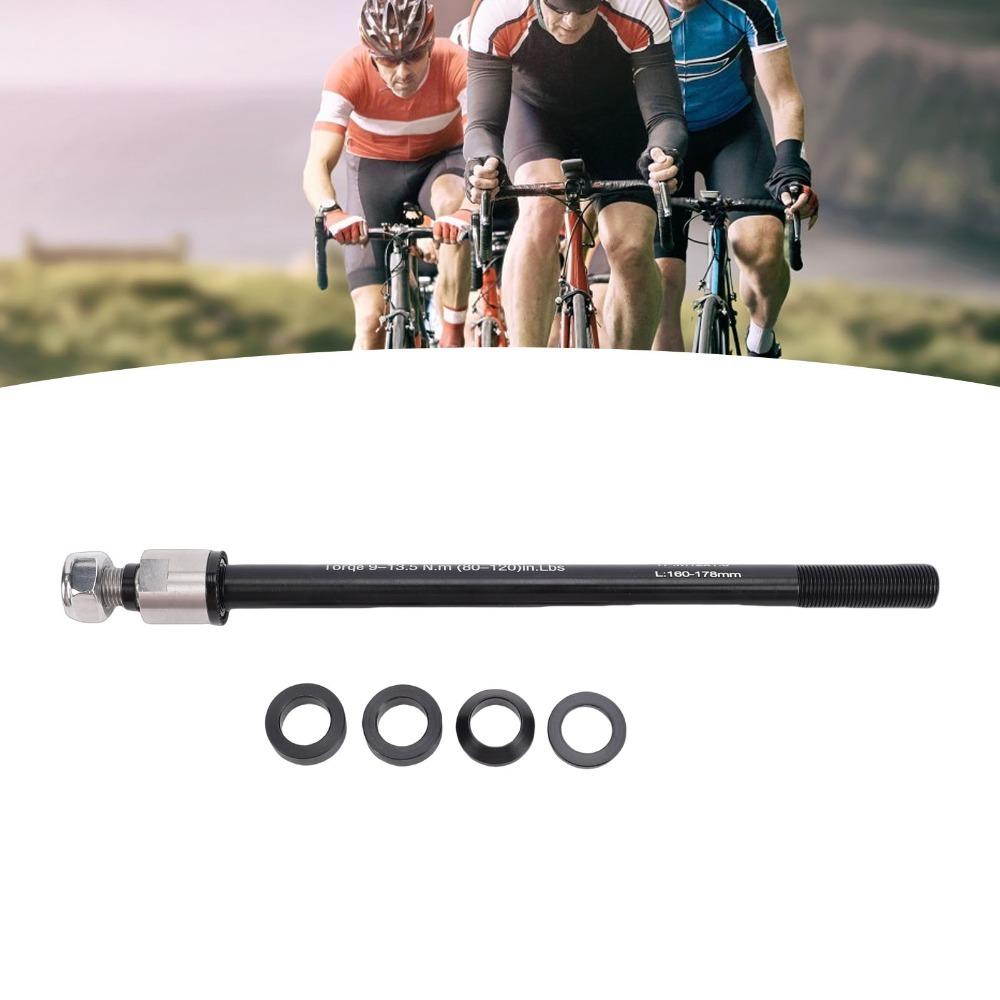

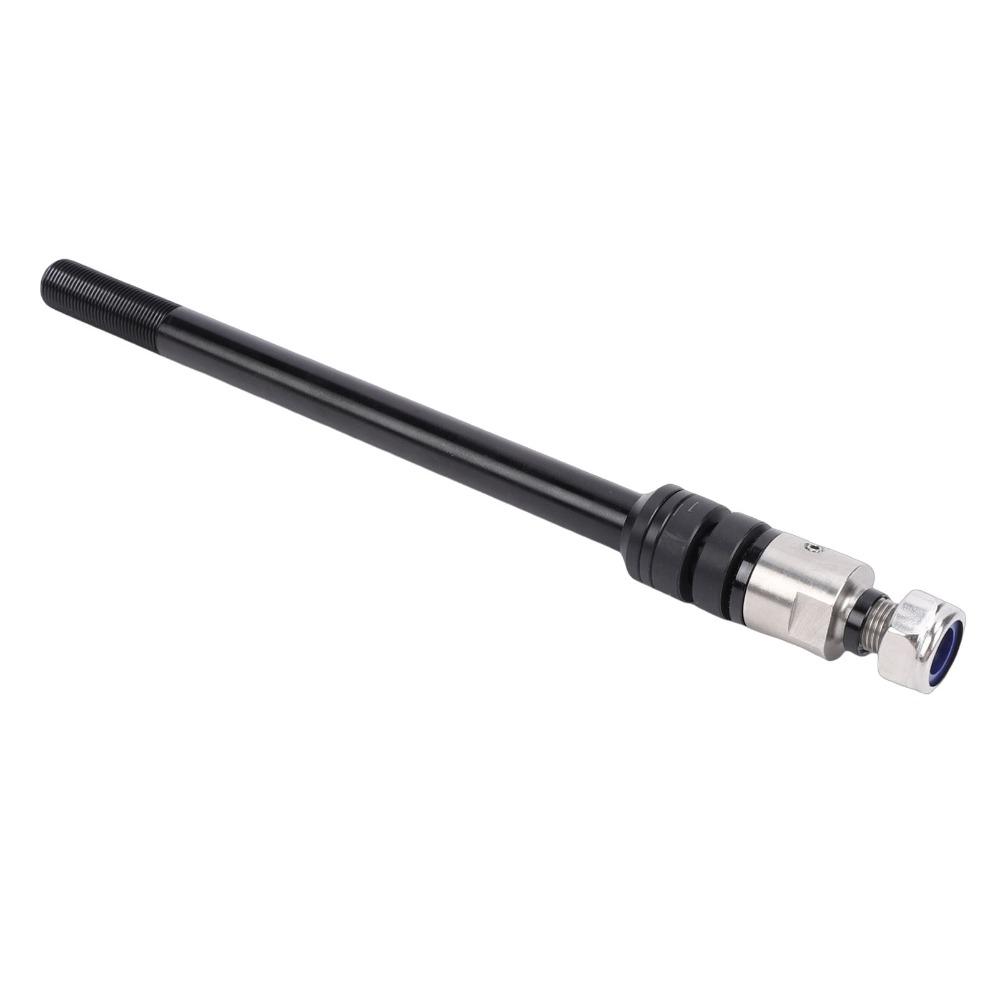

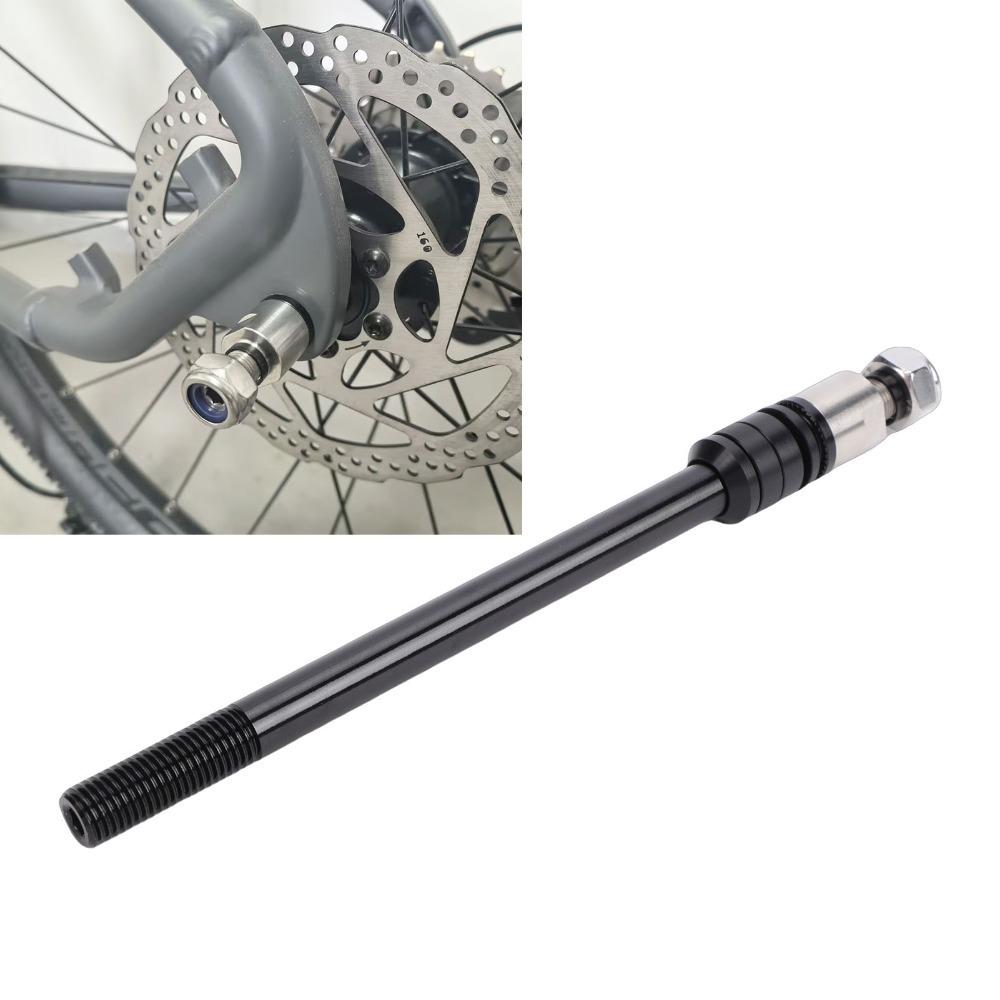

Bike Trailer Thru Axle Adapter: This bike trailer thru axle is designed for bicycle trailer mounting and rear axle replacement. It helps convert compatible thru axle bikes into a trailer ready setup for towing trailers, pet trailers, cargo trailers, and cycling carriers.
Adjustable Fit with Spacers: The axle has an approx. 214 mm(8.43 in) total length, approx. 11.8 mm(0.46 in) rod diameter, and approx. 36 mm(1.42 in) thread length. It includes 2.5 mm(0.10 in) and 6 mm(0.24 in) washers for adjustment, fitting compatible bikes with 135 mm(5.31 in), 142 mm(5.59 in), or 148 mm(5.83 in) rear spacing.
Aluminum Alloy and Stainless Steel: Made from aluminum alloy and stainless steel, this rear bike axle offers a solid structure for trailer connection and rear wheel positioning. The black finish gives a clean look that matches many mountain bikes, road bikes, and gravel bikes.
For Trailer Conversion Use: Compatible frame outer width range is approx. 160 to 178 mm(7.01 in). Recommended torque reference is 9 to 13.5 N.m / 80 to 120 in.lbs. Package includes 1 bike trailer thru axle and 4 washers. Please confirm rear spacing, frame outer width, and M12 thread size before purchase.
M12 Thread Size Options: Available in M12 x 1.0, M12 x 1.5, and M12 x 1.75 thread pitch options. Please check your original rear thru axle thread pitch before ordering. Matching the correct thread pitch is important for proper installation and stable use.
Item Type: Bike Trailer Thru Axle
Material: Aluminum alloy, stainless steel
Color:Black
Thread Size Options: M12 x 1.0 / M12 x 1.5 / M12 x 1.75
Total Length: Approx. 214 mm(8.43 in)
Compatible Frame Outer Width: Approx. 160 to 178 mm(7.01 in)
Rod Diameter: Approx. 11.8 mm(0.46 in)
Thread Length: Approx. 36 mm(1.42 in)
Washer Thickness:2.5 mm(0.10 in) / 6 mm(0.24 in) spacers included
Compatible Rear Spacing:135 mm(5.31 in) / 142 mm(5.59 in) / 148 mm(5.83 in)
Torque Reference: 9 to 13.5 N.m / 80 to 120 in.lbs
Package List:
1 x Bike Trailer Thru Axle
4 x Washer
Notes:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
