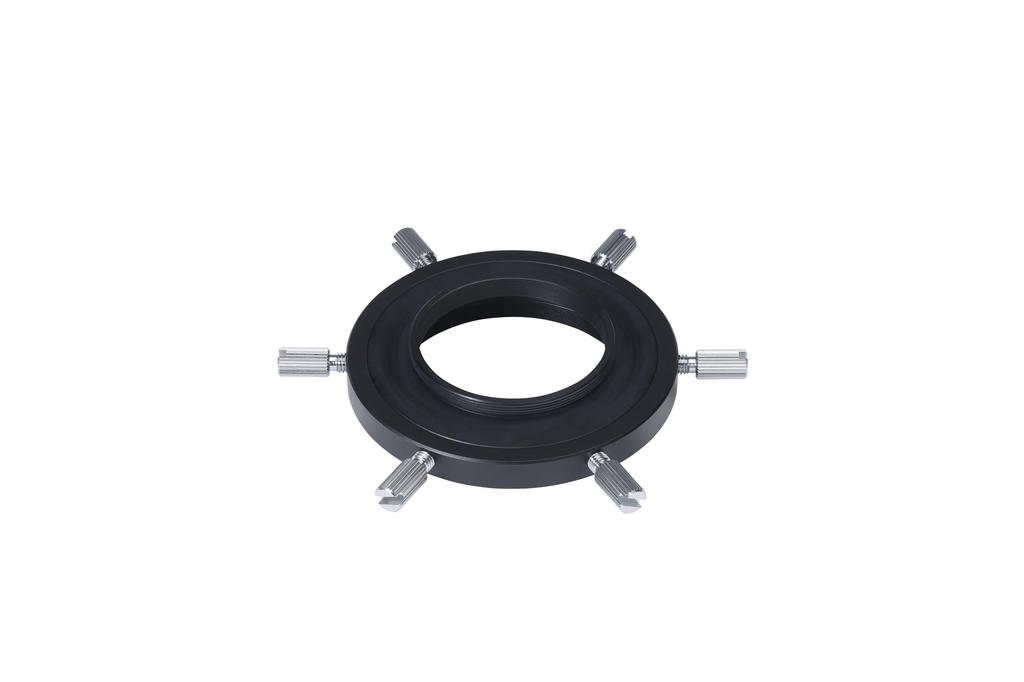

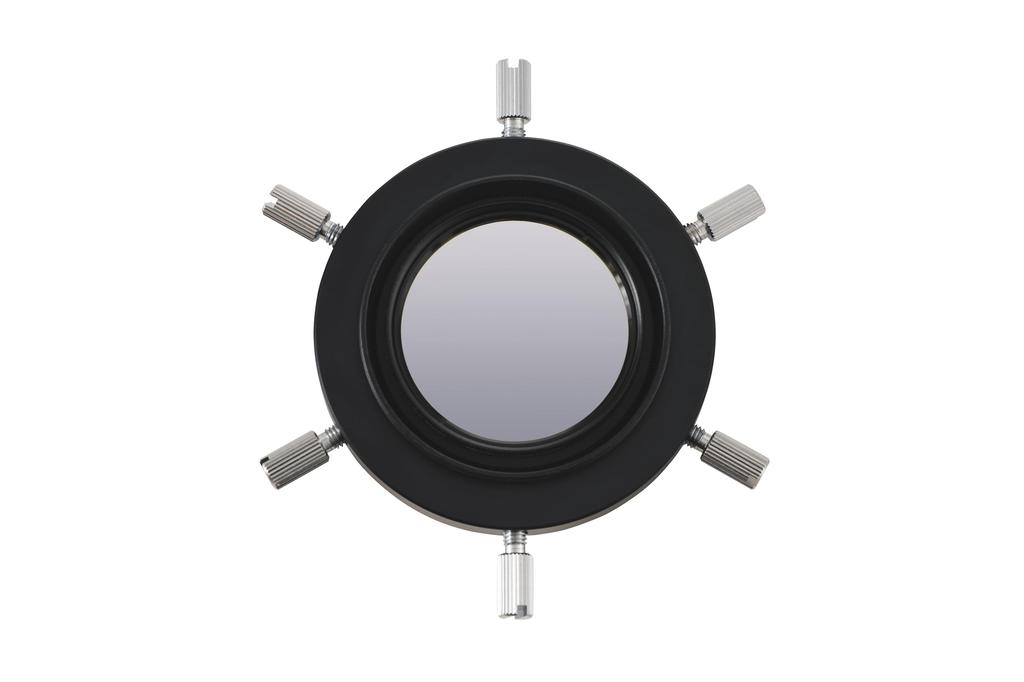

Vixen Astronomical Telescope Accessory Camera Adapter 60 for M48 38753-3

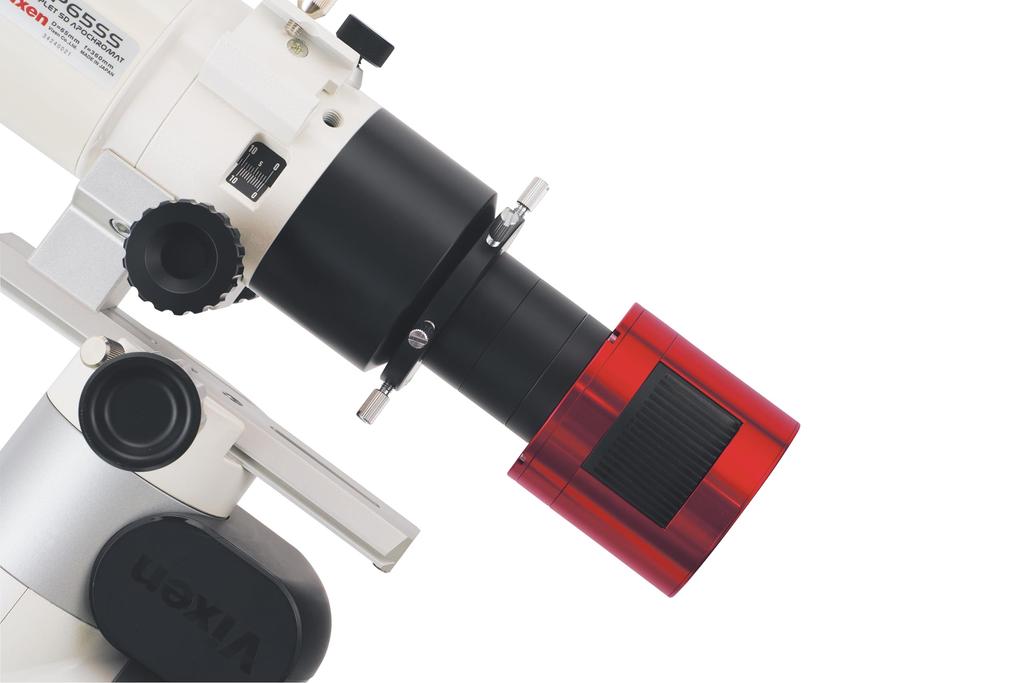

[For attaching astrophotography CMOS cameras to Vixen telescope tubes] This adapter allows you to connect astronomical telescope accessories with a 48mm (P=0.75) diameter female thread to Vixen telescope tubes. You can directly attach CMOS cameras (third-party products) equipped with an M48 thread. [Expanded Options for Imaging Systems] You can now attach astronomical CMOS cameras (third-party)* and 48mm camera adapters (third-party) to the telescope tube of astronomical telescopes with a 60mm diameter female thread eyepiece. *Depending on the CMOS camera, an extension tube may be required. [Camera Rotation Mechanism] By loosening the clamp screw, the camera can be rotated without removing it, allowing for easy changes in the field of view. The clamp screw has a built-in Delrin tip. This increases the contact between the components, making squaring misalignment* less likely. *Squaring misalignment: This refers to a misalignment between the parallelism of the image plane of the objective lens and the image sensor plane inside the camera. The image plane and the image sensor plane must be parallel. If the parallelism is lost, variations in focus will occur in the corners of the star images in astronomical images, affecting the quality of the work. [Compatible with commercially available filters] By using the "M56 filter conversion adapter 48/52" (sold separately), you can attach commercially available 48mm/52mm filters for camera lenses. *Not compatible with Collector PH, Extender PH, Coma Corrector 3, or SDP Reducer. Brand: Vixen
