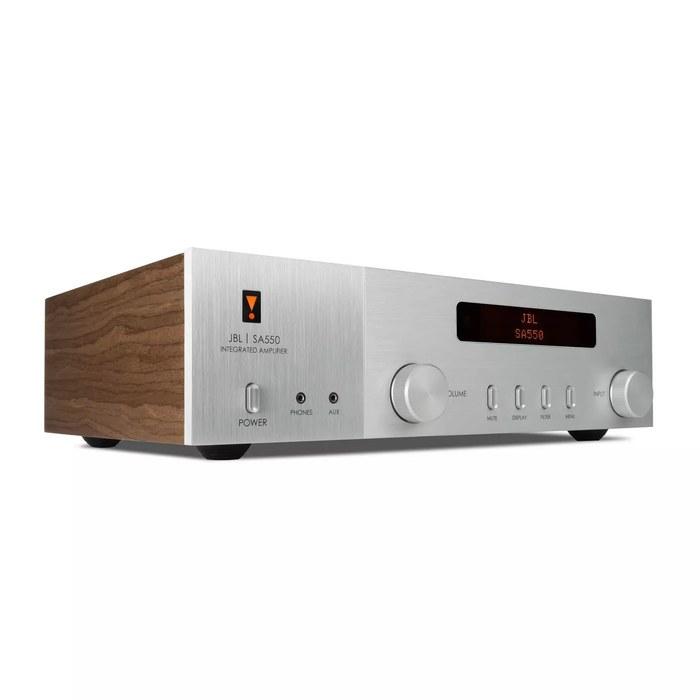

JBL SA550 Integrated Amplifier

The [JBL Classic Components] lineup features a square, retro style characterized by walnut veneer side wood panels and a two-tone aluminum front panel with hairline finishes in both vertical and horizontal directions. These components combine the latest amplifier design with analog/digital technology, representing a cutting-edge series. They are a perfect match for JBL’s new and classic speaker systems, including the L-Classic Series and the 4300 Studio Monitor Series, sharing a chic appearance and a lively sound that brings JBL speakers to life. With a diverse lineup, they support today’s wide range of music sources, from analog/digital disc playback to high-resolution files and streaming.

The [SA550] integrated amplifier is a key component of the [JBL Classic Components], released ahead of time alongside the series’ [SA750WAL].

・An advanced integrated amplifier with a classic style. ・Ultra-low distortion Class-G output circuit. ・Ample power output of 90W at 8Ω and 150W at 4Ω. ・Four analog inputs, including an MM phono input. ・Three digital inputs, including coaxial and optical inputs. ・High-resolution digital audio circuit using the ESS ES9038K2M DAC chip. ・Equipped with Bluetooth supporting Apt-X.

Type: Integrated Amplifier Frequency Response: 20Hz～20kHz ±0.2dB (analog input) / ±0.05dB (digital input) Input Impedance: 10kΩ Output (both channels driven): 90W @ 8Ω, 150W @ 4Ω Maximum Input: 6Vrms THD+Noise: 0.002% S/N Ratio (100W input 2.1V): 106dB Power Consumption: Maximum: 500W External Dimensions (W×H×D) mm: 449×114×327 *Including feet, knobs, and projections Unit Weight: 12.0kg

・An advanced integrated amplifier with a classic style. ・Ultra-low distortion Class-G output circuit. ・Ample power output of 90W at 8Ω and 150W at 4Ω. ・Four analog inputs, including an MM phono input. ・High-resolution digital audio circuit using the ESS ES9038K2M DAC chip.

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device's requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
