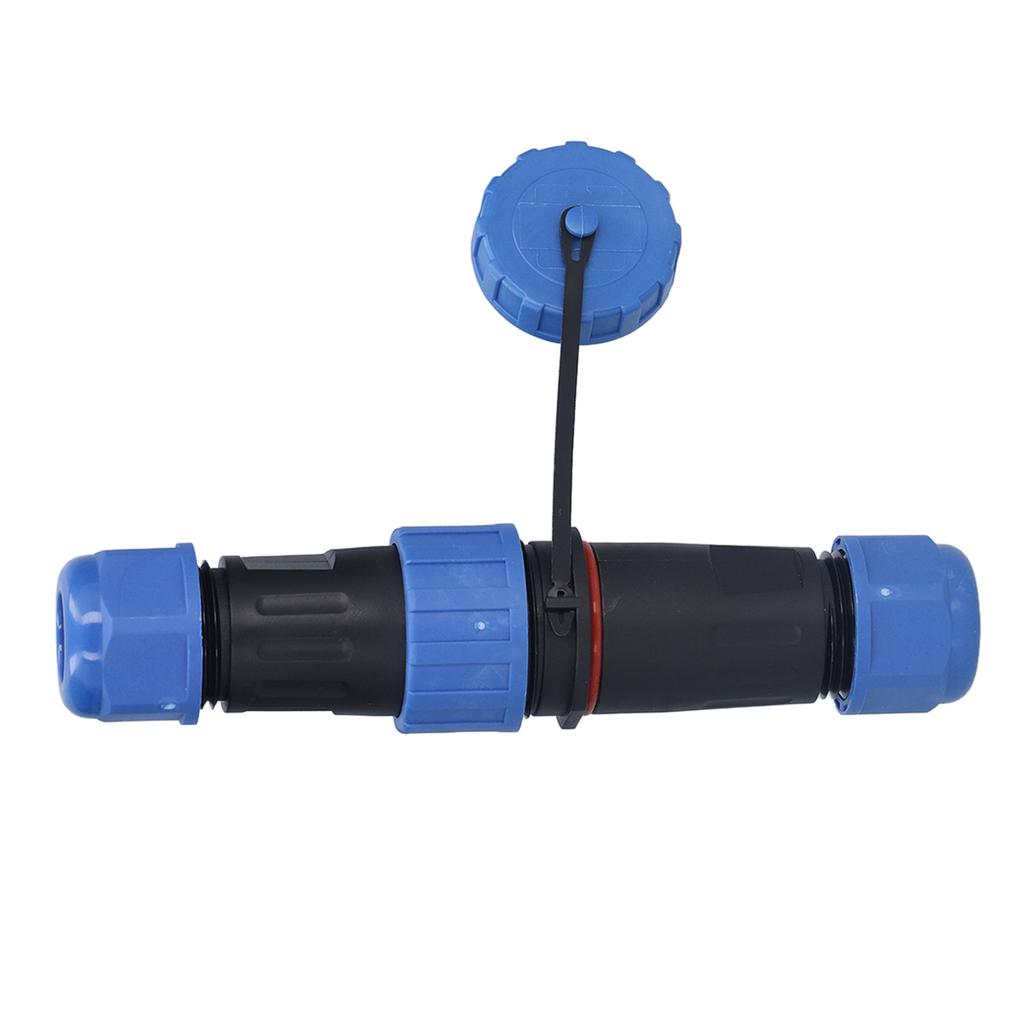

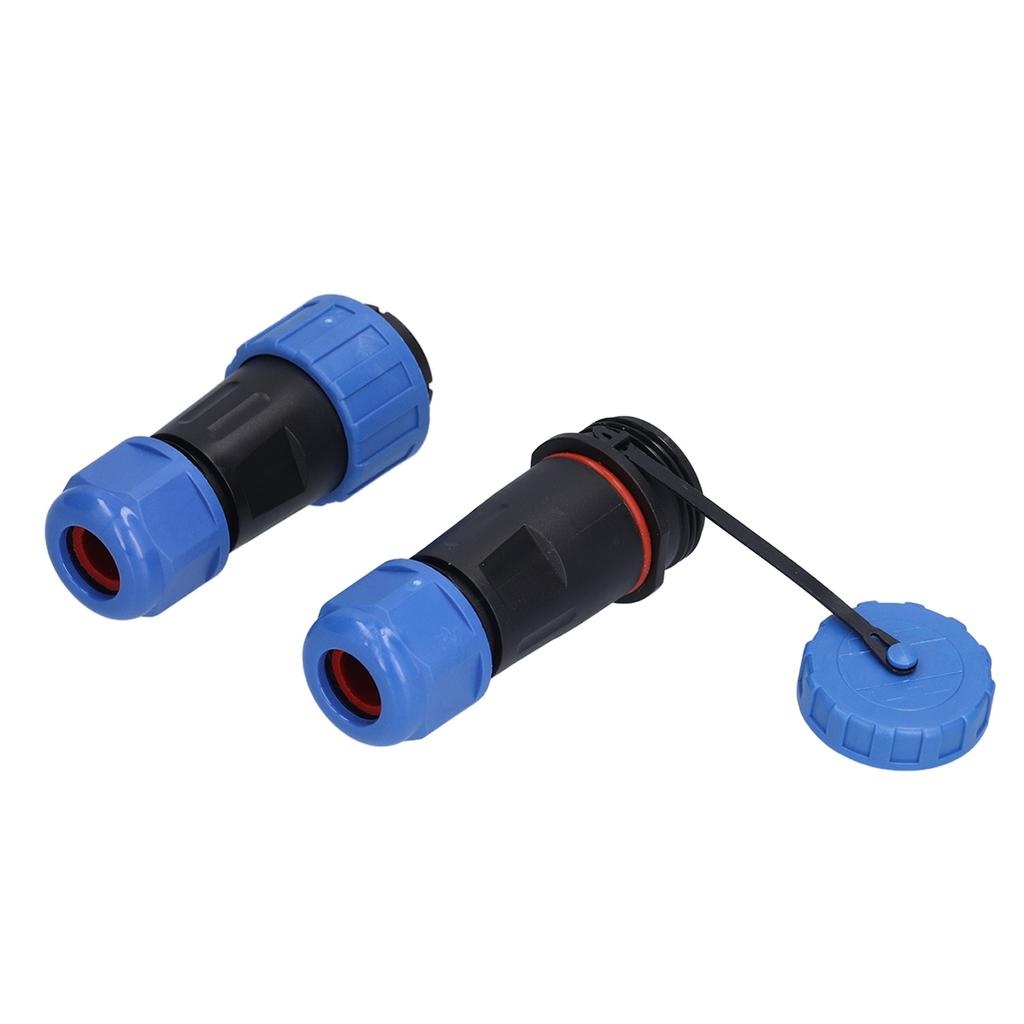

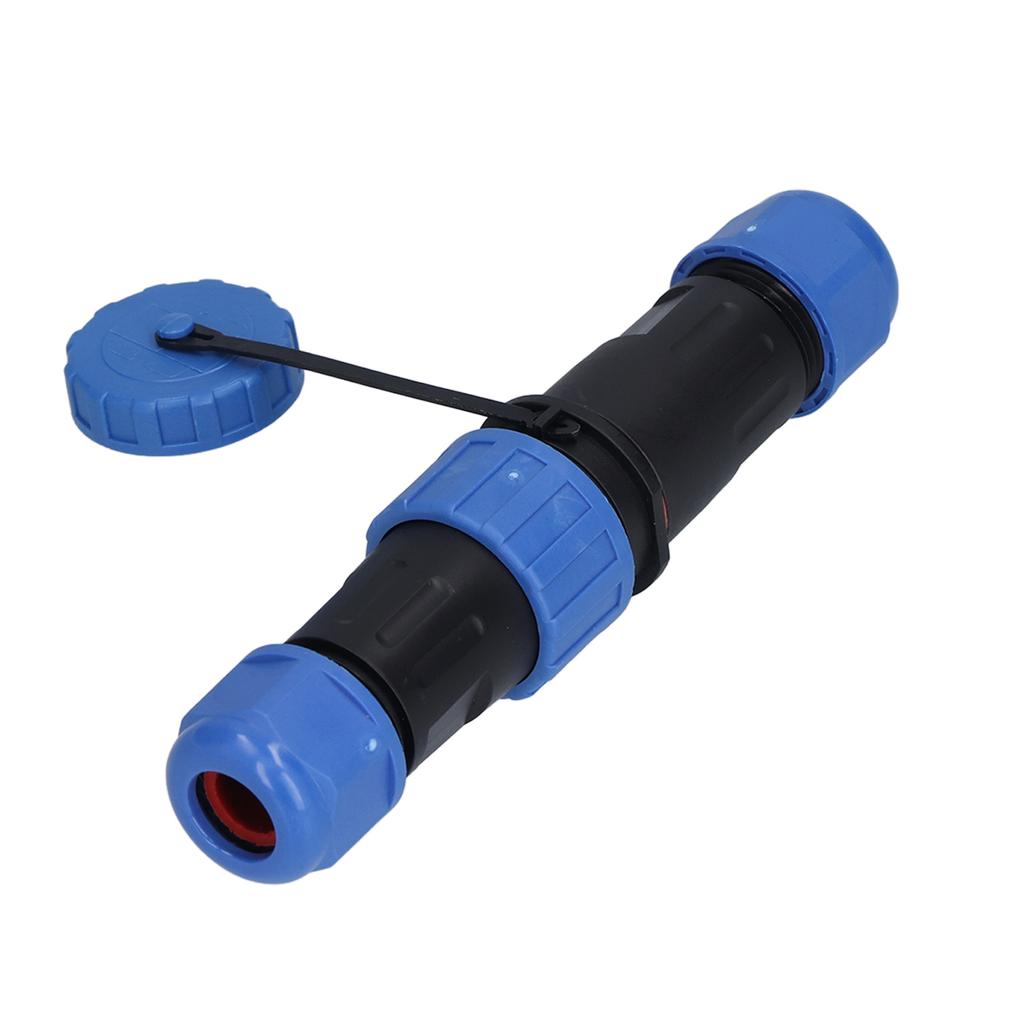

Aviation Plug IP68 Waterproof Multi Core Solder Free Male Female Docking Terminal Aviation Plug Socket3 Core

Feature: 1. Welding Free Installation: The screw crimping method is adopted, and the installation can be completed with only a screwdriver, which is simple and fast. 2. Multiple Specifications: There is a silicone waterproof jacket at the line of the shell, which is tight and waterproof, and a variety of specifications of cores are available to meet the needs of use. 3. Material: Pins, plug resistance; pure copper gold plated, anti oxidation, long service life. 4. Waterproof: 250V 2/3/4/5 core LP20 solder free butt type IP68, waterproof aviation connector. The waterproof aviation connector shell is made of PA66 and PA6 materials, which has good corrosion resistance and flexibility, and will not appear to be a safety hazard due to low temperature. 5. Application: Widely used in communication equipment, instruments, computers, program controlled machines, alarms, etc. and bridge electronic equipment.

Specification: Item Type: Aviation Plug Material: PA66, PPS, Silica Gel, Copper Uses: Widely Used in Communication Equipment, Instrumentation, Computers, Program Controlled Machines, Alarms, Etc. and Bridge Electronic Equipment Shell Material: PA66, PA6 Insulator: Thermoplastic PPS (High Temperature Resistant 220℃) Contact Material: Copper (Gold Plated) Connection Method: Screw Crimping Connection Method: Threaded Connection Head Size: Approx. 20mm / 0.8in Insulation Resistance: 2000MΩ Contact Diameter: 2.8/2.8/2.8/1.8mm Copper Pin Applicable Cable: 0.5-4mm²/0.5-4mm²/0.5-4mm²/0.5-2.5mm² Applicable Current: 25/25/25/10A Applicable Voltage: 250V Applicable Cables for Shell: Φ6-12mm² Mating Times: More Than 500 Times Operating Temperature Range: -25℃ to 85℃ Tightness: Conform to IP68

Package List: 1 x Male 1 x Female
