Label:Yes
Application: High Pressure Audio Circuit
Operating Temperature: -40℃-+85℃
Structure: Non-polar Axial Lead Type
Dissipation Factor: Max 0.08% at 1KHZ 25℃
Insulation Resistance: >30000MQ(C≤0.33uF) >10000MQ(C>0.33uF)
Color: Yellow
Rated Working Voltage: 250V
Capacitance Tolerance: ±3%(H) ±5%(J) ±10%(K)
Quantity: 1Pcs
Capacitance Range: 0.01~47uF
Brand new and high quality

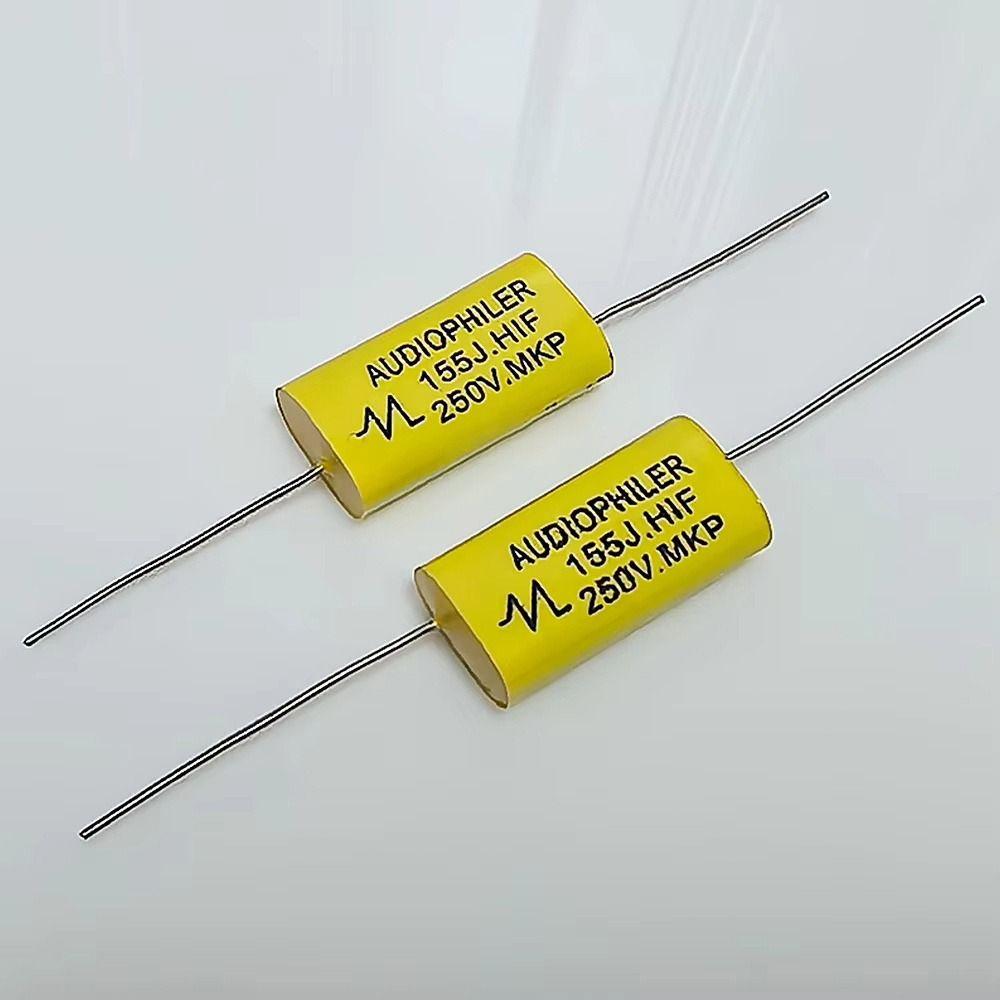

Type: MKP Polypropylene Film Capacitor
Size Chart:
1uF/250V: 27x12x6mm(1.06x0.47x0.24in)
1.5uF/250V: 27x14x7mm(1.06x0.55x0.28in)
2.2uF/250V: 27x16x8mm(1.06x0.63x0.31in)
3.3uF/250V: 32x18x9mm(1.26x0.71x0.35in)
4.7uF/250V: 32x19x11mm(1.26x0.75x0.43in)

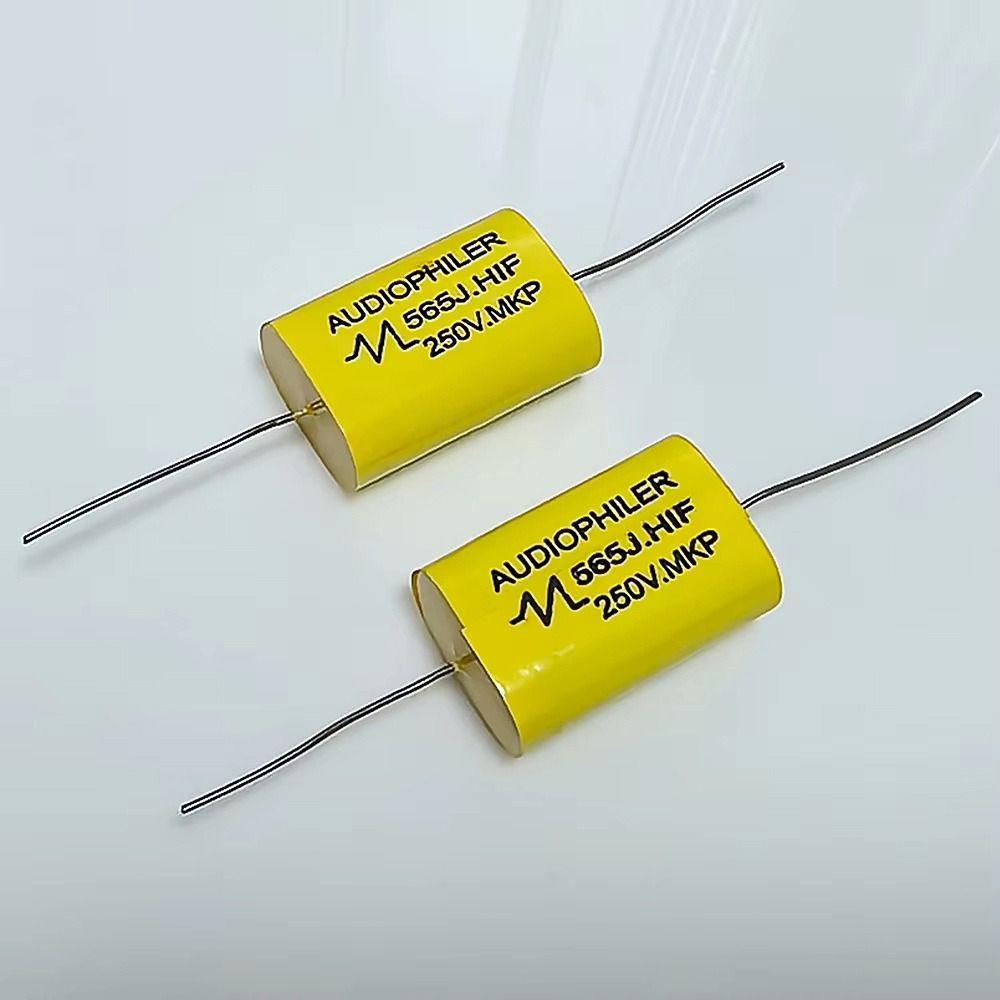

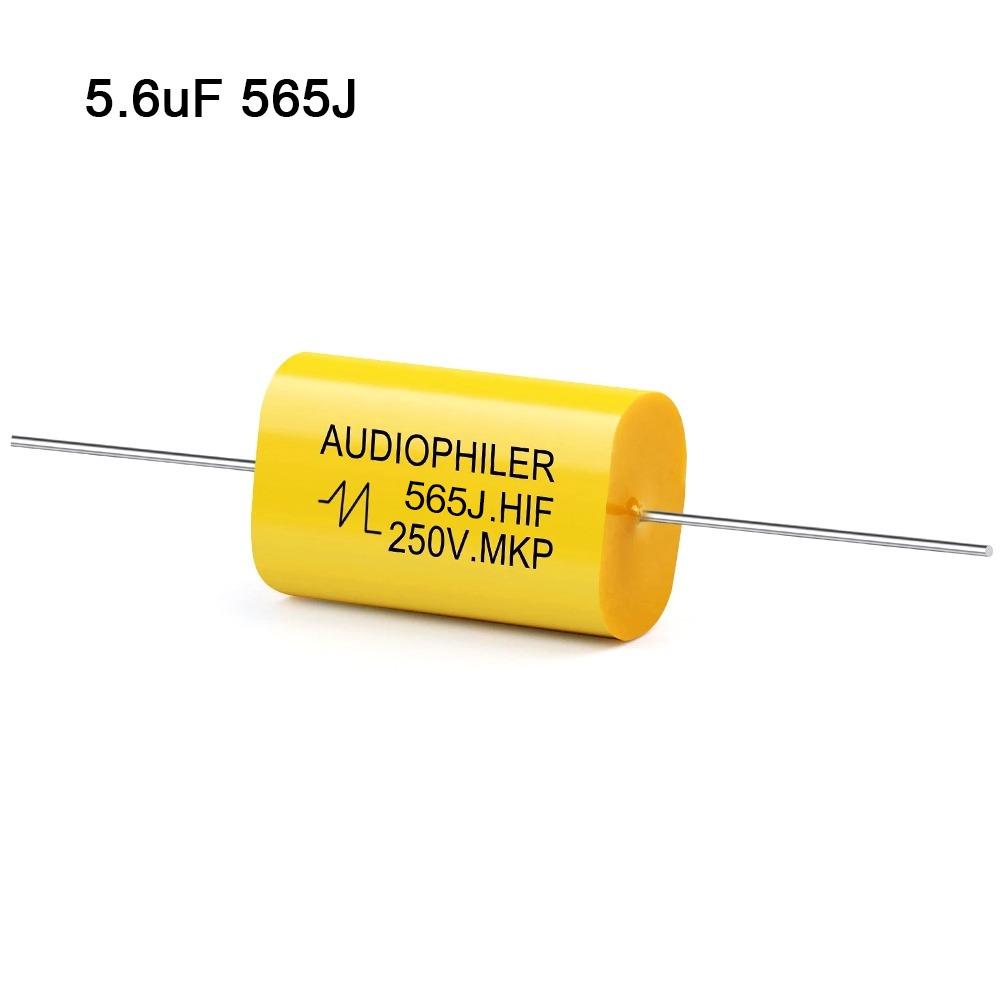

5.6uF/250V: 32x21x13mm(1.26x0.83x0.51in)
6.8uF/250V: 37x21x13mm(1.46x0.83x0.51in)
8.2uF/250V: 37x22x14mm(1.46x0.87x0.55in)
10uF/250V: 37x24x16mm(1.46x0.94x0.63in)
15uF/250V: 37x28x20mm(1.46x1.10x0.79in)
22uF/250V: 47x29x21mm(1.85x1.14x0.83in)
33uF/250V: 47x35x27mm(1.85x1.38x1.06in)
47uF/250V: 47x37x29mm(1.85x1.46x1.14in)
Description

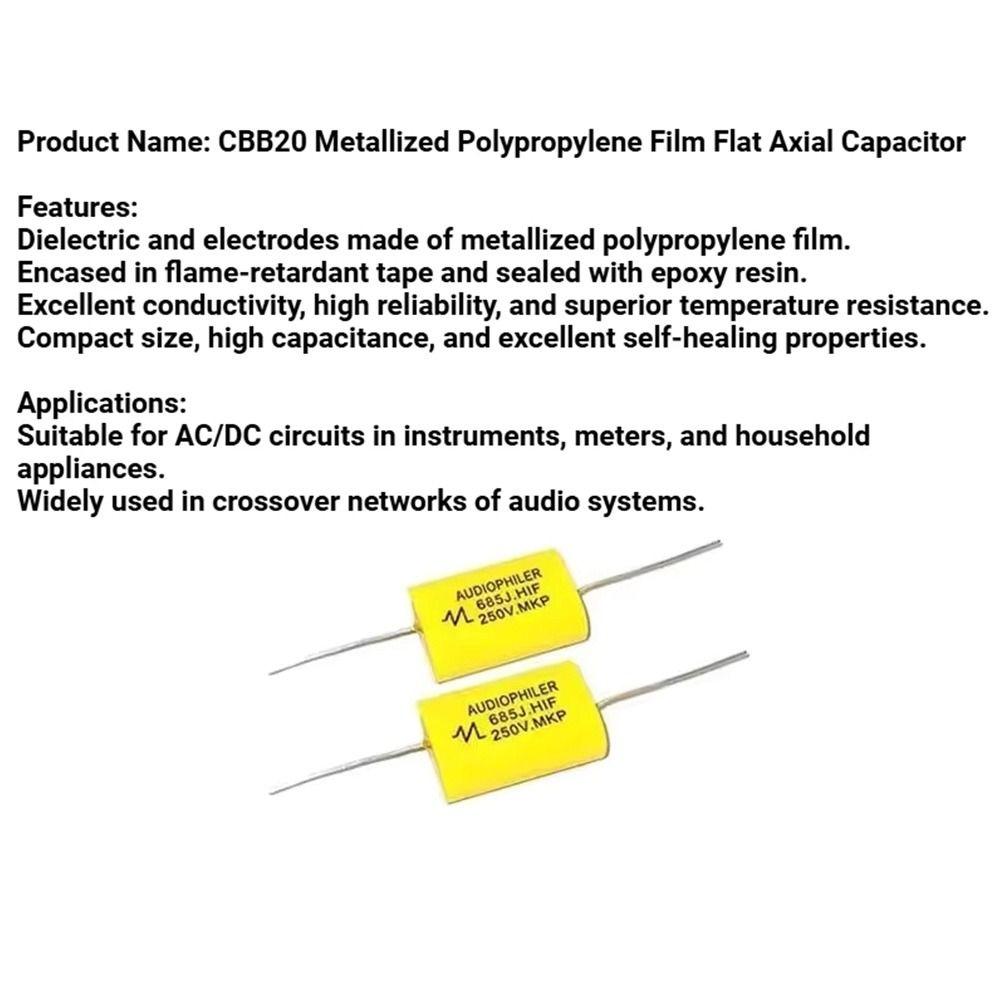

This high-performance MKP polypropylene film capacitor is specially designed for HIFI fever audio equipment. It features stable electrical performance, extremely low loss and excellent insulation property, effectively purify audio signal. Widely used for audio coupling, frequency dividing circuit and high pressure circuit equipment. Complete capacitance specifications meet all kinds of speaker, amplifier audio circuit modification and matching demands, axial lead design is convenient for wiring and welding installation.
Features
- Premium polypropylene film material, stable electrical performance and long service life.
- Wide temperature resistance range, suitable for various use environments.
- Low dissipation factor, effectively restore pure original sound quality.
- High insulation resistance, safe and reliable for long time working.
- Rich complete capacitance specifications, strong matching versatility.
- Standard axial lead design, easy installation and circuit arrangement.
Notice
1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.
3. 1cm=0.39''.
Package Included
1Pcs x MKP Audio Frequency Dividing Film Capacitor
