125W Self Priming Water Pump Pure Copper Core Wire Pressure Booster Pump for Home Use Garden Irrigation EU Plug

Feature: 1. Premium Material: The pressure booster pump body is made of high quality cast iron, which is aesthetically pleasing, lightweight, corrosion resistant, rust proof and durable. 2. Easy to Install: The water pressure pump has a fixed base and a high rigidity bottom. The design of the mounting holes makes it easy to fix the pump to the wall on the floor, making it safe and secure. 3. Excellent Heat Dissipation: The self priming water pump has a fan heating wheel for efficient fan heating and long lasting efficiency of the motor. 4. Convenient to Use: The self priming pump is designed with a non return valve to avoid backflow of water and to facilitate the connection of valves, pipes, etc. It is easy and reliable to install. 5. Full Protection: Transfer pump with all copper core wire motor, long lasting work, full power double protection, refuse to burn machine.

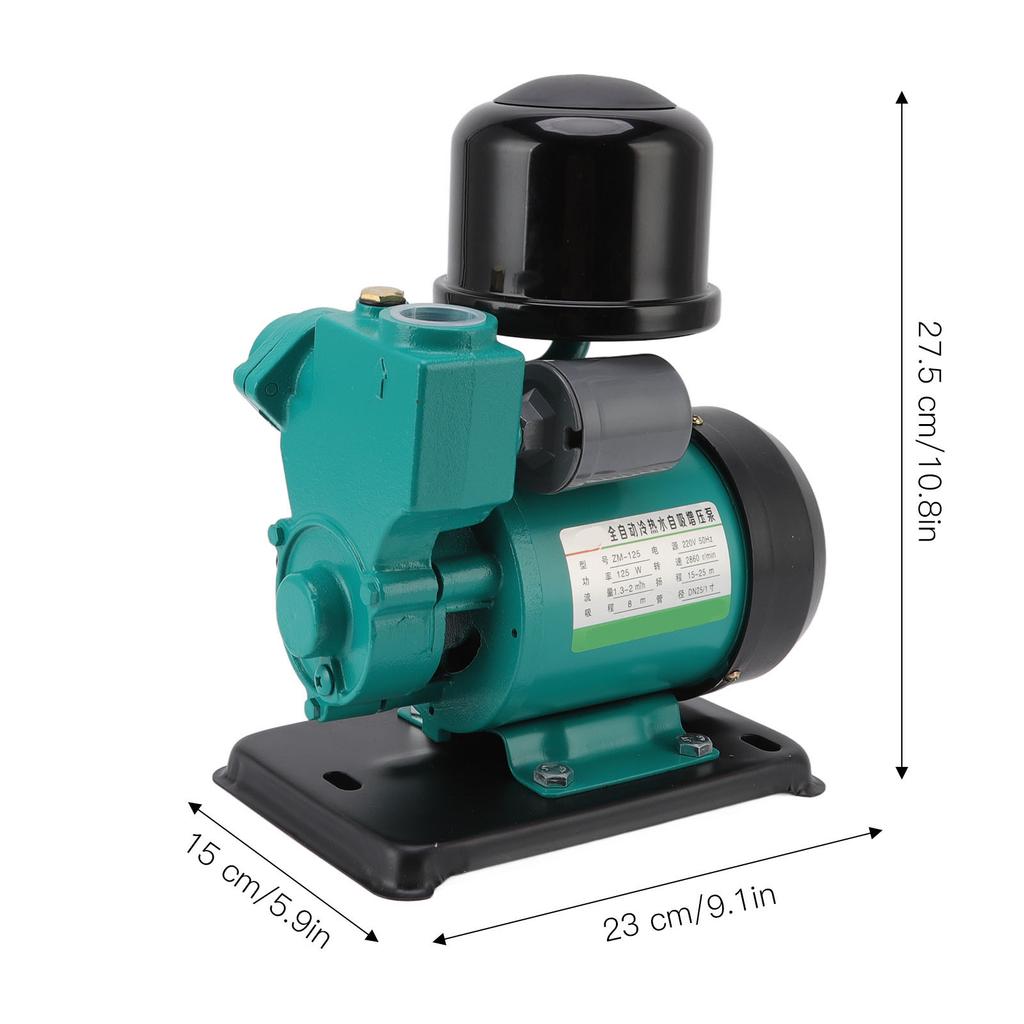

Specification: Item Type: Pressure Booster Pump Material: Cast Iron, ABS Weight: Approx. 7300g/257.5oz Size: Approx. 23x15x27.5cm / 9.1x5.9x10.8in Model: ZM-125 Flow Rate: 1.3-2m3/h Rotation Speed: 2860r/min Power: 125W Suction Range: 8m/26.2ft Lift: 15-25m/49.2-82.0ft Calibre: DN25/1 Inch Widely Used In: Water Booster, High Floor Booster, Solar Booster, Water Heater Booster, Bathroom Booster Water Tower Water Booster

How to Use: 1. The pump needs a little priming water before it initially starts, make sure you make it a priority1) Remove the pilot cover and fill with pilot water2) Put the cover on and open a tap3) Plug in and operate the pump, the water will come out after 3 to 8 minutes4) If water does not come out, it may be due to insufficient priming water, so add water again2. Use the pump after it has been left for a long time

Due to the solidification or bonding of dirt in the pump, even if the switch is closed, the motor may not turn.

Package List: 1 x Pressure Booster Pump 1 x Instruction Manual

Note: 1. The earth wire must be earthed before use to prevent electric shock in case of poor insulation, for safety reasons, be careful not to get the power plug wet 2. Turn off the power supply before grounding. Never connect the earth wire to the gas pipe, otherwise there is a risk of explosion. 3. Avoid running the pump without water, this will shorten the life of the pump, and the motor will heat up and be prone to failure. 4. Do not use any liquid other than water. When using soluble substances such as benzoic acid, flammable substances such as petrol and high viscosity liquid, it is easy to cause a fire. 5. In cold weather, when using the pump, do not cover the hydrogen motor or pump head with a quilt or cloth to prevent freezing, because the motor will heat up and there is a risk of fire. 6. Do not expose the pump to direct light for work, it will affect the service life of the pump. 7. Manual measurement please allow some errors.
