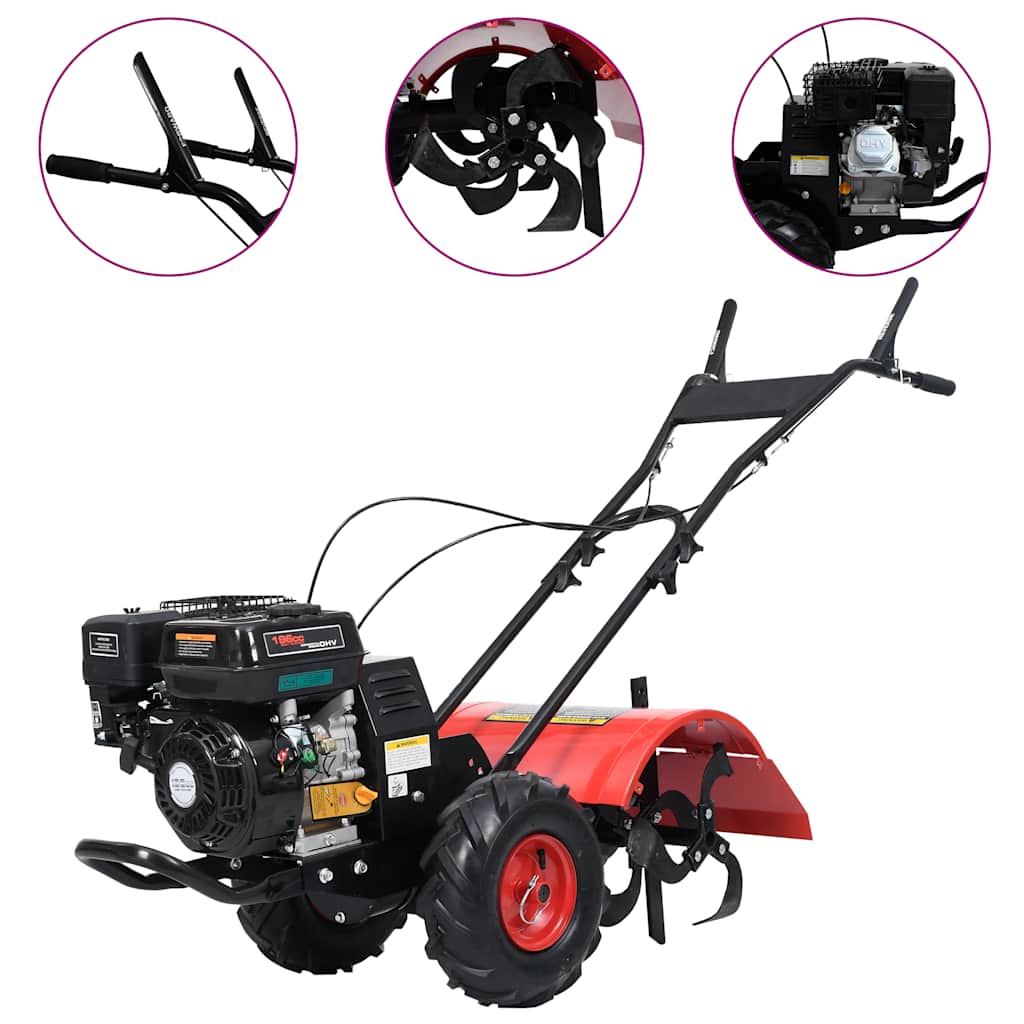

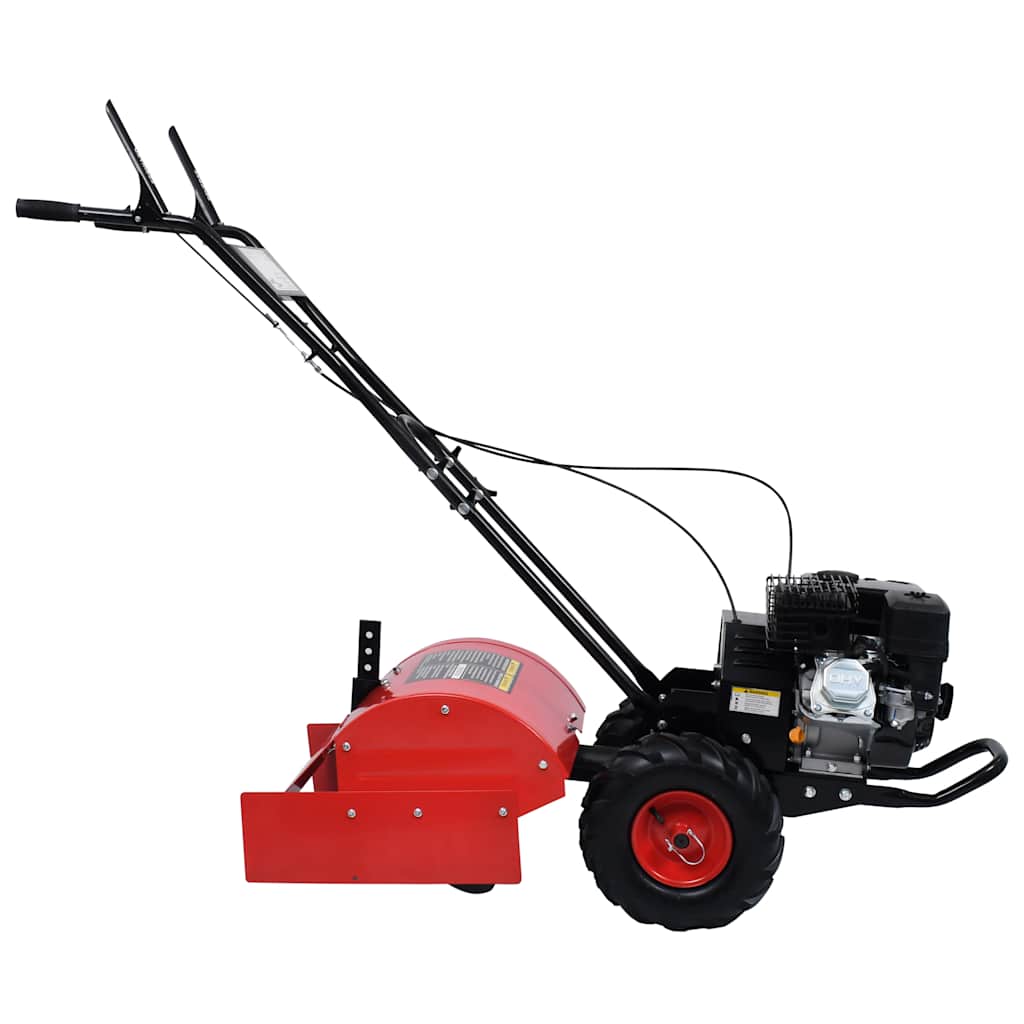

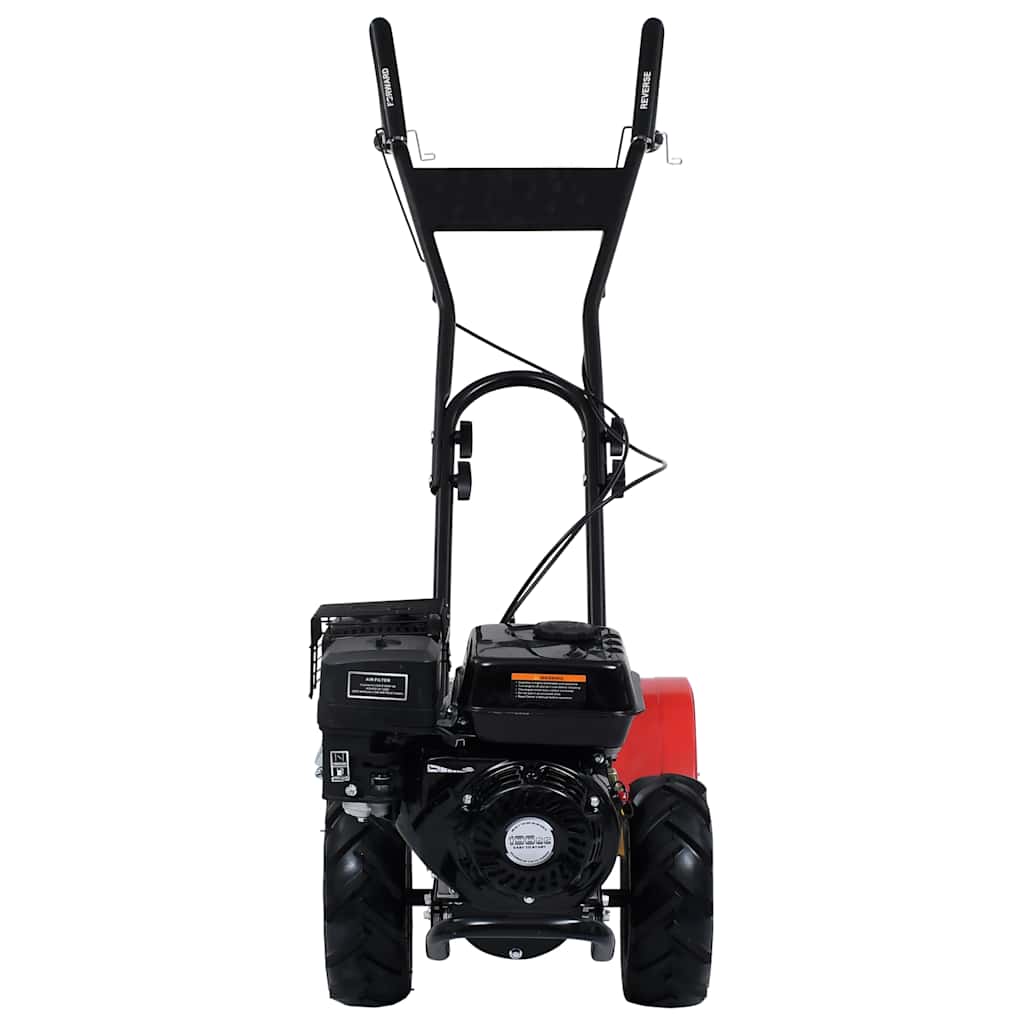

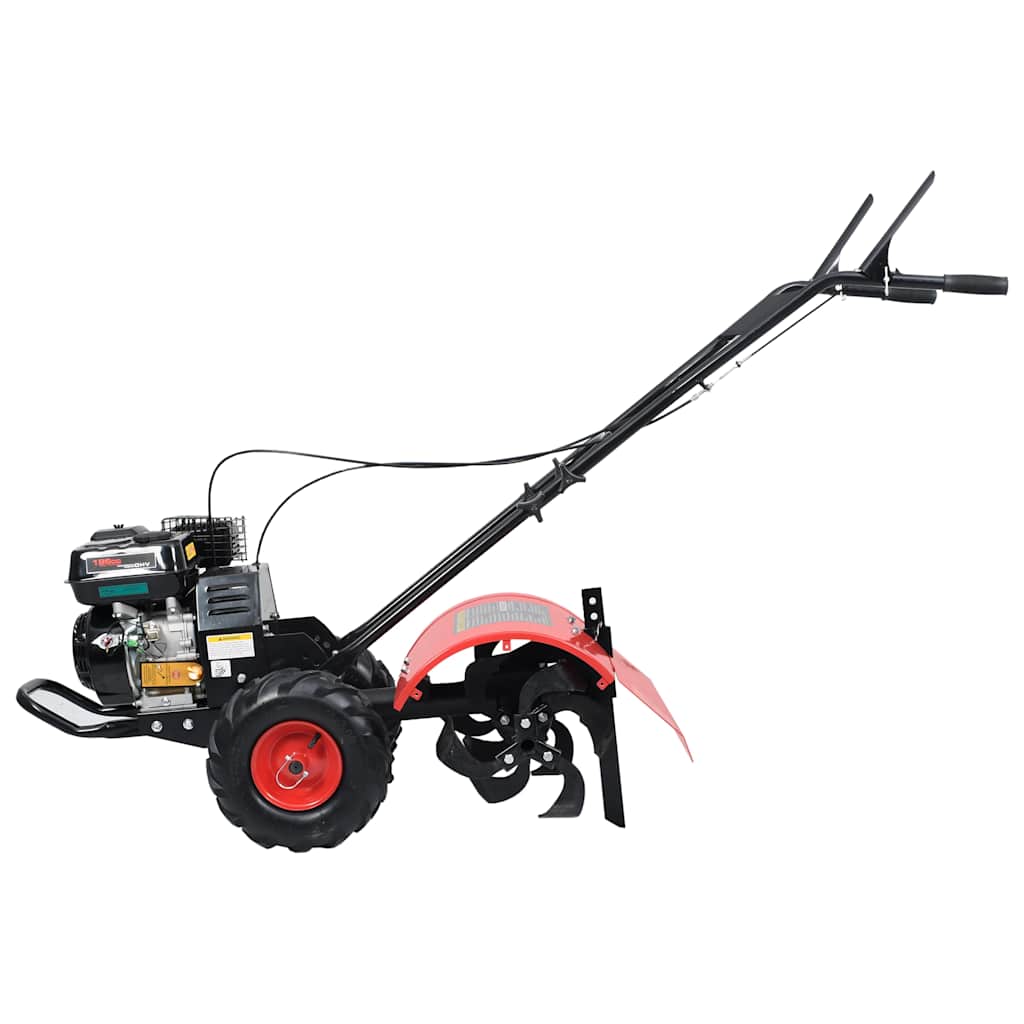

This high performance garden cultivator features a working width of 50 cm and an adjustable working depth ranging from 175 mm to 350 mm. It is ideal for loosening soil, preparing seedbeds, and incorporating organic fertilizer or peat into the ground. Equipped with a 196 cm³ gasoline engine and a maximum engine speed of 3600 rpm, this garden tiller delivers peak performance and outstanding results. Its 12 metal tines ensure maximum durability, power, and operational efficiency. The robust construction reduces vibrations and enhances longevity. Additionally, the cultivator allows forward and reverse operation for optimal flexibility.
Color: Red and black
Material: Plastic, metal

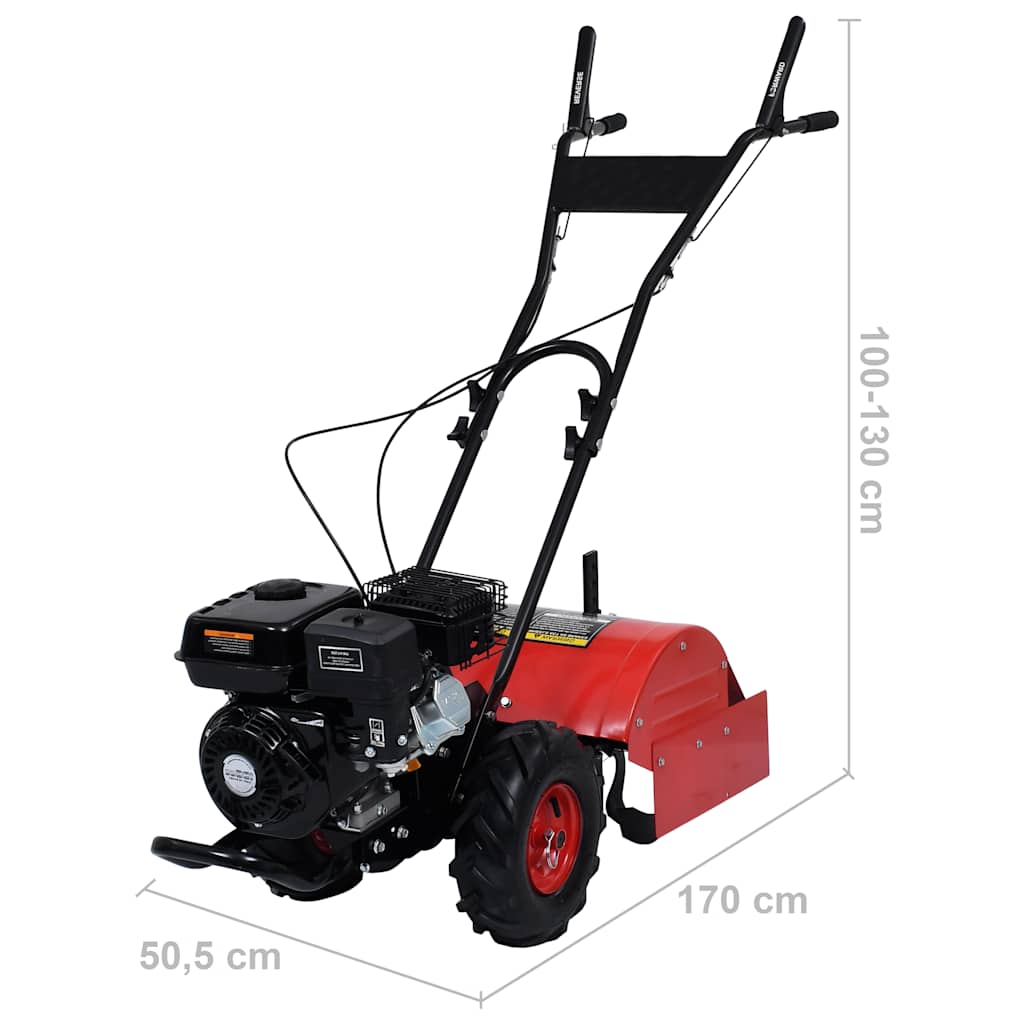

Overall dimensions: 170 x 50.5 x (100 130) cm (L x W x H)
Tine diameter: 34 cm
Equipped with 12 tines
Working width: 50 cm
Air filled tire diameter: 33 cm
Adjustable working depth: 175 350 mm
Fuel tank capacity: 3.6 L
Engine type: Air cooled, OHV 4 stroke
Displacement: 196 cm³
Speed: 3600 rpm
Engine power: 6.5 HP
Net weight: 70 kg
Forward and reverse function
Metal engine guard cover
Air filter: Clean every 50 operating hours! (See manual for instructions.)
OIL: Fill up to the full mark before starting. The engine will not start or may shut off if oil level is too low.
WARNING: Gasoline is highly flammable and explosive. Turn off the engine and allow it to cool before refueling. The engine emits toxic carbon monoxide. Do not operate indoors. Read the instruction manual before use.
ENGINE SHIPS WITHOUT LUBRICANT. Take a moment to fill the engine with SAE 10W30 lubricant up to the upper mark on the dipstick. DO NOT OVERFILL. Check the oil level and read the instruction manual before proceeding.
DANGER: PREVENT INJURY FROM ROTATING TINES! Keep hands, feet, and clothing clear. Read and follow the instruction manual before starting the engine. Gasoline is flammable. Allow the engine to cool for at least 2 minutes before refueling. Engines emit carbon monoxide. DO NOT operate in enclosed spaces. Temperature in the muffler area may exceed 150 degrees F. Do not touch hot parts.
Max. power: 6.5 HP 3600 RPM
Tilling width: 500 mm
Tilling depth: 175 350 mm
WARNING: AVOID SERIOUS INJURY Read the instruction manual(s) before operation.
Know the location and function of all controls.
Ensure all safety guards are properly installed and operational during use.
Never allow children to operate the cultivator.
Dress appropriately wear sturdy footwear.
Carefully inspect the area to be tilled remove large rocks and other foreign objects.
DO NOT till over underground electrical, water, gas, or other utility lines and pipes.
Shut off the engine and disconnect the spark plug before clearing debris or performing maintenance.
If you leave the operating position for any reason:
shut off the engine;
wait until all moving parts have come to a complete stop.
WARNING: WHEELS ACT AS BRAKES Never start or operate the cultivator with wheels in freewheel position. Ensure wheel locks are fully engaged over the wheel hubs and axle.
Wheels act as brakes to maintain controlled cultivator speed only when the engine is off.
OPERATION: DETAILED OPERATING INSTRUCTIONS ARE INCLUDED IN THE USER MANUAL.
TO START:
1. Place the drive control lever in neutral position.
2. Lower the drag bar so that the tines do not contact the ground.
3. Check wheel position and wheel lock engagement.
4. Push the choke lever to the choke position.
5. Set the throttle control lever to the fast position.
6. Pull the starter cord.
Keep children and bystanders away while operating the machine. Do not allow children to play with the machine. This is not a toy. Wear appropriate personal protective equipment before operating the machine.
