New Professional ANENG AR02 Thermal Imaging Multimeters Digital Multimeter USB Type-c Charge 1000V 25000 Count Tester Multimetro TFT Display Test Tool
Key Features：

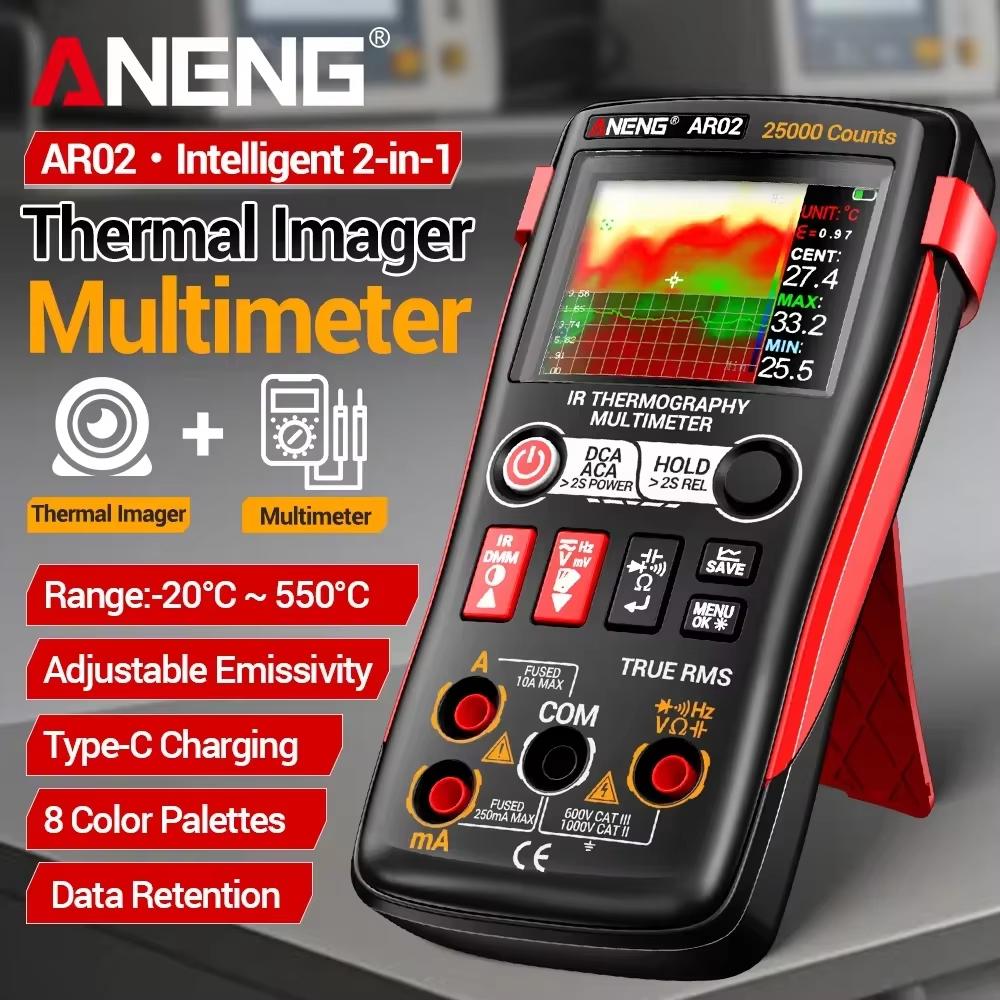

2-in-1 Thermal Imaging Multimeter：Combines a professional thermal camera with a high-precision digital multimeter in one handheld device. Seamlessly switch between modes to diagnose electrical faults and thermal anomalies faster—ideal for automotive repair, electronics troubleshooting, and industrial maintenance.
High-Resolution Thermal Imaging：Features 240×240 imaging resolution with 96×96 infrared resolution. Adjustable emissivity (0.01–1.00) and 8 color palettes (white hot, black hot, iron red, rainbow, etc.) deliver clear temperature visualization. Three-point tracking (center, max, min) ensures precise hot spot detection.
Comprehensive Multimeter Functions：25000-count high-precision measurement supports AC/DC voltage, AC/DC current (including mA range), resistance, capacitance, diode test, and continuity buzzer. Dual fuse protection (600mA/250V and 10A/250V) safeguards the device against overload—simply replace the fuse if needed.
Data Storage & PC Image Review：Capture and save thermal images directly to the device with a long press of the SAVE button. Connect via USB to a computer, enable USB communication mode, and the device appears as a removable drive—easily view and manage saved images without additional software.
Adjustable Brightness & Type-C Rechargeable Battery：Customize screen brightness from 10% to 100% for comfortable viewing in any lighting condition. Powered by a built-in 2000mAh lithium battery with Type-C charging—the power button glows red during charging and turns off when fully charged.
Wide Range of Applications：Perfect for electrical maintenance, automotive diagnostics, electronics repair, HVAC inspection, and more. Commonly used in fire safety, archaeology, transportation, agriculture, geology, and energy sectors.
Specifications：
Thermal Imaging
Infrared Resolution: 96 × 96
Imaging Resolution: 240 × 240
Infrared Band: 8–14 μm
Frame Rate: 25 fps
Sensor: Vanadium Oxide (VOx) Microbolometer
Emissivity: Adjustable 0.01 – 1.00
Palette Modes: White heat, black heat, blue, iron red, color, red heat, fusion, rainbow
Display
Screen: 2.4-inch TFT
Resolution: 320 × 240
Brightness Adjustment: 10% – 100% (10 levels)
Temperature Measurement
Range: -20°C to 550°C (-68°F to 1022°F)
Accuracy: ±2°C or ±2% of reading (whichever is greater)
Measurement Points: Center, Max, Min, RT Temp

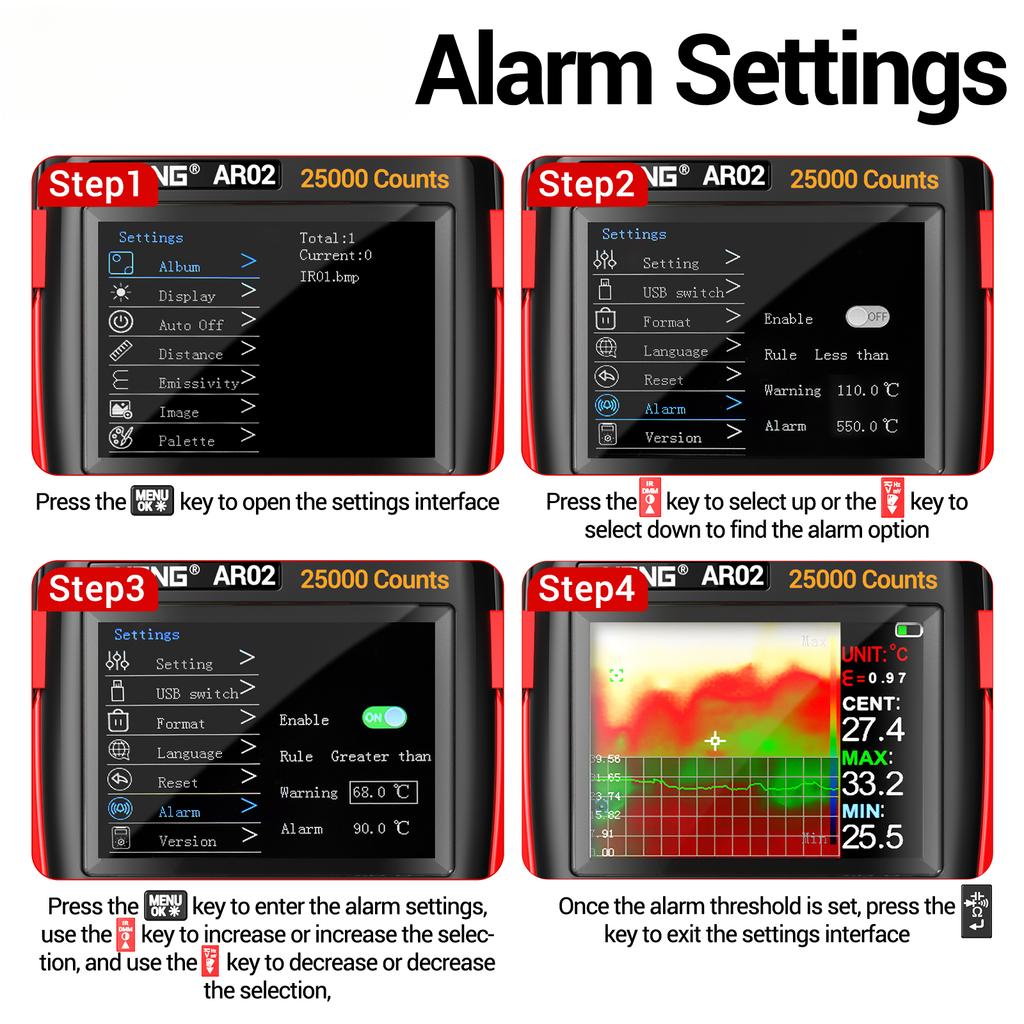

Temperature Alarm: Supported
Optics
Field of View: 50° (H) × 50° (V) / 72.1° (D)
Focus: Fixed focus
Measurement Distance: 0.3 m – 50 m
Multimeter Functions
Max Count: 25000 counts
DC Voltage: 0 – 1000V (accuracy ±0.05%)
AC Voltage: 0 – 750V (accuracy ±0.5%)
DC Current: 0 – 10A (accuracy ±0.5%)
AC Current: 0 – 10A (accuracy ±0.8%)
Resistance: 0 – 250MΩ (accuracy ±5%)
Capacitance: 0 – 99.99mF (accuracy ±5%)
Frequency: 0 – 999.9kHz (accuracy ±0.1%)
Diode Test: Supported
Continuity Buzzer: Supported
Data Hold: Supported
General
Battery: 2000mAh rechargeable lithium battery (3.6V – 4.2V)
Charging: Type-C (5V USB)
Auto Shutdown: 10 – 120 minutes (adjustable)
Weight: 198 g
Material: ABS + TPE
Language: Chinese / English
Additional: Flashlight, lens cover, dual fuse protection, data screenshot storage
Package Contents：
1 x Thermal Imaging Multimeter
1 x Storage Bag
2 x Test Probe Leads
1 x Type-C Charging Cable
1 x User Manual
1 x Packing Box
