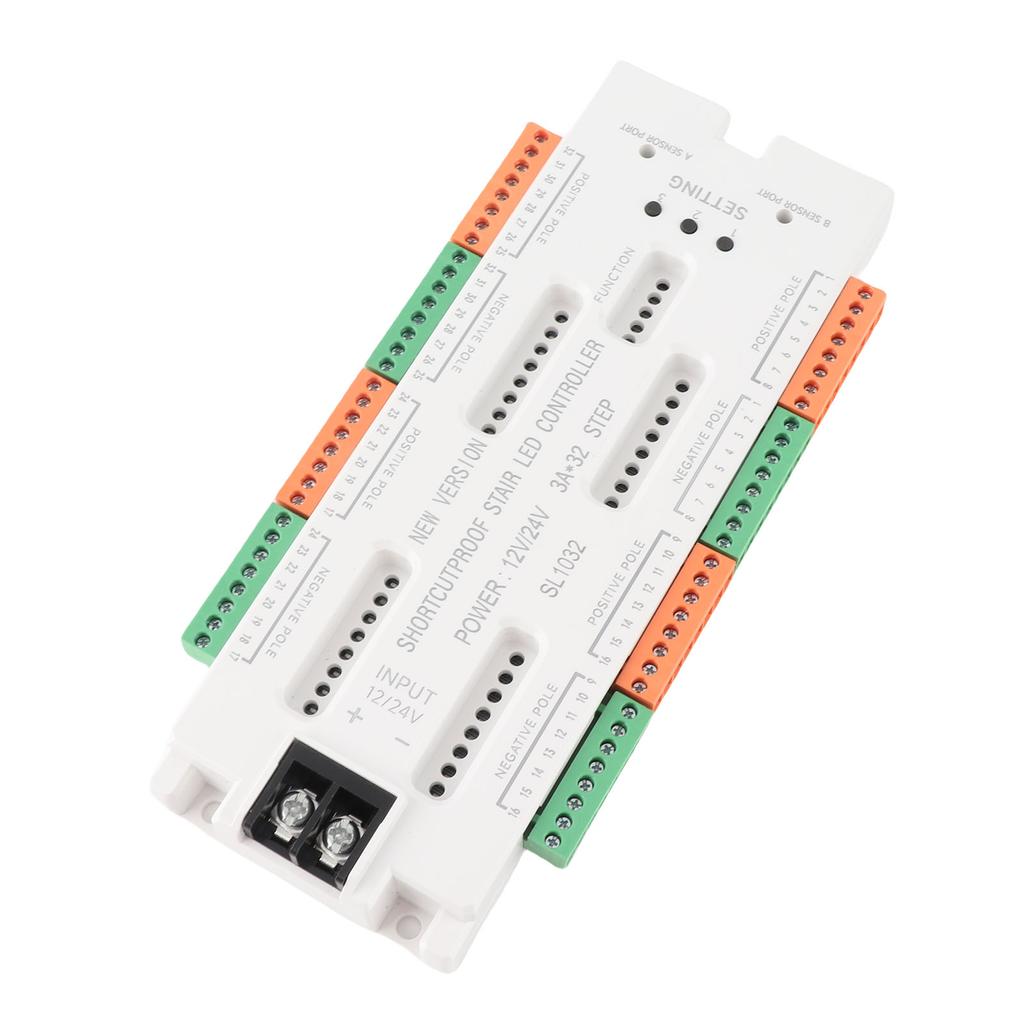

Motion Sensor LED Stair Light Controller Intelligent Automatic Cascaded Staircase Ladder Step Light Controller for Stairway Light

Feature: 1. STAIR LIGHT CONTROLLER: Press and hold for 3 seconds to set the number of stair lights, bright blue color means the serial number light is on. Click the button until all lights are on, up to 32 stair lights can be controlled, press and hold again to confirm. 2. 4 SPEED LEVEL ADJUSTABLE: Touch the button to adjust the speed at which the lights go out on the controller. The higher the four levels, the slower the lights turn on and off. 3. LIGHT CONTROLLER: Great home stair light controller, fully automatic, automatically turns on the light when it senses someone walking and turns off the light when someone leaves. 4. SAFE TO USE: LED stair light controller kit adopts DC12V 24V low voltage input, with anti‑leakage system, stable output, more secure and more reliable to use. 5. STABLE PERFORMANCE: The light controller kit is made of premium flame retardant ABS, stable output and sensitive sensing. Suitable for home, shopping center, store, etc.

Specification: Item Type: Motion Sensor LED Stair Light Controller Material: ABS Weight: Approx. 330g/11.6oz Motherboard Size: Length: Approx. 18cm/7.1in Width: Approx. 8cm/3.1in Cord Length: Approx. 5m/16.4ft (2 Bundles) Ports: 32 Groups Sensing Port: A B

How to Use: Connection method: Insert the LED light bar into the controller port of the corresponding staircase step in sequence.For example: the first step of the lamps and lanterns positive pole inserted in the orange terminal number 1, negative pole inserted in the green terminal number 1; the second step of the lamps and lanterns positive pole inserted in the orange terminal number 2, negative pole inserted in the green terminal number 2; the third step of the lamps and lanterns positive pole inserted in the gift color number 3, negative pole inserted in the green terminal number 3, ...... And so on and so forth, the controller system has 32 ports, according to the actual situation, according to the order of the insertion of the required light bar, the extra ports do not need to pay attention to, later can also be added to the light bar.

Package List: 1 x Serial Number Sticker1 x Instruction Manual 1 x Main Module 1 x Screwdriver 2 x Wire 2 x Sensor Head 2 x Wire Bundle

Note: Manual measurement please allow some error.
