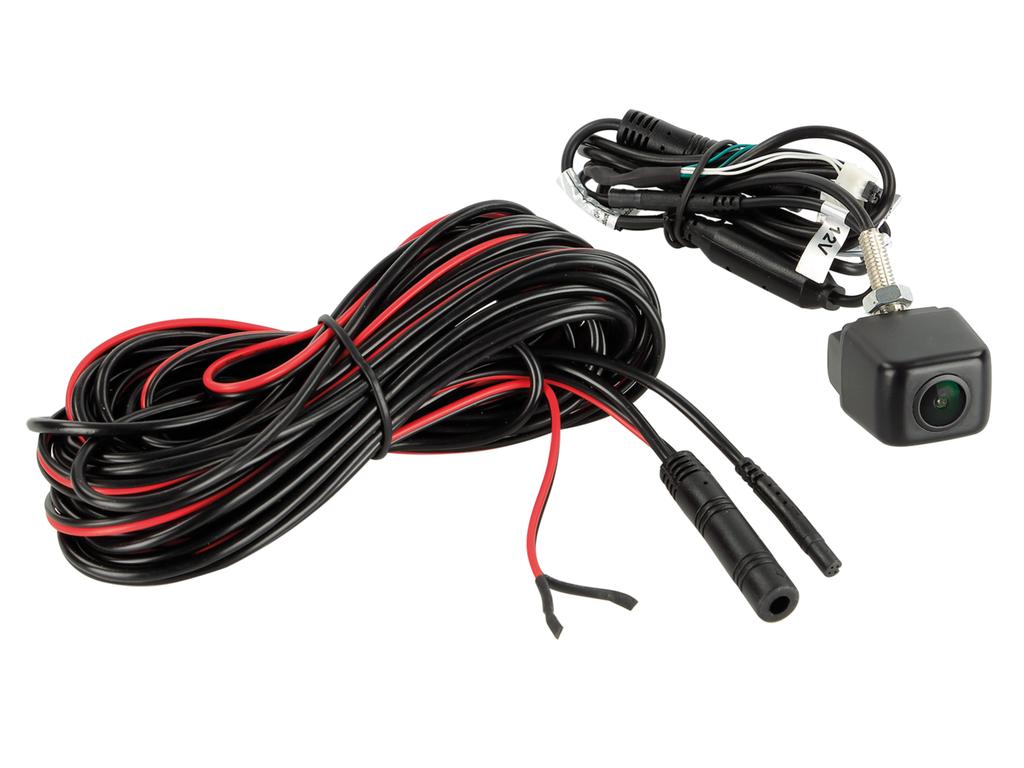

Universal rear view camera with lines, corner - substructure, NTSC

Universal rear view camera (quadrilateral) substructure with guide lines and mirror function. Do not connect without a voltage converter. All ACV cameras are suitable for continuous operation. Product characteristics: Material: plastic with screw-in 8mm tube (cable guide) Color: black Extras: guiding lines and mirror function via jumper Image sensor: 1/3" CMOS Television system: NTSC Effective pixels: 976 x 592 Lens: 1.9 mm / aperture 2.0 Lux: 0.3 Resolution: 700 TV lines Lens angle: 170° + 5° Viewing angle: horizontal 115° vertical 80° + 5° IP rating: IP 68 Terminal: 4-pin mini-plug (male) 5.2 mm Power supply: 12-24V DC + 10% Current consumption: 200mA Operating temperature: -30°C - 75°C Storage temperature: -40°C - 85°C Wiring harness: 1 meter cable with 4-pin mini plug (male) 5.2 mm with 2 jumpers 6.5 m extension cable with 3 meter power cable for connection to the reversing lights insert cable for connection when powered from the device; 4-pin mini plug (female) 10 mm and plug (male) 5.2 mm 0.2 meter power wiring harness with fuse and video connector (RCA) Optional accessories: 771000-6305 5 m extension cable 771000-6310 10 m extension cable 771000-6315 15 m extension cable Universal reversing camera with lines, corner - substructure, NTSC - parking will no longer be a problem! Even such a basic maneuver as reversing can cause a huge number of problems even for advanced users Drivers. Sometimes we can't accurately determine the distance separating us from the curb. If you want to eliminate this difficulty in a simple yet effective way, it's worth exploring the latest technological advancements. A universal reversing camera with lines, corner - substructure, NTSC, will make your life on the road even more enjoyable than before. Investing in convenience is a successful investment! Discover the benefits of reversing cameras! Reversing cameras significantly simplify our lives on the road. By connecting the device to an LCD screen, you get a precise image of the rear of your vehicle, which can reduce reversing difficulties to an absolute minimum. A universal reversing camera with lines, corner - substructure, NTSC – ensure comfort when reversing! Simple maneuvers can pose a huge challenge even for the most experienced drivers. Of course, there are many technological innovations on the market that provide us with even greater driving comfort. Cameras are probably the most useful solution. Reversing cameras are a great option, as they allow you to easily determine the distance to an obstacle behind the vehicle. If you're interested in purchasing such a device, consider our offer. This universal reversing camera with lines, corner substructure, and NTSC ensures high functionality and efficiency! Safety first! Our website also offers many options that will significantly improve your driving safety. Make your journeys even more enjoyable!
