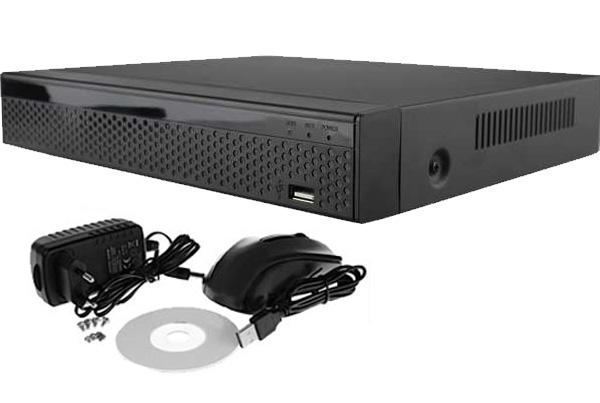

RTX Lsn9816d 16 Channel Network Recorder

RTX LSN9816D 16-channel network recorder for 5MPX IP cameras Support for up to 16 IP cameras up to 5MPX Recording modes: manual/timer/motion detection Resolution modes: 5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480) Connection for TV ( HDMI ) and monitor ( D-SUB ) Network connection LAN (RJ45) Fast processor ARM Cortex Supports up to 8TB (SATA2/SATA3 Image Compression H.264/H.265 Protocol Support ONVIF Multiple ways to control the DVR: IE, CMS, smartphone/tablet Menu in Polish (and 20 others) Inputs and outputs: SATA (internal): hard drive (up to 8TB 2.5" or 3.5") 2x USB 2.0: mouse, pendrive for archiving Audio IN: Microphone for sound recording Audio Out: Sound playback VGA: Monitor HDMI: TV RJ45: LAN network DC IN: Power supply 12V/2A Bitvision free app for iOS and Android live preview of any number of cameras from any locations preview of saved recordings local recording videos and photos on your smartphone sharing the preview with other users Technical specifications: Processor: ARM Cortex Operating system: Embedded LINUX Number of channels: 16 (IP) Inputs / Outputs: 1 VGA, 1 HDMI, 1 LAN, 2x USB, Audio IN/OUT Motion detection: Yes, definable zones E-mail alarm: Yes VGA Resolution (for monitor): 1024×768, 1280×720, 1280×1024 HDMI Resolution: 4K(4096x2160) 1080P(1920×1080) 720P:(1280×720) Multi-view: 16/8/4/1window Digital Zoom: Yes OSD Display: Title, Time, Record, Detection Compression: H.264, H.265 Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) Recording Speed: PAL :4K@8x25fps,5MP@16×25fp,4MP@16x25fp,3MP@16×25fp,1080P@16×25fp, 960P@16×25fp,720P@16×25fp, D1@16×25fp NTSC: 4K@8x30fps,5MP@16×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp Recording modes: schedule, motion detection Local playback: 1ch 8Mpx, 4ch 1080P Remote playback: Yes Recording search: All, Channel, Time, Date, Detection Playback functions: Play, Stop, Pause, Rewind, Fast/Slow playback Backup media: USB memory LAN Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface Network Protocol: HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS Onvif: Yes, version 2.4 Browser: IE8-11, Google Chrome , Firefox P2P Support: Yes, Bitvision Mobile App: for iPhone / iPad, Android HDD Support: up to 8TB SATAII/III Language Support: Polish, English, German, Italian, French, Russian, Spanish, Arabic, Dutch, Czech, Romanian, Hungarian USB Interface: 2xUSB 2.0 Power supply: DC12V/2A Operating temperature: -10~+50/10~90% Dimensions: 260*215*43(L×W×H) (mm) Weight : 1.5KG (without HDD) Package contents: Recorder Mouse 12V/2A power supply Screws for mounting the disk User manual
