ANENG RT01 Car Relay Tester Voltage Tester Universal 11-25V Automotive Car Battery Check LED Indicator Light Electronic Relay Diagnostic Tool
ANENG HD02 Halogen Leak Detector R22/R32/R134a Gas Detector Analyzer Rechargable Refrigerant Gas Air Conditioning Tester Tools
a.1 .ANENG RT01 Car Relay TesterIntroduce:
RT01 can quickly detect whether your relay is normal.It is easy to use and suitable for general-purpose automotive relays on the market.Durng testing, it needs to be connected to a 11V-25V battery in the car. The tester will automatically detect the foot position,the time of action release, and the consistency of the relay in each test stage. lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.
RT01 Car Relay Tester Specification:
Product Model:RT01 Relay Detector
Applicable pins:5 pins/4 pins
Battery detection:11V~ 25V voltage
Compatible Ampere: 40A/60A/70A
Applicable coil resistance:≥20Ω
Use power:Connect car battery power supply
Detection prompt light:lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.
Alligator clip opening size:2.1cm/0.82inch
Alligator clip length:42cm/16.54inch
Digital display bright screen:Yes

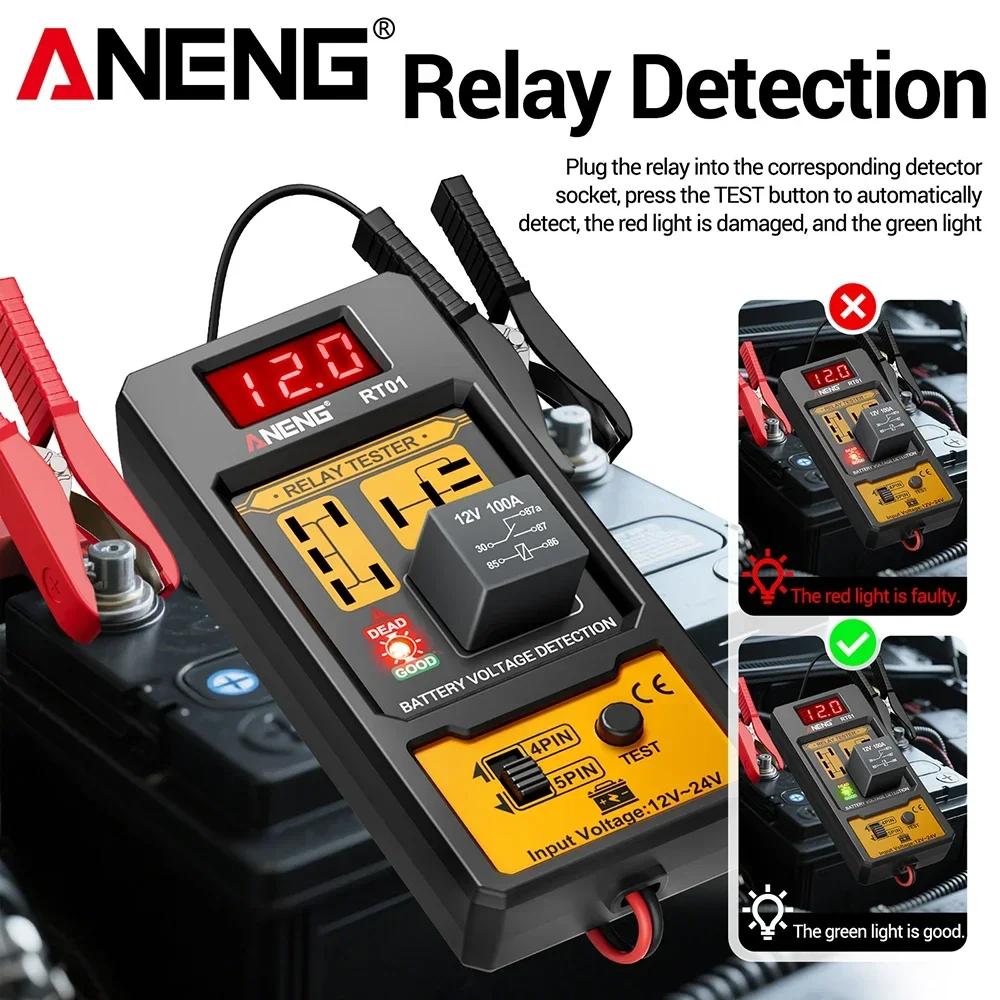

RT01 Car Relay Tester Operating instructions:
1）Clip the alligator clip of the tester on the car battery the black clip on the negative electrode and the red clip on the positive electrode.
2）When the red LED light is on, it indicates that the tester can start testing.
3）Check the relay before testing. lf it is 4 feet, choose a 4-foot socket on the tester; if it is 5 feet, choose a 5-foot socket on the tester.
4）Plug the relay into one of the three sockets
5）Press the "Test" button
6）The tester will automatically detect the pin position of the unknown relay. When the relay is not a universal relay on the market or is damaged, the tester will turn on a red LED light.
7）When the foot position is set correctly, the tester will open and close 10 times to detect the release time of the action. When the detection time is too long, the tester wil light up the red LED light.
8）When the tester has detected the action release time 10 times, start to detect the consistency of the relay. When the test is OK, turn on the green light, and if the test is not OK, turn on the red light.
9）After the test is complete, remove the alligator clip from the battery and remove the relay from the tester.
RT01 Car Relay Tester Attention:
1.The car battery must be a 12V battery, and the voltage of the battery must be between 11V and 25V.
2.The applicable coil resistance should preferably be above 20Ω.
a.2 .ANENG HD02 Halogen Leak Detector Product Overview:

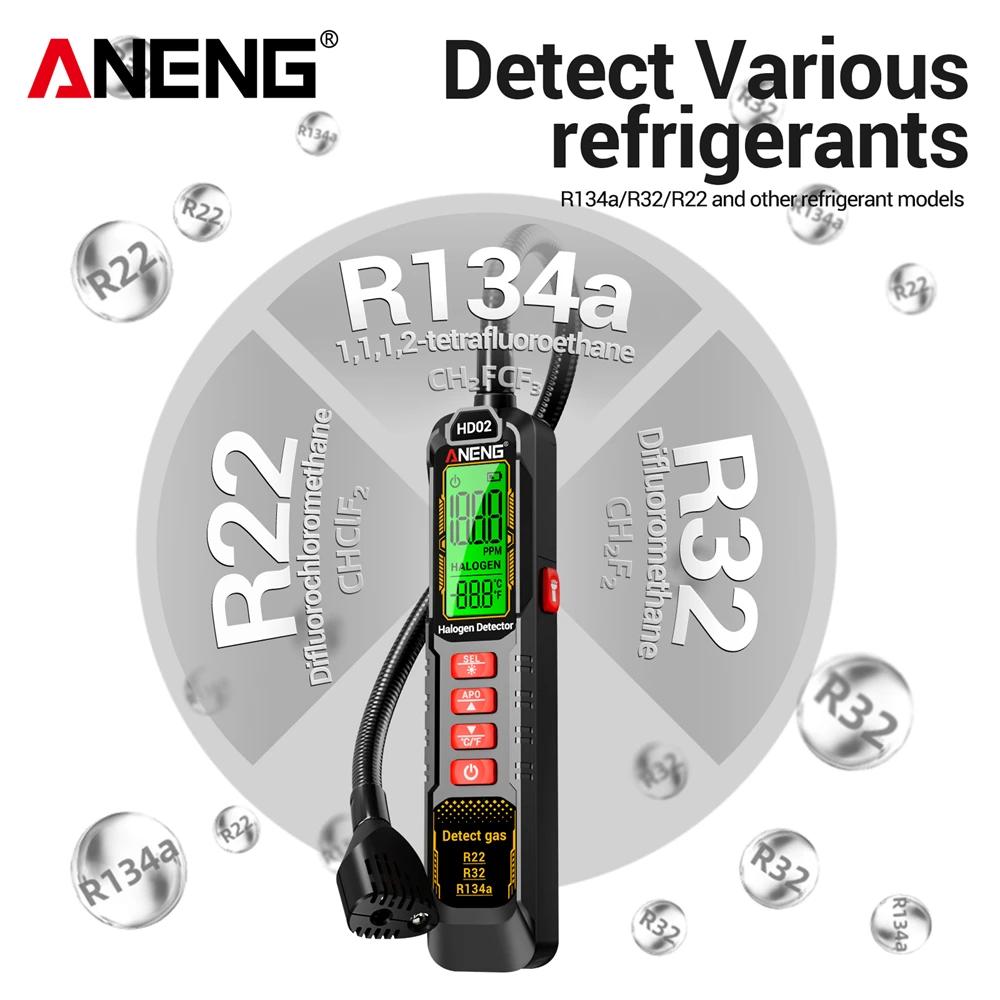

Compatible with multiple types of refrigerants, with a wide range of applications:
Clearly support leak detection for three mainstream refrigerants, R22, R32, and R134a, covering refrigerant types for common refrigeration equipment such as household air conditioners, automotive air conditioners, and refrigerators, without the need for separate leak detection tools for different devices.
Professional halogen leak detection function, precise detection:
As a specialized halogen leak detector, it can capture halogen refrigerant leakage signals in a targeted manner, quickly locate refrigerant leakage points in air conditioning, refrigeration systems, etc., assist in equipment repair and maintenance, and avoid refrigerant waste and system failures.
Rechargeable design, more convenient and economical to use:
No need to frequently replace disposable batteries, supporting charging and reducing long-term usage costs; At the same time, it avoids detection interruptions caused by battery depletion, ensuring the continuity of maintenance and inspection work.
Strong scene adaptability and clear tool attributes:
Specially designed for refrigeration systems (such as air conditioning), it is a core detection tool in air conditioning installation, maintenance, and daily upkeep, which can directly solve the practical needs of refrigerant leakage investigation.
HD02 Attention:
1. Before using the product, please read the manual carefully to maximize its performance.
2. Do not use instruments in flammable or explosive environments.

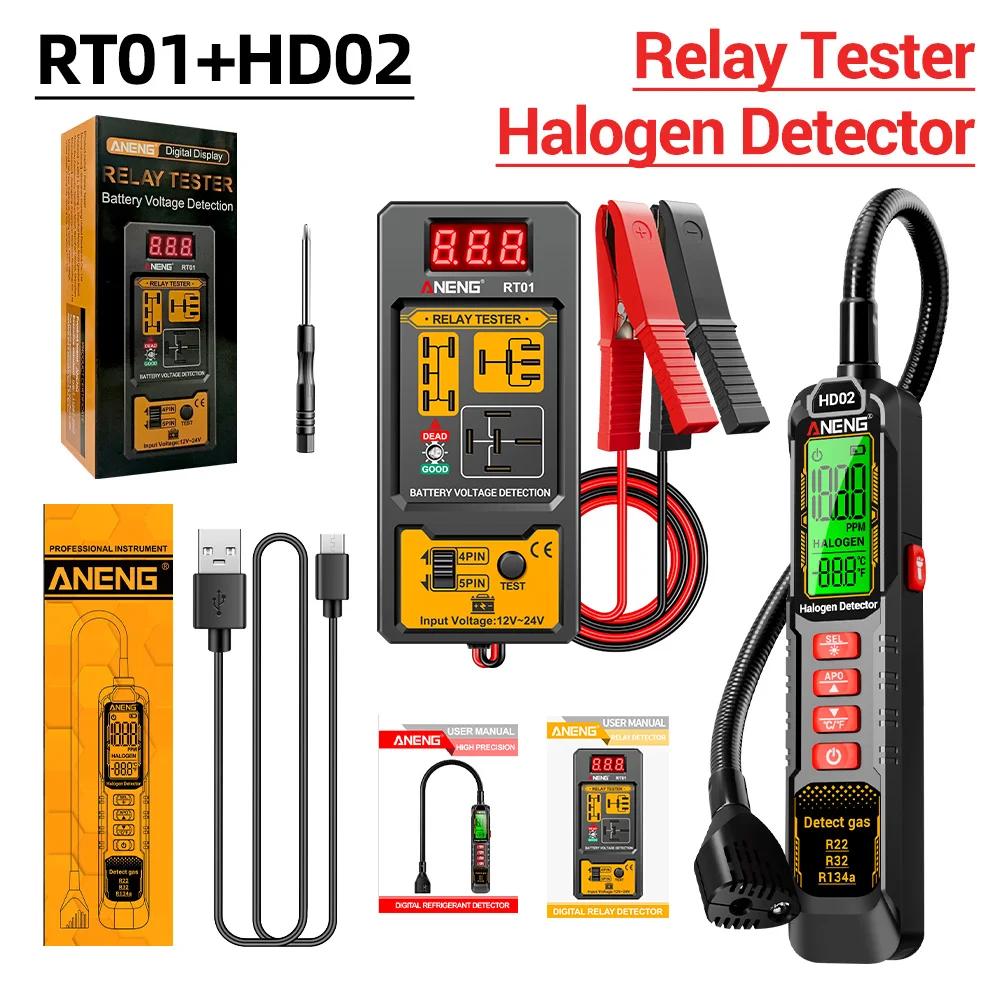

Package:
RT01 Car Relay Tester *1
HD02 Halogen Leak Detector*1
