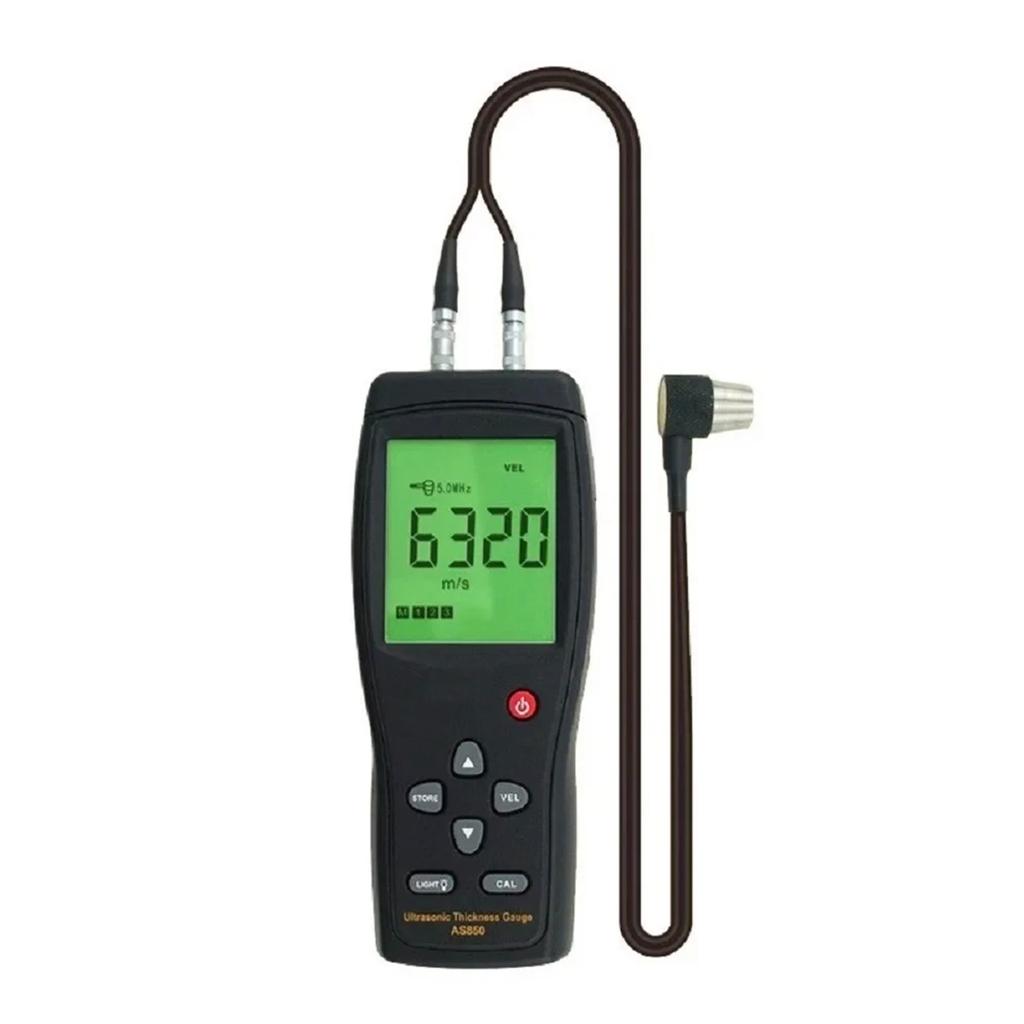

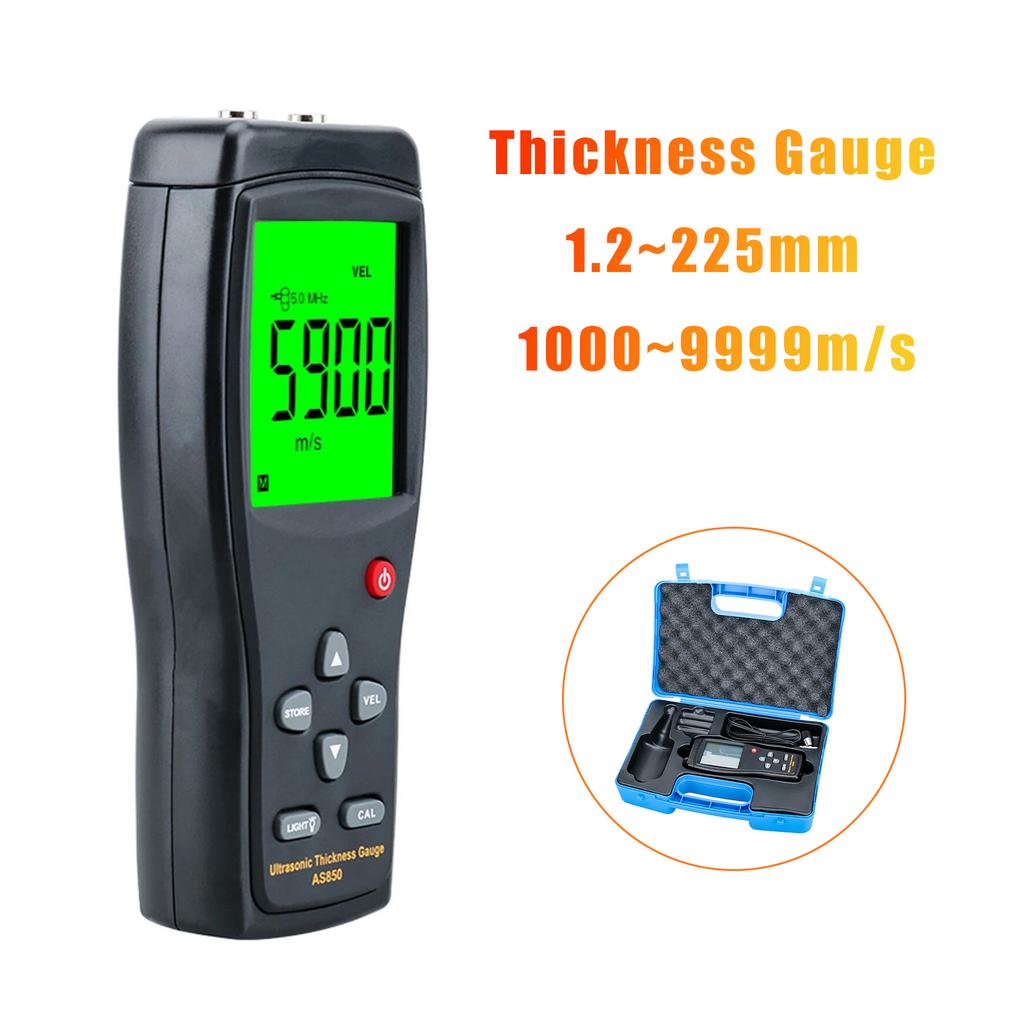

AS850 Portable Digital Ultrasonic Steel Plate Thickness Gauge 1000~9999m/s

AS850 Portable Digital Ultrasonic Steel Plate Thickness Gauge 1000~9999m/s

Feature: 1: Auto calibration to assure the accuracy. 2: Sound velocity measurement. 3: Largr LCD display for easy readout. 4: More than 10000 times long life keys. 5: Low battery indication and auto power off. 6: 12 sound velocity for different material which is also adjustable. 7: Make a quick adjustment for the sound velocity / thickness, and a quick recall to the stored data. 8: The unit has a unique memory that retains all of its settings even when the power is off 9: Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not. 10: 10 thickness measurement storage and recall function available, which facilitates the height work or working in wild area. 11: Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.

Specifics: Condition: 100% Brand New Type: Thickness Gauge Model: AS850 4-digital LCD display Measuring range: 1.2~220mm(steel) Minimum limit for tube measuring: Φ20*3mm (steel) Accuracy: ±(1%H+0.1)mm,H denotes the measured thickness. Sound velocity range: 1000 to 9999 m/s Working frequency: 5MHz Minimum display unit: 0.1 mm Mininum limit for tube measuring(steel): 20 * 3.0mm(steel) Sound velocity Range: 1000~9999m/s Measuring sound velocity with a given thickness: measuring range: 1000 to 9999 m/s. When the given thickness >20mm, the accuracy is +/-5%; when the given thickness <20mm, the accuracy is +/-1mm/H*100%. Operation temperature: 0℃ to 40℃ Relative humidity: <90%RH Hardware/workpiece/material temperature: <60℃ Power supply: 1.5V AAA * 3 PCS (Not include) Operation current: Normal operation current 50mA With Backlight turn on current 120mA Stand-by current: 20uA

Note: 1.Please allow 1-3mm difference due to manual measurement. 2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included: 1 * Ultrasonic Thickness Gauge 1 * Φ10mm 5MHz Transducer 1 * 4mm Sampling Block 1 * Storage Box 1 * User Manual
