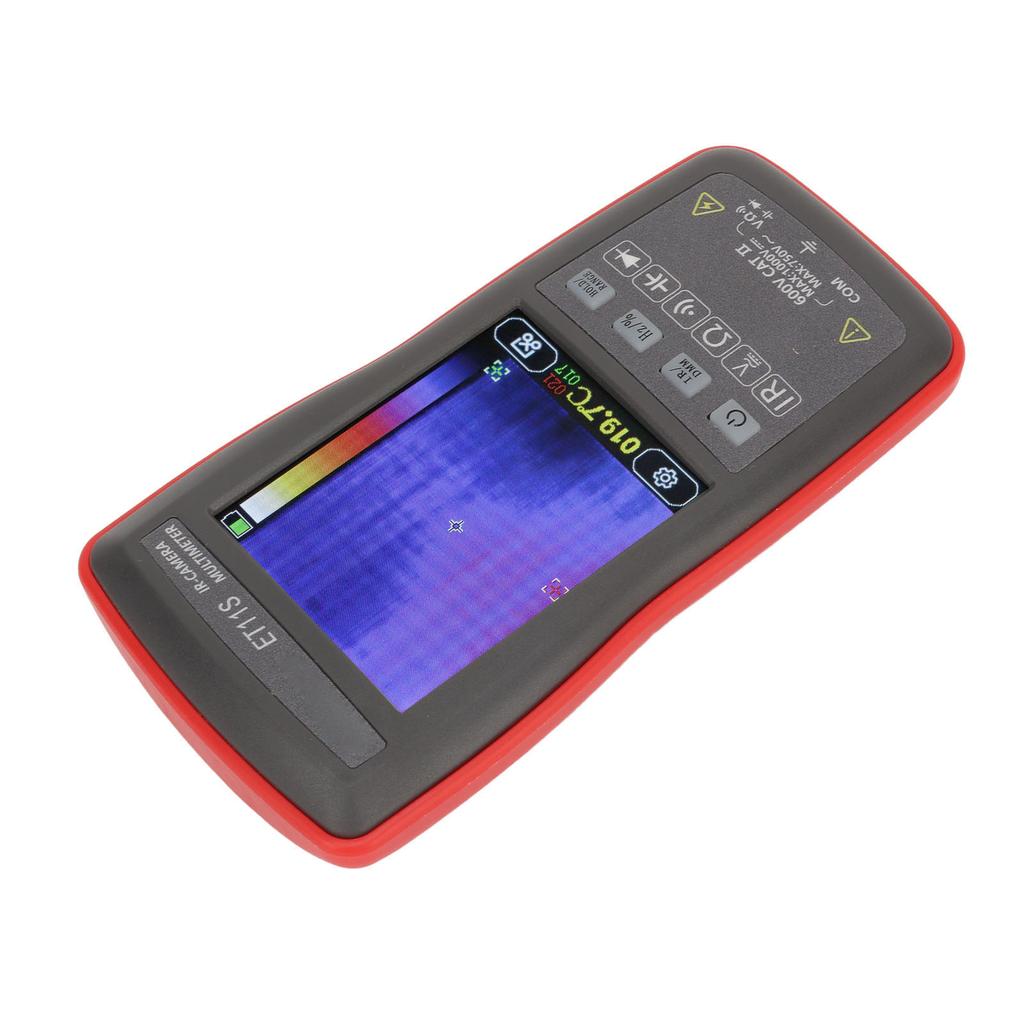

Thermal Imager Multimeter 2 In 1 4000 Counts 32x24 Resolution Thermal Camera Voltage Current Resistance Capacitance Tester

Feature: 1. 2.8 Inch Resistive Touch Screen: This thermal imager uses a 2.8 inch color display, with 320x480 high resolution, resistive touch screen operation, with one key function. 2. 2 In 1 Design: This digital multimeter has a 2 in 1 design, featuring a handheld thermal imaging camera with high thermal imaging pixels, 4000 count digital multimeter functionality, and support for dual mode switching between thermal imaging camera and multimeter. 3. UFPA Sensor: This thermal imaging device uses a UFPA sensor with an image acquisition frequency of 6Hz, (768) thermal imaging pixels of 24 x 32, field of view (FOV) of 55°(H) x 35°(V), emissivity is adjustable from 0.1 to 0.99(default 0.95),temperature range of ‑40℃ to 300℃. 4. Multifunctional: This Ohm Volt Amp meter is multifunctional and supports AC or DC voltage, resistance, capacitance, diode, on and off test, frequency, duty cycle measurement. 5. Excellent ABS Material: This thermal imager multimeter is made of excellent ABS material for the shell, which is sturdy and wear resistant, not easy to be damaged, and has a long service life.

Specification: Item Type: Thermal Imaging Digital Multimeter Thermal Imaging Parameters: Model: ET11S Sensor: Uncooled Focal Plane Image Capturing Frequency: 16Hz Thermal Imaging Pixels: (768)24 x 32 Display Image Resolution: 187 x 251 Field Of View (FOV): 55°(H) x 35°(V) Emissivity: 0.1-0.99 Adjustable, Default 0.95 Measurement Temperature Range: -40°C-300°C Mode: Auto Gain Color Palette: Iron Red, Rainbow Measurement Temperature Error: ±2℃ or ±2% Display Temperature Accuracy: 0.1℃/0.1℉ Multimeter Parameters: DC Maximum Input Voltage: 1000V Maximum AC Input Voltage: 750V Resistance Maximum Measured Resistance Value: 40MΩ Capacitance Maximum Measuring Value: 100uF Duty Cycle Measurement Range: 0.1%-99.9% Diode Measurement Range: 0V-1.5V Maximum Resistance Value of On And Off Detection: 30Ω Display Number: 4000 counts Updated About 3 Times Per Second Other Parameters of Device: Display Screen: 2.8 Inch 320 x 480 Resolution Touch Screen: Resistive Touch Screen USB Interface: Type C USB Storage Capacity: 3.5MB Image Format: BMP File Battery: 3.7V Lithium Battery 1000mAh x 1 ( Shipped With Built In Battery ) Storage Temperature: -20-60℃ (-4-140℉) Operating Temperature: 0-50℃ (32-122℉) Operating Humidity: Size(LxWxH): Approx. 134 x 69 x 25mm / 5.28 x 2.72 x 0.98in

How to Use: Check the manual for applicable.

Package List: 1 x Thermal Imaging Multimeter 2 x Test Leads 1 x USB Cable 1 x Manual
