Feature:

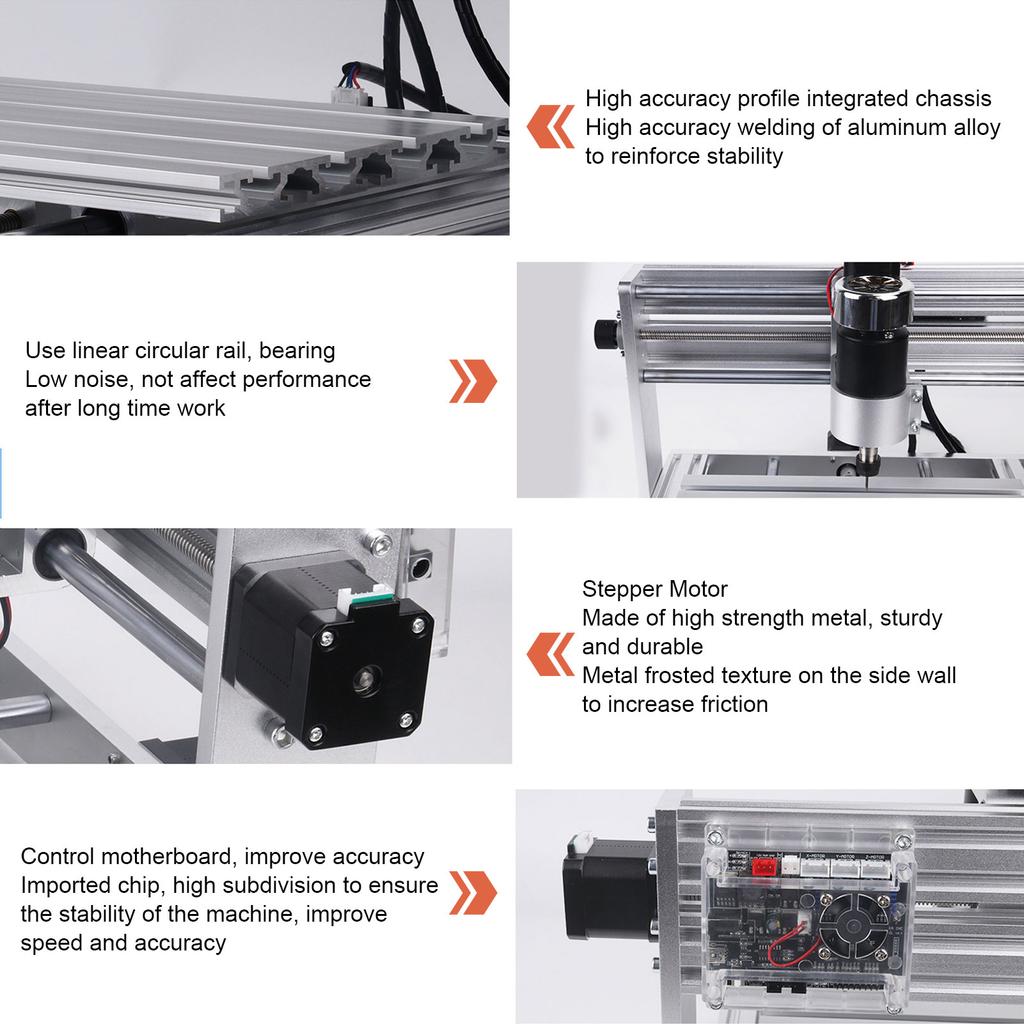

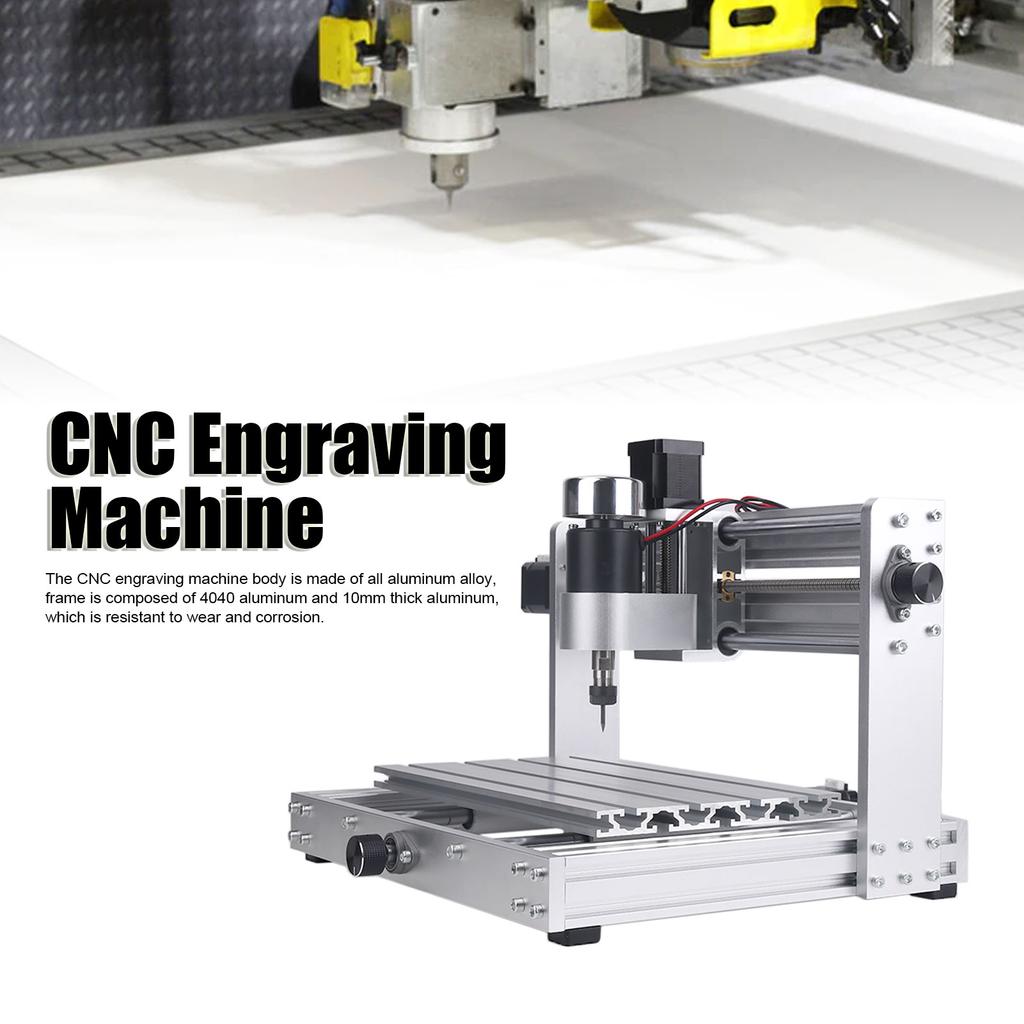

1. ALUMINUM MATERIAL:The CNC engraving machine body is made of all aluminum alloy, frame is composed of 4040 aluminum and 10mm thick aluminum, which is resistant to wear and corrosion.
2. WORKING STROKE: The effective working stroke is 300 x 180 x 40mm, and 2 handwheels are added, allowing you to freely adjust the position of the X axes and Y axes.

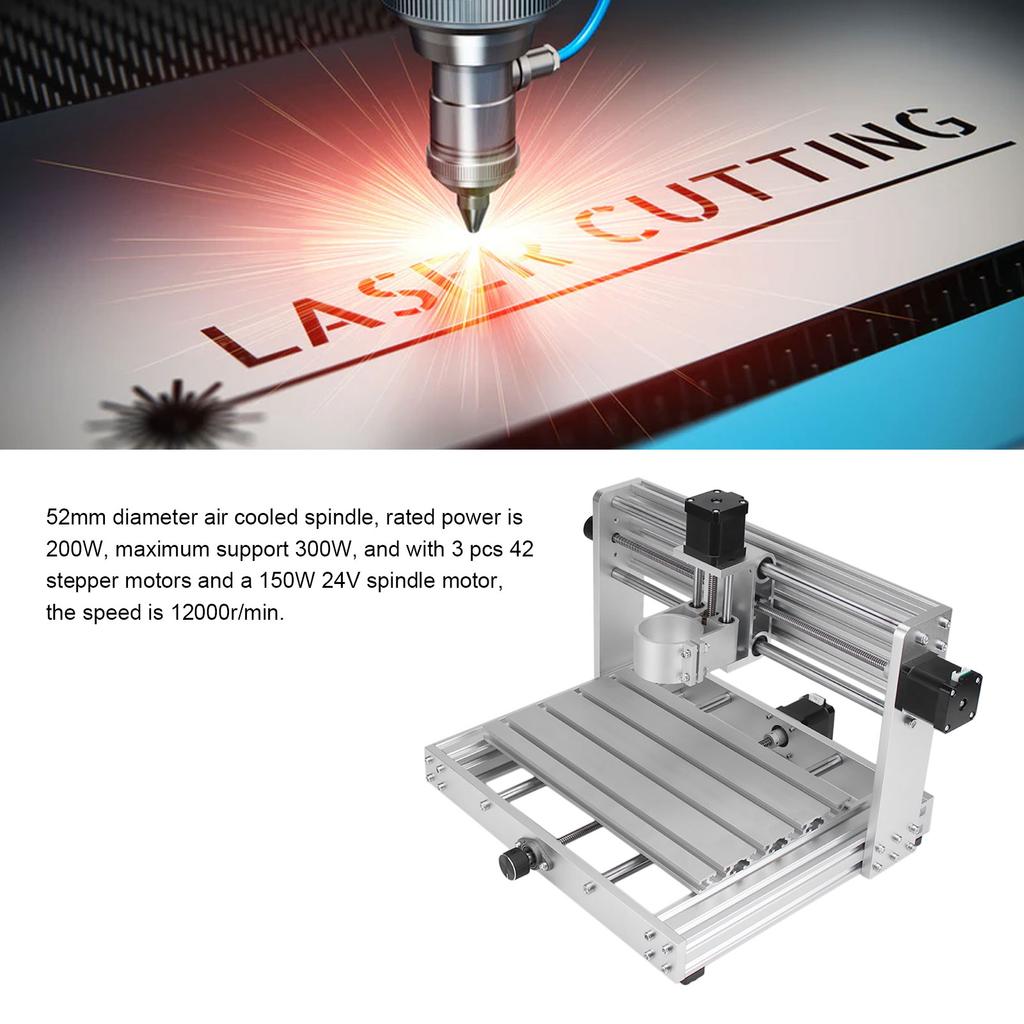

3. SPINDLE AND MOTOR: 52mm diameter air cooled spindle, rated power is 200W, maximum support 300W, and with 3 pcs 42 stepper motors and a 150W 24V spindle motor, the speed is 12000r/min.
4. PROCESSING MATERIAL: Portable CNC cutting machine that can cut and engrave wood, plastic, acrylic, PCB, PVC, copper and soft aluminum, stone, etc., with a wide range of applications.
5. GOOD COMPATIBILITY: The engraving machine is compatible with a variety of system software, directly import JPG, BMP, PNG, DXF format files for engraving, efficient and reliable.
Specification:
Item Type: CNC Engraving Machine
Control Software: For GRBL Control
Rack Material: All aluminum alloy
Effective Stroke: Approx. 300 x 180 x 40mm / 11.8 x 7.1 x 1.6in
Size: Approx. 400 x 330 x 240mm / 15.7 x 13 x 9.4in
Drive Motor: 42 stepper motor 1.68A 0.55N.M
Turning Screw: T8 lead screw
Support System: For Window XP, for Win7, for Win8, for Win10, for Linux
Engravable Materials: Plastic, wood, acrylic, PVC, PCB, copper and soft aluminum, stone and other materials
Spindle: Spindle motor 24V 150W 12000rpm
Machining Instructions:
Laser: G CODE, JPG, Dxf File
CNC: G CODE, TAB, NC, NCC file
Power Adapter:
Output: 24V 10A
How to Use:
Install and use directly

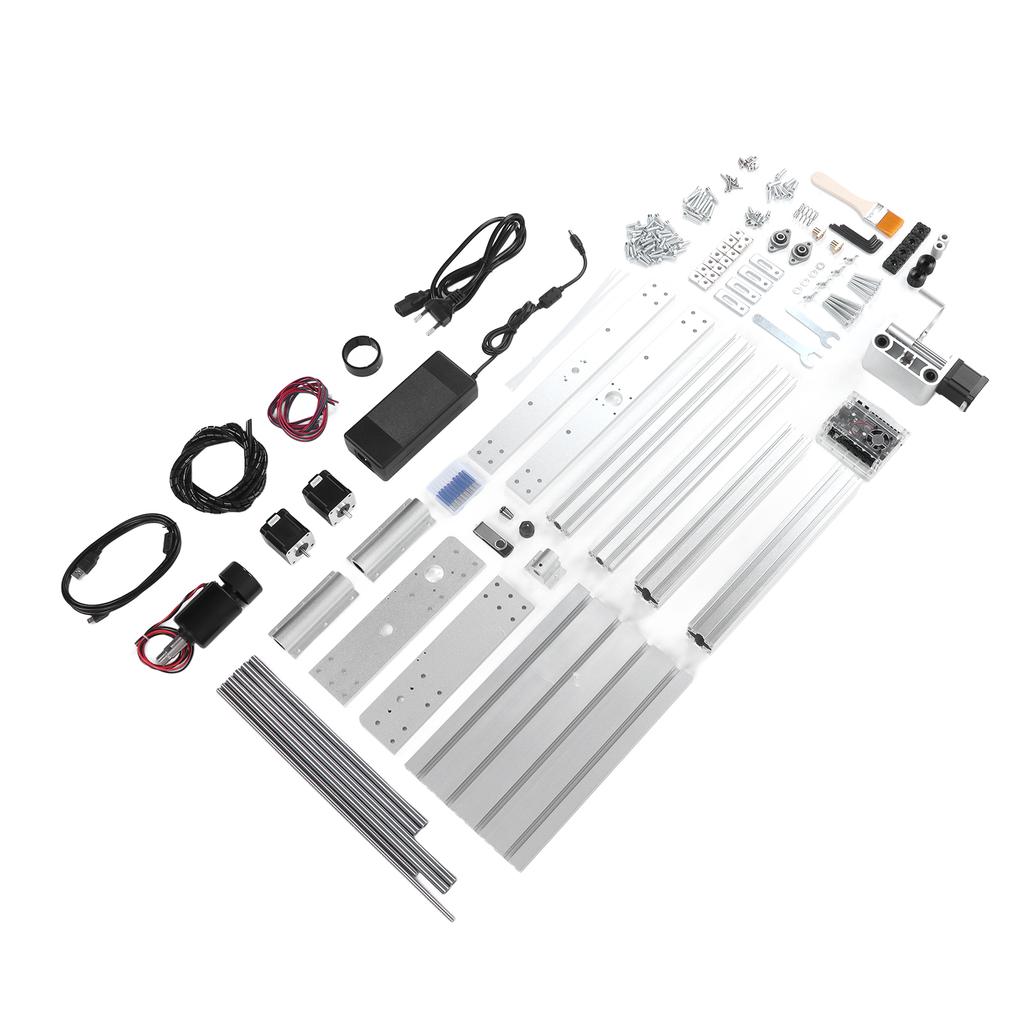

Package List:
8 x Aluminum Profiles
1 x Base
2 x Slide Blocks
4 x Linear Guide Rails
2 x Screws
2 x Motors
1 x Spindle
1 x Host
1 x Y Axes Nut Holder
1 x Winding Tube
1 x Spindle Washer
10 x Milling Cutters
3 x Motor Wires
1 x Power Adapter
1 x Power Cord
1 x Motherboard
1 x USB Cable
2 x Springs
8 x Base Fixing Screws
4 x Base Fixing Metal Plates
4 x Base Fixing Nuts
4 x Gaskets
1 x U Disk
6 x Hex Wrench
2 x Wrench
1 x Brush
1 x User Manual
10 x Cable Ties
4 x Foot Pads
2 x Knobs
2 x Bearing Blocks
2 x Copper Nuts
2 x Coupling Fixing Screws
1 x Chuck
1 x Collet Nut
5 x Accessories Packs
10 x Screws
6 x Nuts
