-Practical Use: Very suitable for off bed monitoring, the force sensitive resistor can also be used on cushion, chair, mattress and so on.
-Sensitive Film: The flexible pressure sensor can sense weak dynamic or static force, which also has a wide pressure sense range of 20g-10kg
-The Structure: Top layer has flexible film and a pressure sensitive layer, and bottom layer has a flexible film and a conductive circuit.
-Pressure Sensor: Thin and flexible, the film pressure sensor has ultra low power consumption and quick response, very reliable in working.
-Easy to Install: Comes with a compact size and a light weight as well, the convenient installation can be quickly completed within minutes.
Specification:
Item Type: Thin Film Pressure Sensor
Model: RP-L-800
Material: Polyester
Pressure Sensing range: Approx. 20g-10kg

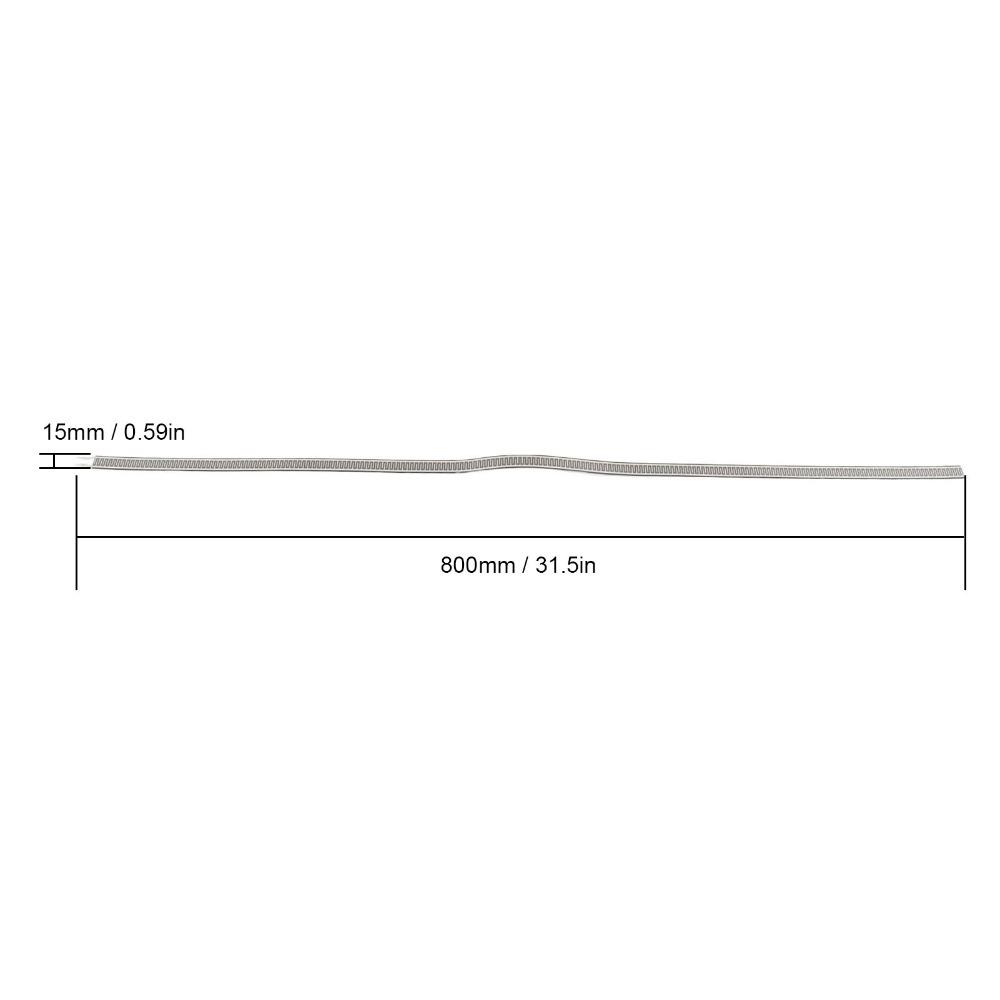

Product Size: Approx. 800 x 15mm / 31.5 x 0.59in
Color:As shown in the figure
Trigger Force: Approx. 20g / 0.71oz, trigger when the default resistance is less than 200kohm.
Thickness: Approx. 0.4mm / 0.02in
Style: Thin and flexible.
Resistance When not Triggered: Greater than 10Mohm.
Activation Time: Less than 0.01S.
Hysteresis: +15%,, 3000g force
Response Rime: <10ms
Electromagnetic Interference EMl: no
Electrostatic Discharge EDS: Insensitive
Drift: <15%, 3 kg / 6.61 lb (approx.) force load 24H.
Product Description:
1. RP L resistive pressure sensor is a flexible film sensor whose resistance value decreases with the increase of the pressure on the sensing area. A single sensing area sensor is equivalent to a dual port variable resistor whose resistance value is controlled by the pressure, which is also equivalent to a switch with a certain threshold value. The valve value is determined jointly by the pressure and equipment parameter settings.

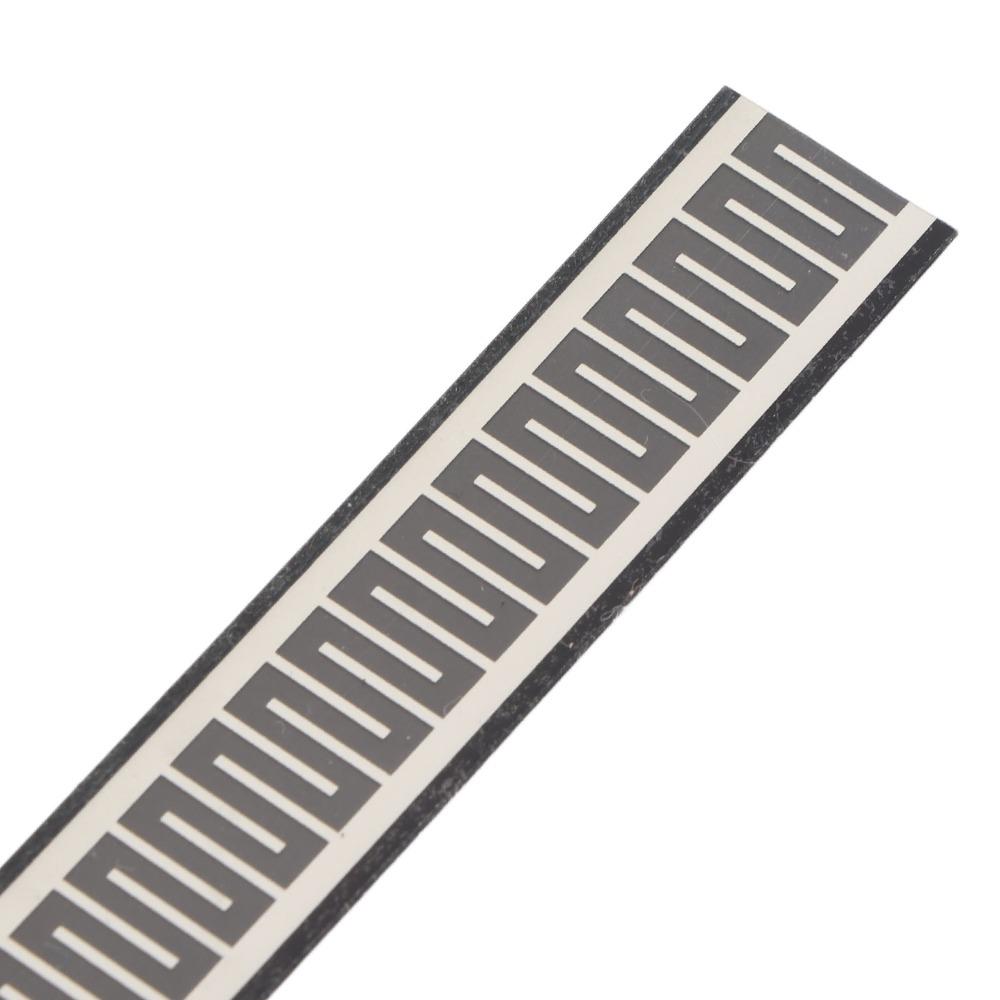

2. RP L flexible film pressure sensor is made of polyester film with excellent comprehensive mechanical properties. The top layer is a flexible film and a pressure sensitive layer compounded on it. The bottom layer is a flexible film and a conductive line compounded on it. Both are bonded and isolated by double sided adhesive tape. When the sensing area is under pressure, the lines disconnected at the bottom layer will be connected through the pressure sensitive layer at the top layer. The output value of the port resistance changes with the pressure.
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
Package List:
1 x Thin Film Pressure Sensor
