Label:Yes
Fuse: 10A
Color: Black,Red
Size: Meter Box Approx. 5x3x3.5cm(1.97x1.18x1.38in)
Black Clip Wire Length: Approx. 30cm(11.81in)
Type: Automotive Circuit Diagnostic Tool
Standby Current Reference: Common vehicle standby current is generally 20-50mA, but the value varies by model
Application: Vehicle Battery Circuit Diagnostics
Brand New and High Quality
Red Clip Wire Length: Approx. 40cm(15.75in)
Display Start Level: 30mA
Black Wire Length: Approx. 30cm(11.81in)

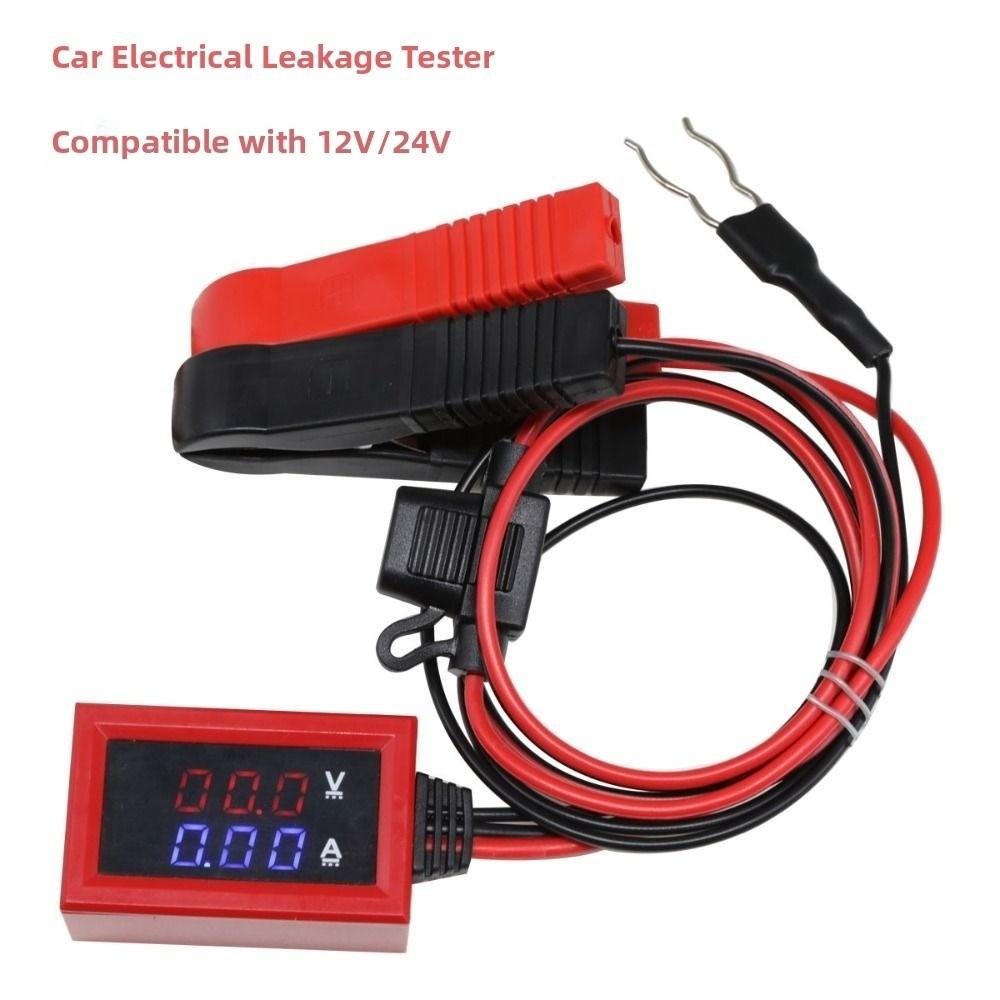

Name: Vehicle Battery Leakage Detector
Clip Length: Approx. 7.5cm(2.95in)
Material: ABS
Package Includes: 1PC Vehicle Battery Leakage Detector
Features:
1. Digital Current and Voltage Display: Provides real-time battery voltage and current readings for clear electrical system assessment.
2. Parasitic Draw Detection: Helps identify dark current, slow discharge, and unwanted battery drain when the vehicle is parked.
3. Circuit Troubleshooting: Supports the inspection of electrical faults that may cause starting problems or unexpected battery discharge.
4. Clip Connection Design: Spring clips provide convenient connection to the battery post and terminal clamps during testing.
5. Replaceable Fuse: The built-in fuse can be replaced with one of the same specification if damaged.
How to Use
1. Stop the vehicle, turn off the engine, remove the key, open the hood, lock the doors, and wait for the vehicle to enter sleep mode.
2. Connect the spring clip to the negative battery post, the black clip to the negative terminal clamp, and the red clip to the positive terminal clamp.
3. Loosen the negative terminal clamp nut, then disconnect the negative terminal clamp from the battery post
4. Read the displayed measurement after the vehicle has entered sleep mode.
5. After testing, remove the detector first, then reconnect the negative battery terminal to reduce the risk of sparking.
6. Do not start the engine during testing. If the fuse is damaged, replace it with a fuse of the same specification.
Tips:
1. Due to the light and monitors effect, colors may have lightly difference
2. Please allow slightly size errors due to manual measurement. Thank you for your understanding!
