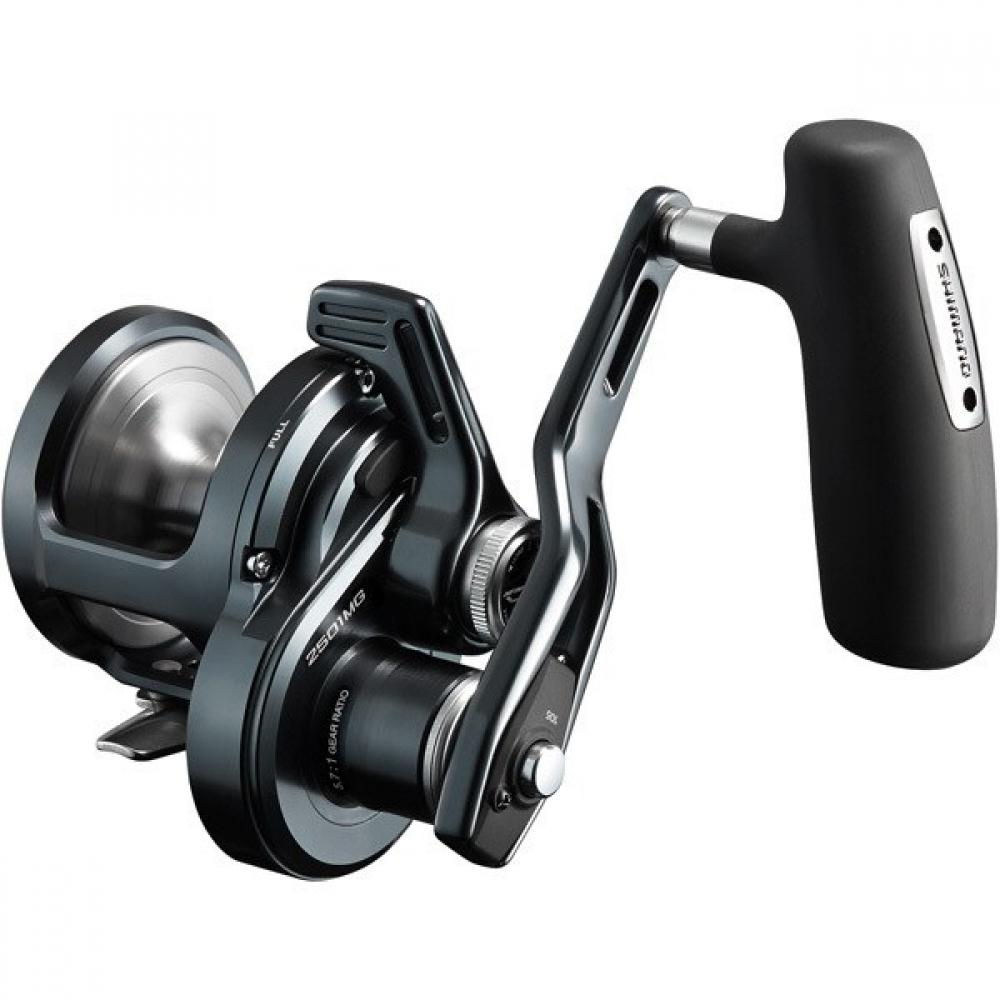

Shimano 26 Osia Jigger Ld 2501mg Double Shaft Reel 048653

Product Overview of SHIMANO SHIMANO 26 OSHIA JIGGER LD 2501MG DOUBLE SHAFT REEL 048653

■Lever drag for jigging A new move in a jigging strategy to challenge giant fish.

■Lever drag for jigging A new move in a jigging strategy to challenge giant fish. Of course, the drag operation of lever drags is visually easy to operate, and the drag performance that makes it difficult for heat to drip is perfect for tuna that fights a lot for a long time. Due to the structure of the lever drag, the higher the drag force, the heavier the steering wheel rotation, but the newly developed infinity drive structure reduces the steering wheel rotation weight during high dragging by 30% compared to the previous one. It is a lever drag reel packed with the attention of the Osiaziger series, such as a new large T-handle knob that confronts large fish, a 105mm cold-forged handle, a frame shape that makes it easy to summing, and a drag lever that is particular about operability. The included drag cam is also compatible with light lines.

Rotational torque is up to 30% lighter than conventional structures. Break the common sense of lever drags with the newly developed double drag structure.

Jigging for tundra and yellowtail has become familiar, and it is now possible to aim for the 50kg class. What is required of reels in fights with large fish is not only line capacity, but also the presence of a reliable drag. The lever drag system adopted in the Osia Jigger LD has many advantages, such as being able to easily produce high drag values due to its structure, and drag adjustments can be performed instantaneously and accurately, but on the other hand, it also has the weakness that steering wheel rotation becomes heavier as the drag force is increased. In order to minimize this disadvantage, the Osia Jigger LD is equipped with an infinity drive on the lever lag. By using a newly developed double drag structure with 2 drag washers, we succeeded in producing high drag force with low thrust. Compared to conventional models of the same size, rotation torque that is up to 30% lighter has been achieved. This lightness of rotation, which is close to the star drag system, is the advantage of the Osia Jigger LD. If you compare it to a conventional lever drag, you can immediately feel the difference. Furthermore, the drag lever uses a cold-forged lever designed specifically for the Osia Jigger LD. The high rigidity and well-thought out shape enable smoother drag operation.

Max drag force 20kg Maintains stable drag force without heat build-up. The maximum drag force of the Osiajiger LD is 20 kg. This is within the range where spool free comes out, and it means drag force in the FULL position when the preset is tightened to the maximum. Also, compared to star drags, high-durability drags, which are less likely to cause heat to drip, reduce the drop in drag force by about 25% compared to the Osiajiger 2000 under certain conditions. It is easy to maintain stable drag power even when interacting with large fish that overuse drag, and supports safe fights.

Achieves high drag power in a compact body. The Osia Jigger LD, which adopted the lever drag system, achieves a maximum drag force of 20 kg, contrary to its body size which is thinner than the Osia Jigger 2000. The largest size of the Shimano jigging reel with the star drag system surpasses even 18 kg of the Osia Jigger 4000. Since it has a compact body, it is easy to palm, and it is an overwhelming advantage for fishing where you keep operating a heavy jig all day long.

Special design for jigging that shines everywhere.

The special design for jigging, which is particular about details, such as weight reduction and ease of palming, is also a characteristic of the Osia Jigger LD. The premise for this is “reducing only weight while maintaining rigidity and durability.” For example, drive gears are reduced in weight by 12 g by removing the thickness, and while improving operability by increasing the size of the handle knob by 12% (*), weight is maintained by aluminizing the insert and adopting a hollow structure. Also, it follows the design concept common to the Osia Jigger series, improves palmability with a compact feel that fits comfortably in the palm of the hand, and embodies a frame shape that is easy to grip and easy to sum. Furthermore, the handle uses a high-rigidity cold-forged handle common to the Osia Jigger that does not allow force to escape and can be rolled up lightly, and is specially designed 105 mm to suit the application of the Jigger LD. Coupled with the handle knob shape, which has an exquisite angle that makes it even easier to apply force, it creates comfortable jigging. *Comparison with 17 Osia Jigger 2000NRHG Customization is possible according to objectives and experience points. The stopper button that reliably stops the lever in the strike position reduces the risk of “breaking by overtightening” anglers who are not used to lever drags, and is also an effective setting for targeting mid-tier tuna, but it is also possible to set it off for camper jigging, where fighting and defense at the root is essential, and experts who do not need a stopper It's there. *Please refer to the instruction manual for customization methods. After-sales service is available for those who are not used to disassembling the body. (The wages specified by our company are required. (If you make a request along with an overhaul of the reel body, we can handle it with only an overhaul technical fee.) The Osiajiger LD can be customized to more suitable specifications depending on the angler's experience points and the characteristics of the target fish. If you replace the standard drag cam built in at the time of shipment with the included light line cam, the change in drag force will be gentle, and it is compatible with games using PE 1.5 to 2.5. It exhibits characteristics suitable for targeting red and red sea bream in the middle and deep sea, and blue matter jigging in nearby waters.

others ● Part Number: 2501MG LEFT ● Gear Ratio: 5.7 ● Maximum Drag Force (Kg): 20 ● Dead Weight (g): 690 ● Spool Diameter (mm) /Stroke (mm): 60/33 ● Thread Winding PE (No.-M): 3-670, 4-500, 5-400 ● Maximum Winding Length (cm/handle 1 turn): 107 ● Handle Length (mm): 105 ● Bearing Count BB/ Roller: 8/1 ● Yumeya handle knob type: D
