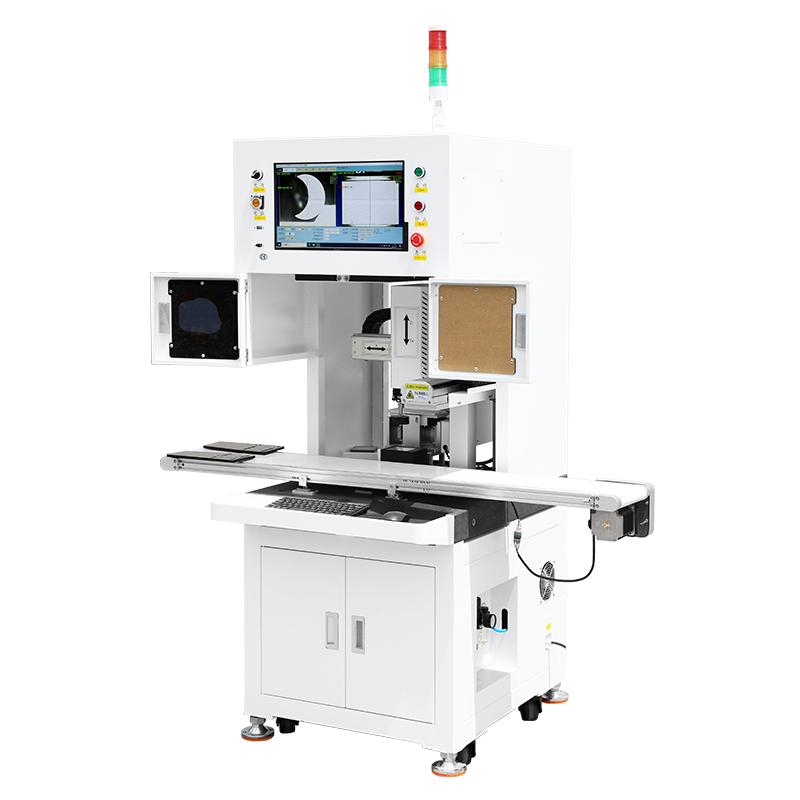

ZONESUN ZS-STB3 Automatic Vision Positioning Labeling Machine CCD Camera Guided Smart Visual Alignment

Overview

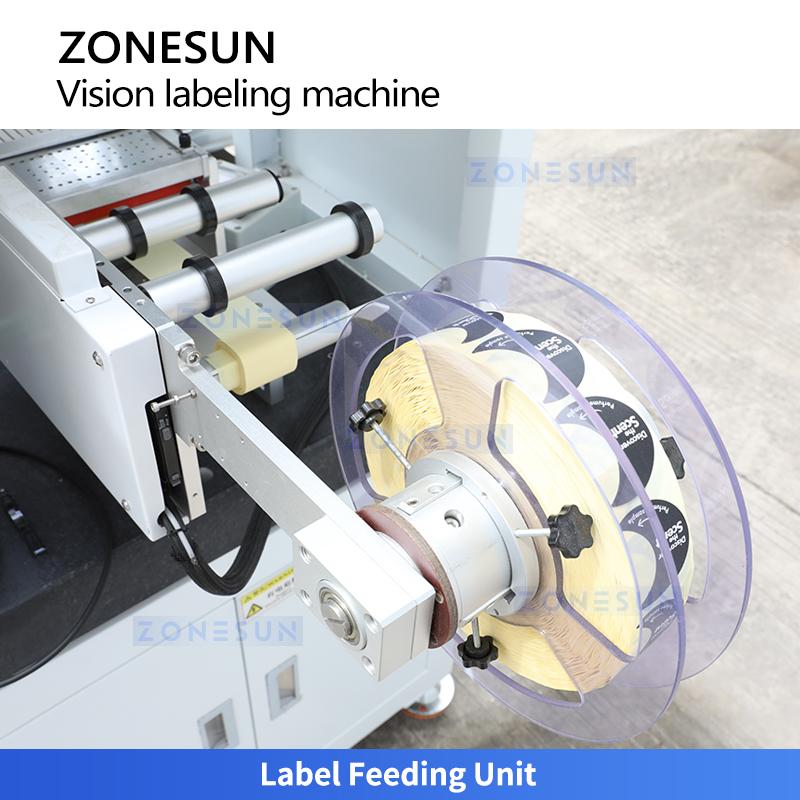

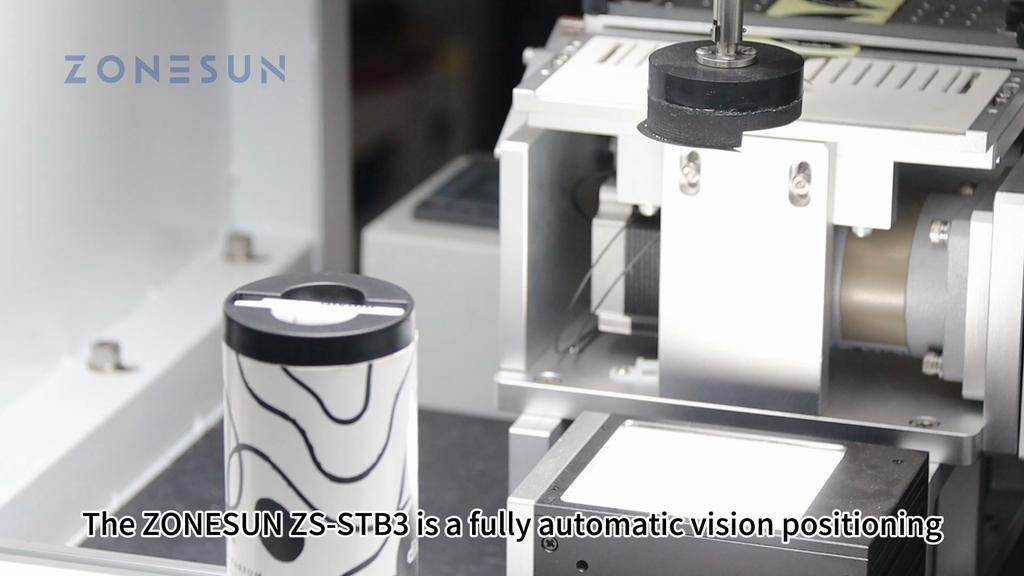

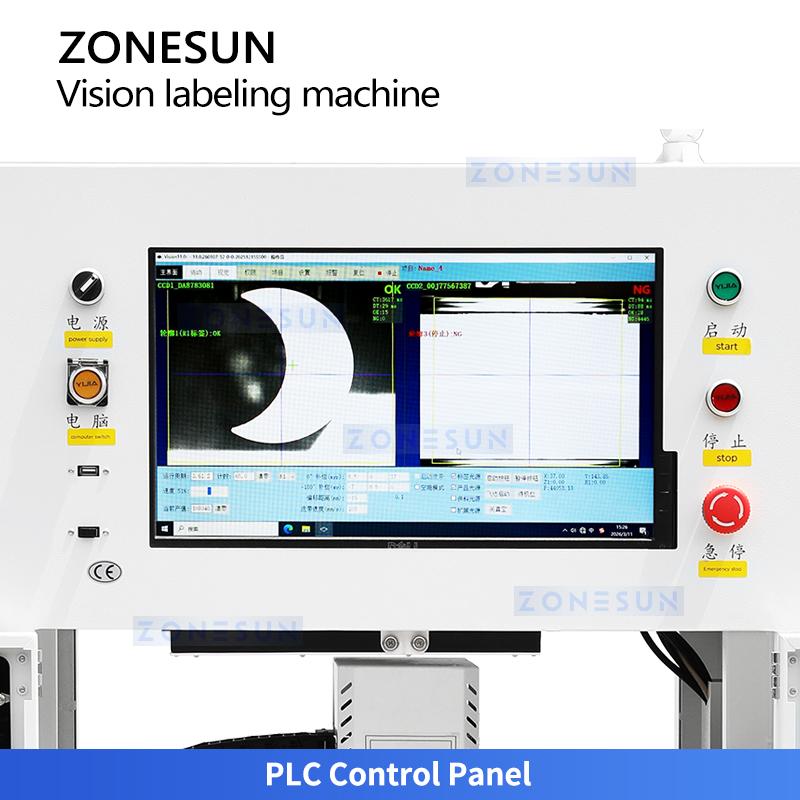

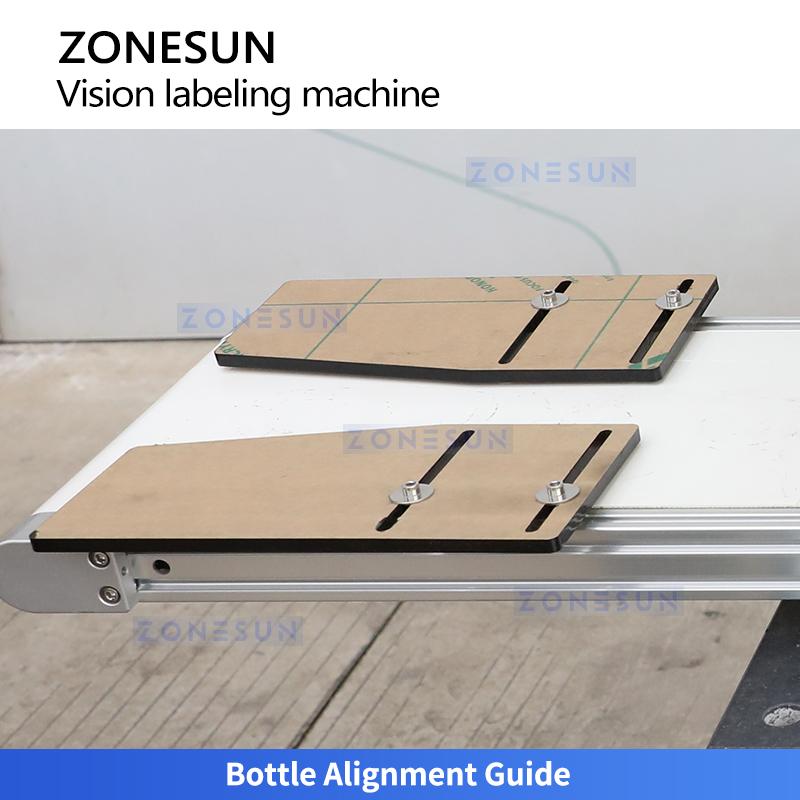

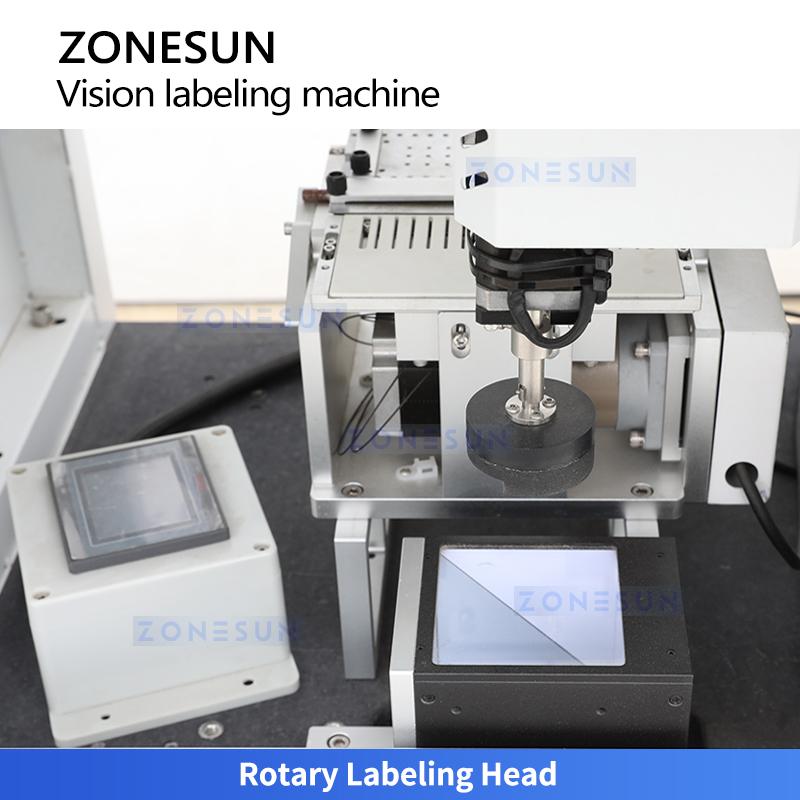

The ZONESUN ZS-STB3 is a fully automatic vision-guided cap labeling machine developed for high-end perfume and cosmetic packaging applications. Equipped with an industrial CCD camera system and intelligent positioning algorithm, the machine automatically detects cap orientation and applies labels at the exact target position with ±0.1 mm accuracy. Integrating PLC control, an XYZ servo positioning system, a rotary labeling head, and a stable bottle alignment mechanism, the ZS-STB3 delivers consistent, repeatable labeling performance at 22–25 pcs/min — eliminating manual alignment errors and reducing label waste on premium packaging lines.

Technical Parameters

Model: ZS-STB3 Labeling Accuracy: ±0.1 mm (mark-to-bottle alignment) Labeling Speed: 22–25 pcs/min Applicable Product: Diameter 56 mm, Height 145 mm (customizable) Applicable Label Size: Length 10–65 mm; Width 10–65 mm (customizable) Machine Dimensions: Approx. 1300 × 1200 × 1850 mm (customizable) Electrical Requirements: 230V / 50Hz Air Pressure: 0.6–0.8 MPa Machine Weight: Approx. 180 kg
