Label:Yes
Size:20*20cm(7.87*7.87in)/23*23mm(0.91*0.91in)/30*30mm(1.18*1.18in)
Application areas: Medical equipment refrigeration, electronic refrigeration, industrial dehumidifiers, water dispensers
Quantity:1pc
Rated voltage:8.52V
Brand new with high quality
Style:as your choose

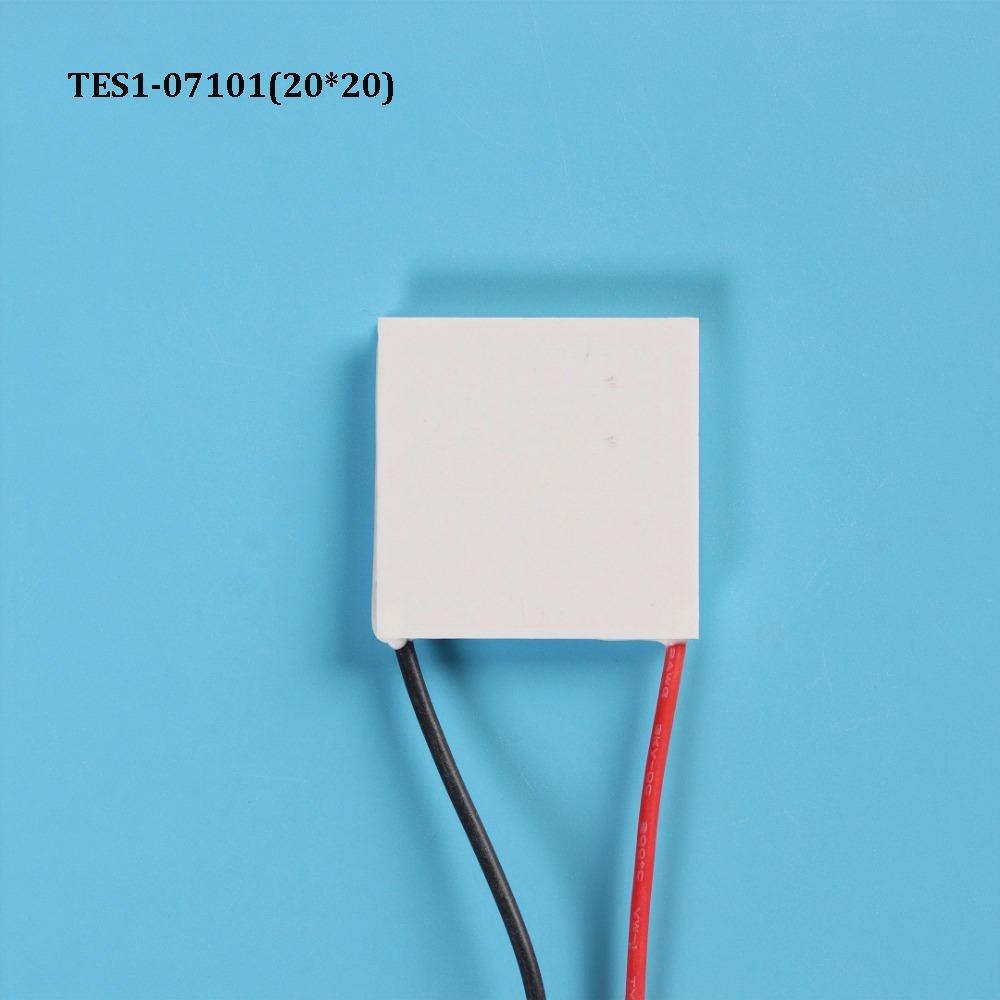

Semiconductor Cooling Sheet 071 Series Cooling Pad Thermoelectric Cooler Pad
Maximum temperature difference of 66 degrees Celsius
Feature: Semiconductor refrigeration
Material:Plastic
This model of product is made of conventional thermoelectric materials, with a maximum temperature difference of 66 ℃, making it a cost-effective product. Widely used in mobile phone cooling (5V2.2A), medical equipment, and beauty instruments, it has received high praise from users and is a favorite among DIY radiator players.
Series product introduction:
1. Conventional series refrigeration chips, with a maximum temperature difference of ≥ 66 ℃; High performance refrigeration chips, utilizing advanced hot extrusion technology for thermoelectric materials, with a maximum temperature difference of ≥ 68 ℃;
2. The recommended maximum operating temperature is 100 ℃, and the temperature for long-term use should not exceed 80 ℃. The storage temperature should not exceed 100 ℃; Inventory refrigeration chips are stored in a dry environment at room temperature;
3. High reliability; Unidirectional cooling, with an average lifespan of over 100000 hours; Suitable for general cold and hot cycle applications;
4. The product is widely used in fields such as beauty equipment, high-end refrigerators, dehumidification equipment, medical instruments, environmental protection equipment, machinery and equipment, precision temperature control, optoelectronic modules, etc;
5. The standard is surface flatness (± 0.05mm), and products with a surface flatness of (± 0.025mm) can be provided according to customer requirements;
6. There are numerous models and sizes, with over 500 standard models available; And can provide customized services such as size, electrical parameters, shape, etc. according to customer requirements;
7. Standard products use high-performance 96% alumina ceramic substrates, and can provide customized services for aluminum nitride substrates and backside metallization;
Method for selecting refrigeration fins:
1. Determine whether the refrigeration object (space, liquid, solid) has a heat source and what the heating power is;
2. What are the ambient temperature (℃) used and the target temperature (℃) of the refrigeration object;
3. Determine the maximum product size that can be applied to the product. From a performance perspective, the larger the size, the better the cooling effect will be;
4. If a high cooling power is required, multiple series and parallel connections can be considered for use;
5. If the input voltage exceeds 12V, it is recommended to consider using a multi chip series connection scheme;
6. The better the heat dissipation effect, the better the cooling effect;
7. The larger the temperature difference, the lower the refrigeration efficiency and the smaller the refrigeration capacity; If a large temperature difference is required, such as in a chiller, multiple refrigeration fins can be used in series to reduce pressure and achieve the maximum cooling temperature difference.
Package Include:
1pc Semiconductor Cooling Sheet 071 Series Cooling Pad Thermoelectric Cooler
Notice:
1.1cm(0.43in)=10mm=0.39inch.
2.Please allow 1-2cm(0.39-0.79in) error due to manual measurement and make sure you do not mind before ordering.
3.Please understand that colors may exist chromatic aberration as the different placement of pictures.
