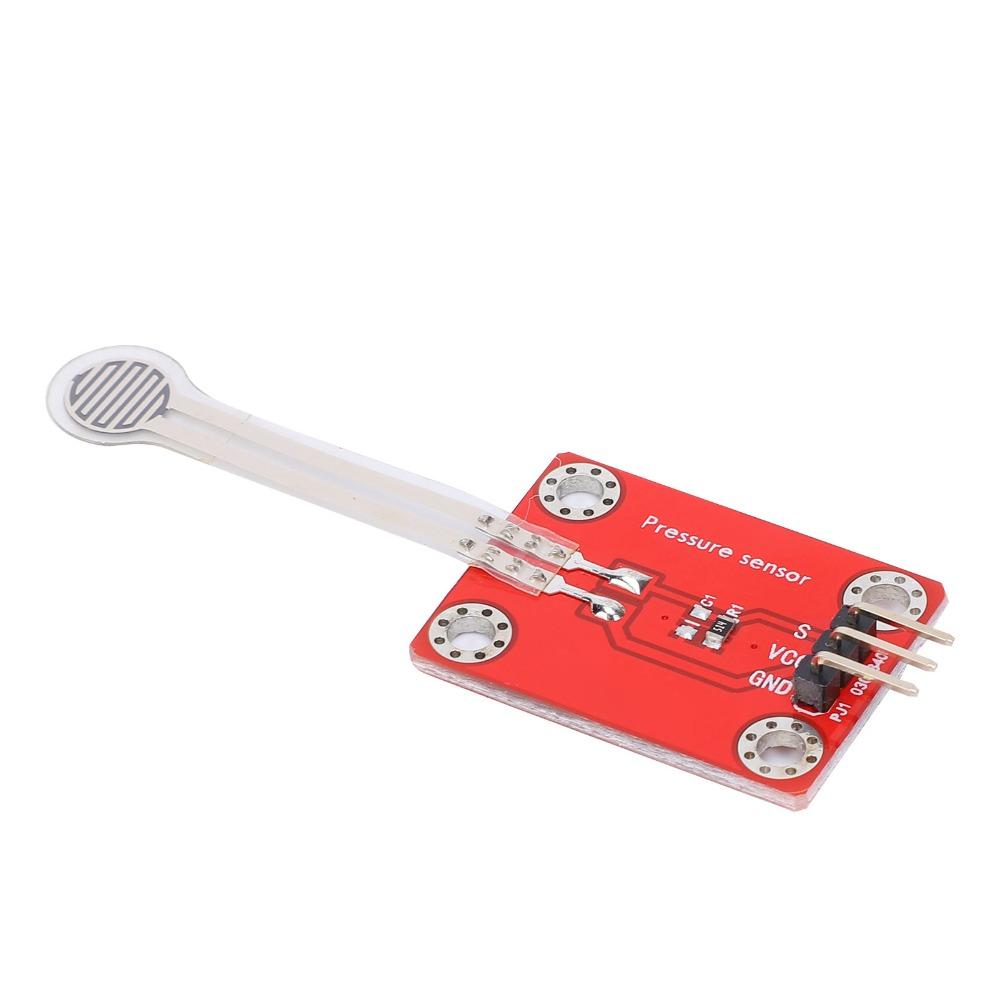

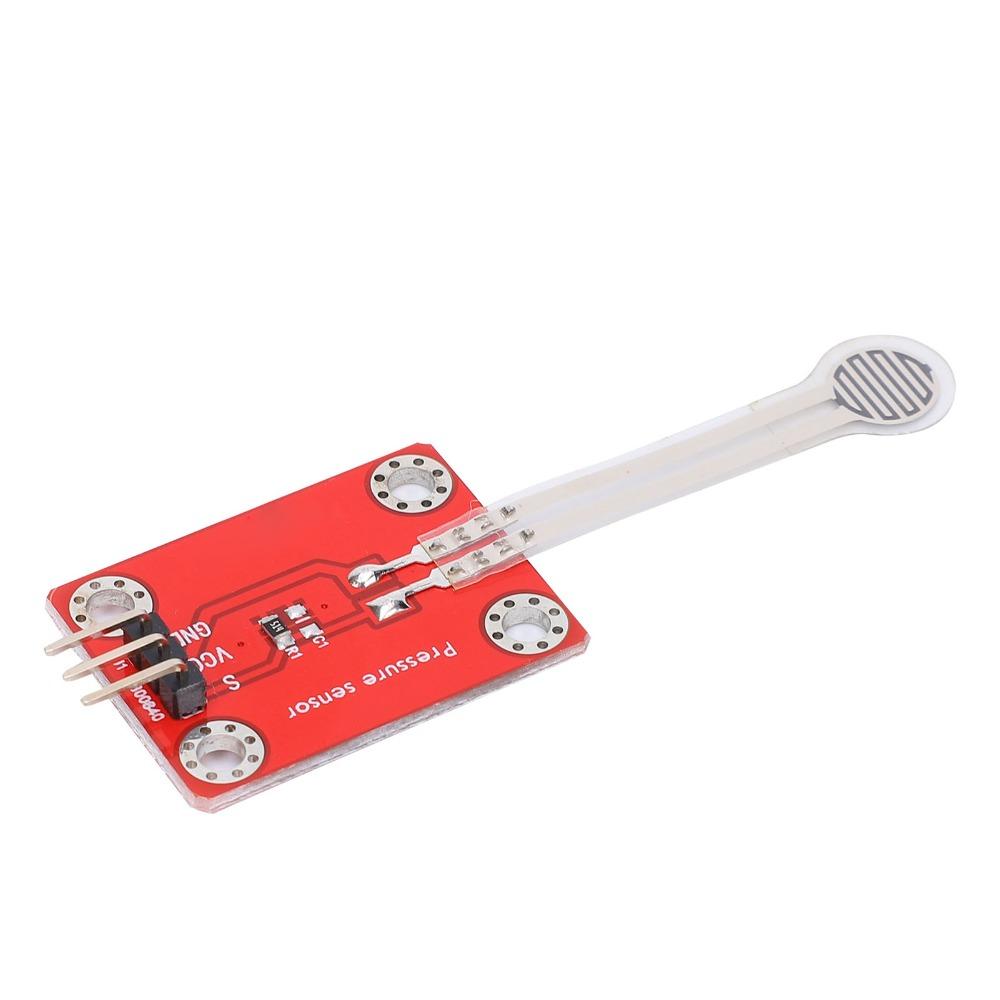

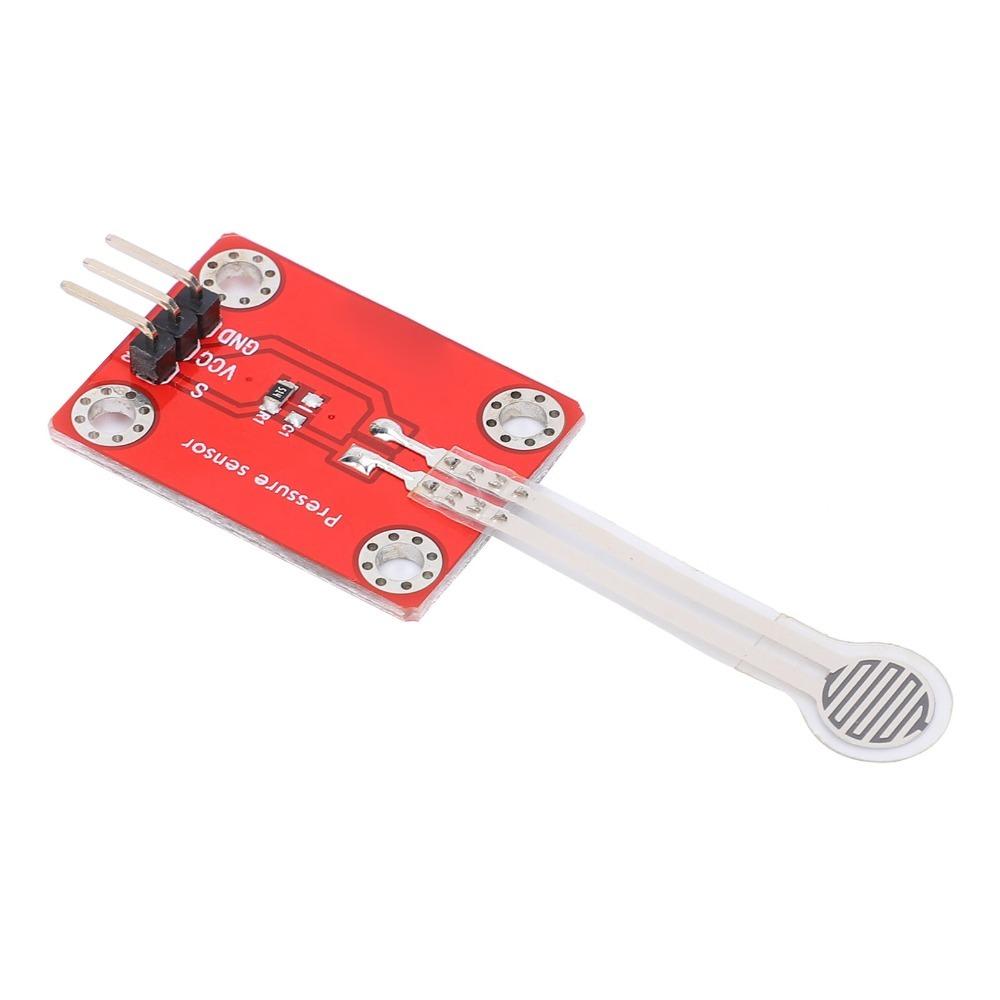

High Sensitivity Pressure Sensor Module Practical DIY Test PCB Board DIY Projects

Label:Yes -A circuit is used to convert the pressure signal sensed by the sensor into an electrical signal with a corresponding change in strength for output. In this way, the pressure change can be obtained by detecting the change of the electrical signal -The substrate is fabricated via one-step lamination, featuring dual functions of waterproofing and pressure sensitivity. -The thin-film pressure sensor is an ultra-thin film device based on a new type of nano pressure-sensitive material, with an optimally comfortable Young's modulus. -This product is compact in structure and easy to use, suitable for beginners to learn programming, and can also be used in more complex systems -When the sensor detects external pressure, its resistance value changes accordingly.

Specification: Working voltage: DC3.3~5V Interface: Anti reverse connection interface/pin set interface Positioning hole size: diameter 3mm(0.12in) Control signal: analog signal Range: 0~5KG Thickness:<0.3mm(0.01in) Response point: 150g Repeatability:<± 9.7% (60% load) Consistency: Soil 10% Durability:>1 million cycles Initial resistance: greater than 10MN (no load) Response time:<1ms Recovery time:<15ms Working temperature: 20 ℃~60 ° C Size:3*2.2cm(1.18*0.87in) Color:As shown in the figure

Note:  1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.

Package List: 1 x Pressure Sensor Module
