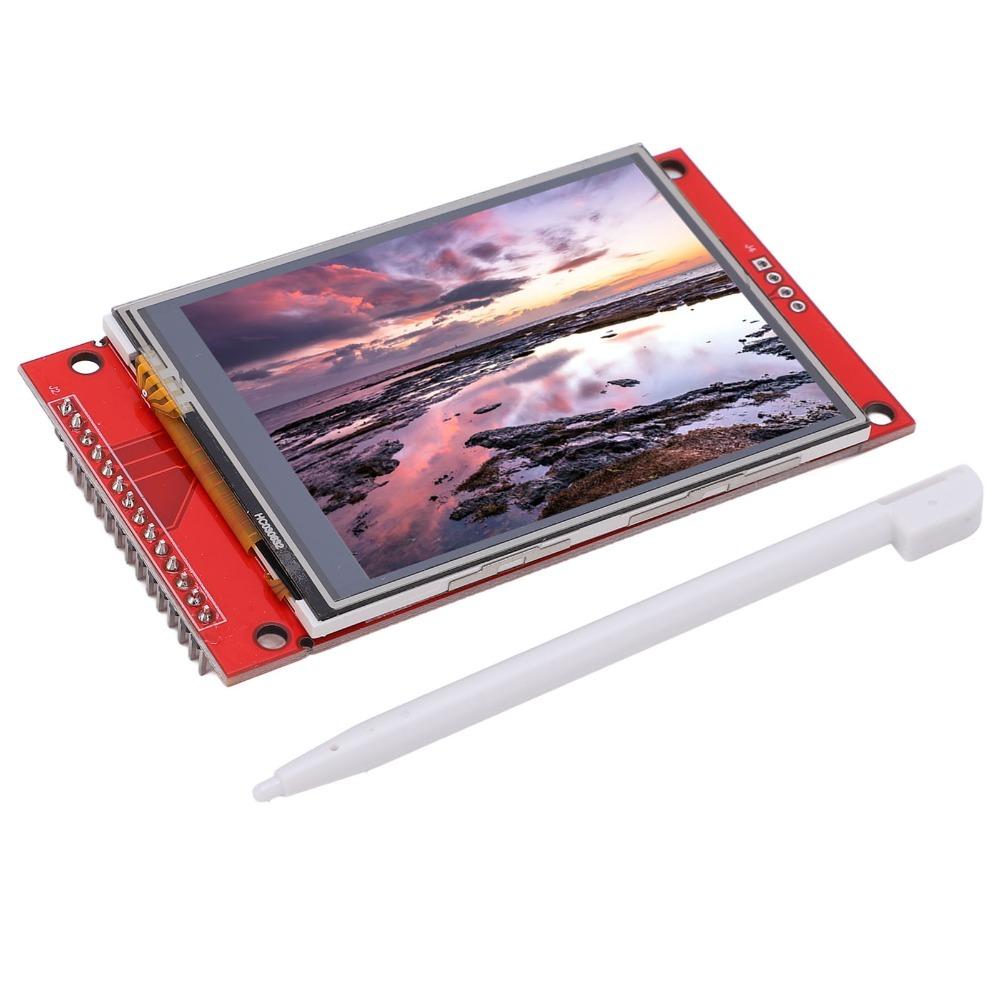

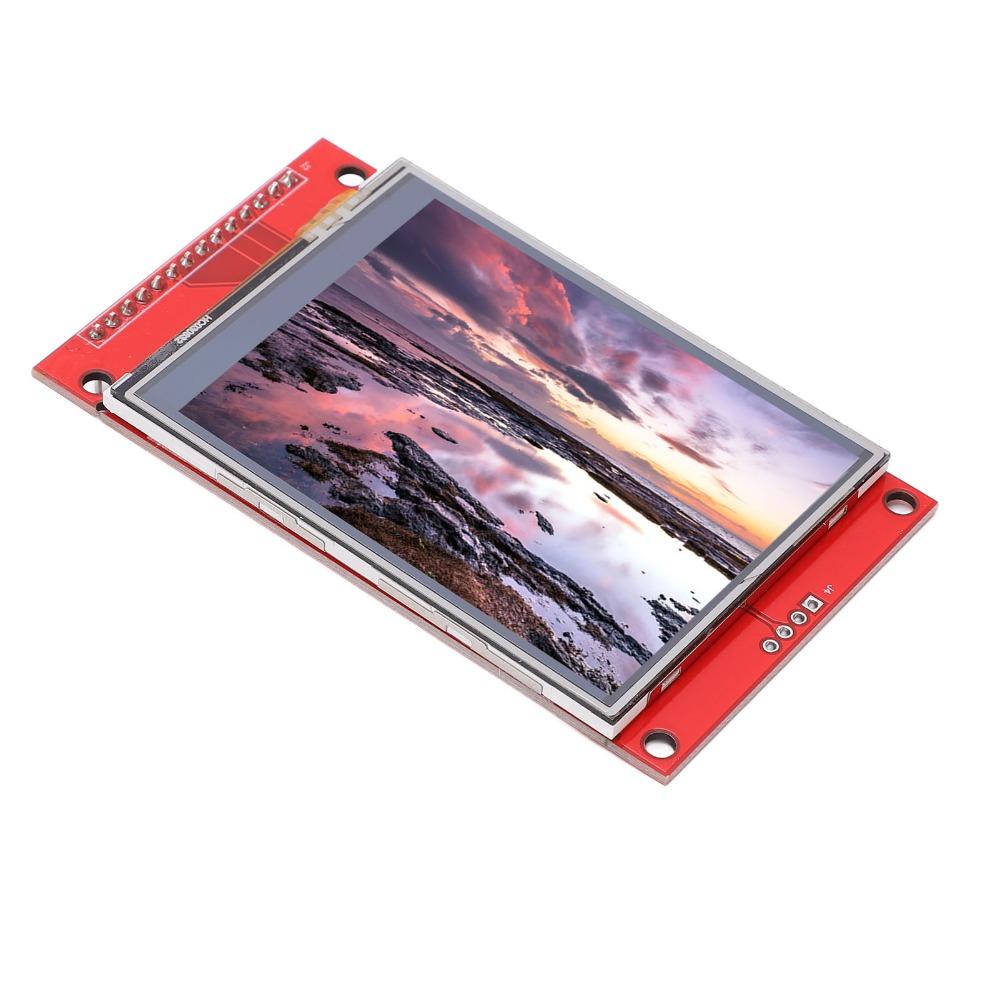

ILI9341 LCD TFT Display Module 2.8 Inch LCD Driver Board TFT Display Module Industrial Control

Label:Yes At least 9 IO driver are needed( with touch). This 2.8-inch LCD module uses ILI9341 drive chip to drive 240*320 dot , with 240*320 resolution. The module is equipped with voltage stabilized IC to support 3.3V/5V power supply. With PCB board (including power supply IC, touch IC, memory card cage) compatible 5110 interface. 2.8 inch color screen, support 65K color display, and the display is colorful.

Specification: Driver IC: ILI9341 Type: TFT , with touch( 9 IO drive) Input voltage: 5V/ 3.3V Resolution: 240X320 Color: 65K color Interface: analog serial port /direct Serial Peripheral Interface mode Active Display Area (AA Area): 43.2x57.6 mm(1.70x2.27 in) Module PCB Base Size: 50.0x86.0 mm(1.97x3.39 in) Operating Temperature: -20°C ~ 60°C Storage Temperature: -30°C ~ 70°C VCC Power Supply Voltage: 3.3V ~ 5V Logic I/O Voltage: 3.3V (TTL) Power Consumption: Approximately 90mA Board Color: Red Weight: Approx.34g/1.2oz

Package list: 1 x LCD Display Module
