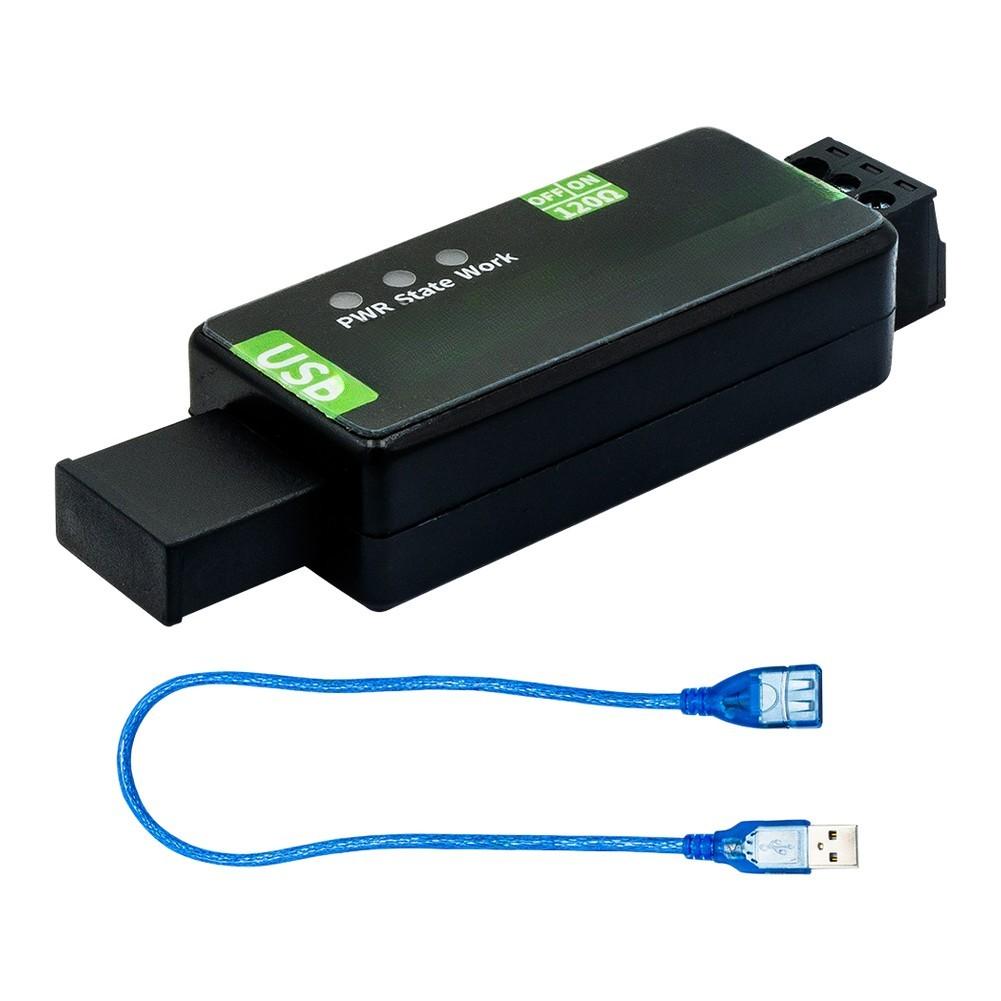

30kV ESD Protection CAN Analyzer USB To CAN ARM Cortex-M4 Processor

Features: *Upgraded Performance: The for MKS CANable V2.0 Pro features enhanced anti- capabilities, making it highly suitable for industrial debugging and motor field applications,reliable performance in demanding environments. *Strong Compatibility: This CAN analyzer is compatible with various ARM-based embedded platforms, such as for RASPBERRY Pi, for ODROID, and for BEAGLEBONE, enabling seamless integration into OEM products and various project applications. *High- Data Transfer: Supporting CAN2.0A, CAN2.0B, and CAN-FD protocols with baud rates up to 1M, and even reaching 2M/5M with specific firmware, it provides efficient data transmission for your applications. *Advanced Hardware Design: Powered by a high-performance ARM Cortex-M4 STM32G431C8T6 processor, the device operates at an impressive for frequency of 170MHz and includes a Type-C USB interface for convenient firmware upgrades. *Powerful Isolation: The for MKS CANable V2.0 Pro isolated version provides excellent signal isolation up to 5.7kV rms and features 30kV ESD protection, effectively safeguarding your equipment from electrical .

Specifications:

*Part Name: CAN Analyzer *Material: PCB *Size:As shown *Color: Black Microprocessor: STM32G431C8T6 Communication Chip: TJA1051T/3 for MKS CANable V2.0; ADM3050EBRIZ for MKS CANable V2.0 Pro. Input Voltage: DC 3.3-5V CAN FD: Both supported CAN for 2.0 A/B: Both supported Firmware: CandleLight, slcan for both Transmission Rates: 1M/2M/5M Signal Isolation: None for MKS CANable V2.0; 5.7kV rms for MKS CANable V2.0 Pro.

Immunity: None for MKS CANable V2.0; Common-Mode Transient Immunity > 75kV/μs for MKS CANable V2.0 Pro. ESD Protection: 30kV for both.

Package Content:

1*Adapter 1*Cable 1*Data Cable

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

for 2. Please allow slight manual measurement deviation for the data.
