Features:

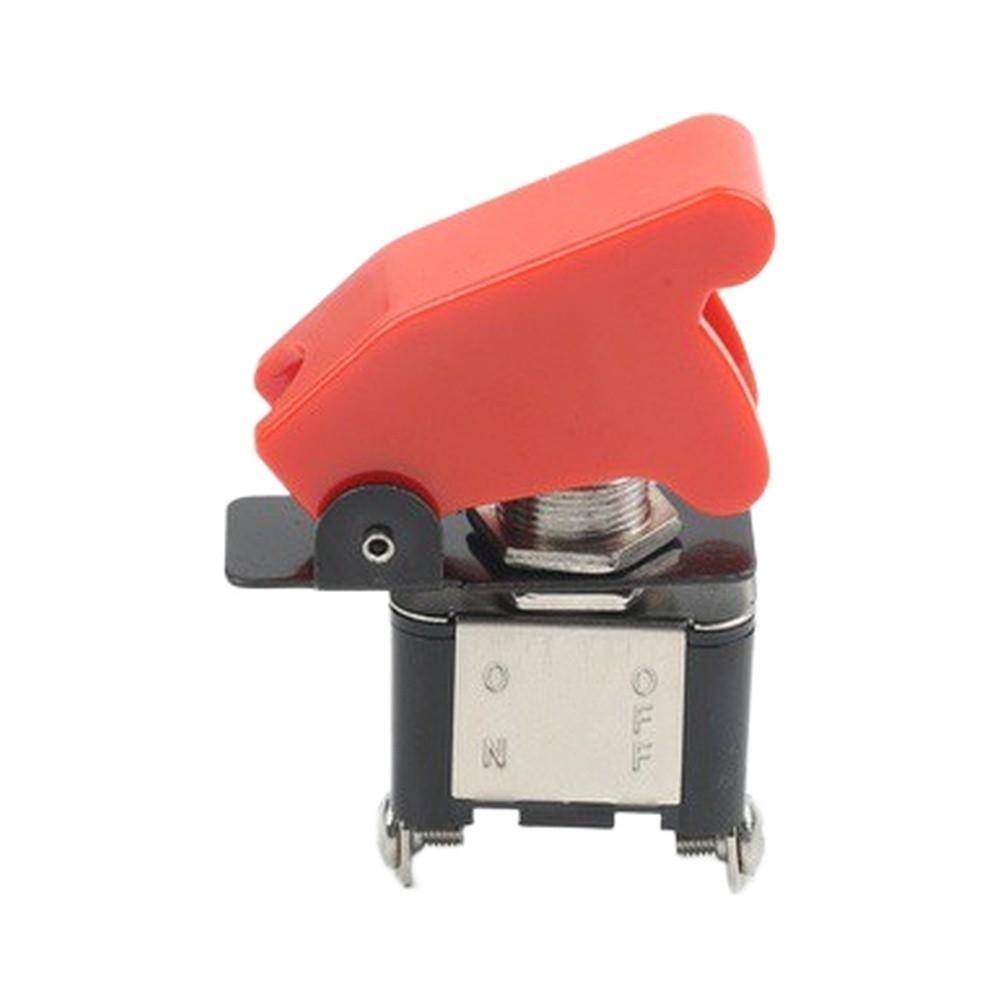

Precise Design and Reliable Performance: This sleek SPST for Toggle switch features 2-position (ON/OFF) operation and a 12mm screw hole for secure mounting. Equipped with 2 screw terminals and a self-locking mechanism, it ensures stable performance. Rated at 250V/15A, it offers smooth switching, low resistance (≤50MΩ), and high insulation resistance (1000MΩ).
Lasting and Long-Lasting: Crafted from high-quality materials with a red for protective cover, this for Toggle switch boasts a long for service life of up to 50,000 cycles. Its rugged housing is heat-resistant, wear-proof, and flame-retardant, delivering excellent mechanical strength and high-temperature resistance.
Easy Installation and Secure Connection: Designed with mechanical screw connectors, this switch enables quick and effortless wiring and soldering, guarantee stable and reliable electrical connections.
for Versatile Applications: Built with a robust design, this switch is perfect for automotive, marine, and industrial applications. It is particularly suitable for cars, boats, yachts, ships, and other equipment requiring dependable switching solutions.
Safe and Efficient Operation: Featuring 1NC+1NO type, this switch ensures safe and efficient power control. The self-locking mechanism prevents accidental toggling, providing an extra layer of safety in demanding environments.
Specification:
Part Name: for Toggle switch
Color: Orange
Model: E-TEN1021
Product type: 2 Pin 2 Position
Operating structure: self-locking
Rated voltage : 250V
Rated current : 15A
type: 1NC+1NO
Hole size: 12mm
resistance: ≤50mΩ
Insulation resistance: ≥1000MΩ
Size: As show
Wiring way: screw foot
Protection level: IP54
Shell material: flame retardant shell
Button handle material: iron
Pin material: copper
material: copper plated with silver
Dielectric Strength: 1500VAC, 1Minute
Operating Temperature: -25℃~ +85℃
Mechanical Life: 50,000 cycles
Electrical Life: 10,000 Cycles
Package Contents:
1* for Toggle switch
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
