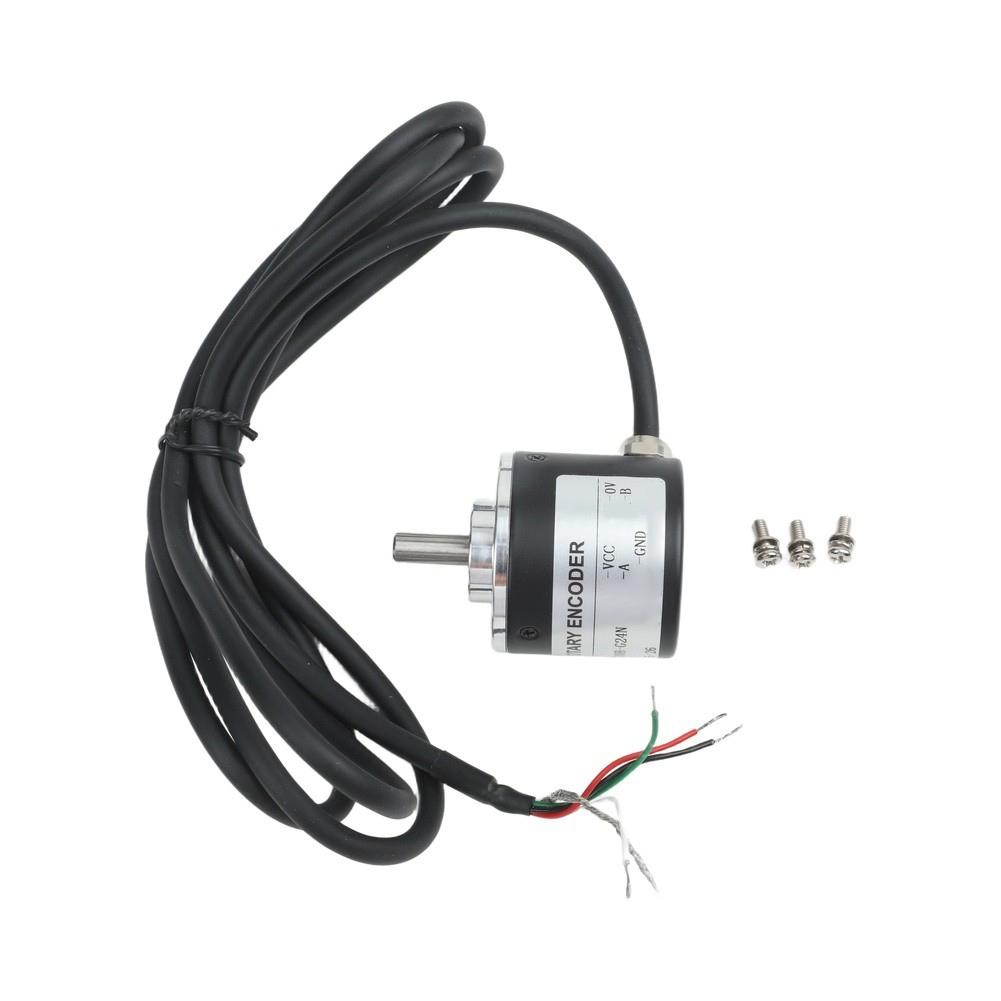

1.5-meter Cable Incremental Encoder Rotary Encoder

Features: High Accurate & Stable Performance：This incremental rotary encoder delivers 600 p/r, . Operating at DC 5-24V, it ensures stable performance in various working conditions, making it for precise motion control. Wide Voltage Compatibility：Works reliably with a broad DC power range (5-24V), offering flexibility for across different setups. Suitable for automated leather cutting, weighing scales, and other accurate displacement measurement tasks. Lasting & Compact Design：Features a robust 6×15mm shaft and compact 38×51mm body, guarantee durability in demanding environments. Includes a 1.5-meter cable and for supports high- up to 6000 RPM for industrial and DIY applications.

for Versatile Quadrature Output：Equipped with dual-phase (A/B) NPN open-collector output, the encoder provides square-wave quadrature pulses for accurate direction and detection. Compatible with most PLCs and controllers for seamless integration. Multi-Functional Applications：Perfect for measuring rotation , angle, acceleration, and length in automation systems. for CNC , robotics, conveyor belts, steel/length cutting control, and for educational robotics projects like student racing .

Specification: Part name: Rotary Encoder Color: Material: Pulses: 600 p/r Power for source: DC5-24V Shaft: 6*15mm Size: 38*51mm Response for frequency: 0-50KHz Cable length: 1.5 meter Output: AB 2phase output rectangular orthogonal for pulse circuit, the output for the NPN open collector output type Radial load: ≤30N Axial load: ≤20N Starting torque: ≤2x10^-3 N.m Maximum : 6000r/min Moment of inertia: 20g/cm2 Allowable acceleration: 2x10^4 rad/S Shock resistance: 1000m/s2.6ms Vibration resistance: 1000m/S2.10-200Hz Working temperature: -10℃~+70℃ Storage temperature: -20℃~+80℃

Package Contents: 1*Rotary Encoder

Notes: 1: Do not connect the encoder to the shaft rigidly, use an elastic connector. Photoelectric encoders are high-precision sensors, so knocking is strictly prohibited during installation.

for 2: Do not wrap the encoder output line with the power line or output it in the same wire slot, and do not place it near the distribution board. 3: Wiring errors will damage the internal circuit. When wiring, please follow the encoder label and turn on the machine after checking that everything is correct. 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

for 2. Please allow slight manual measurement deviation for the data.
