Joom: Безопасная зарядка вашего электровелосипеда или электроскутера
• Не оставляйте аккумулятор без присмотра, когда вы находитесь вне дома или спите.
• Не накрывайте зарядные устройства или аккумуляторные блоки во время зарядки.
• Не перегружайте розетки и не используйте неподходящие удлинители.
• Не заряжайте и не храните аккумуляторы под прямыми солнечными лучами или в помещениях с температурой выше 45⁰C.
• Не заряжайте аккумуляторы вблизи горючих материалов или опасных веществ.
• По окончании зарядки всегда отключайте зарядное устройство от сети.
• Всегда используйте только оригинальное зарядное устройство, подходящее для данного аккумулятора.
• Всегда обращайтесь к профессионалам при переоборудовании вашего электровелосипеда или электроскутера.
• Всегда проверяйте аккумулятор (и зарядное устройство) на наличие видимых повреждений.
-----
⚠️Note: In accordance with regulations in certain countries, the packaging label must not exceed 250W; please refer to the product manual for actual specifications.
🚵 PHILODO H8 Dual-Motor All-Terrain E-Bike — Explosive Dual-Engine Power · Massive 1248Wh Battery · Unlockable 56km/h Top Speed
⚡ Dual Motors, Explosive All-Wheel Drive Power
Equipped with dual high-speed brushless geared motors driving the front and rear wheels independently, the total output far exceeds that of single-motor models. Standard speed is 25km/h, but it can reach up to 56km/h when the speed limit is unlocked—experience a "launch" sensation at takeoff and climb hills with ease; effortlessly conquer mud, sand, and steep slopes.
🔋 Massive 1248Wh Battery for Worry-Free Range
Features a 48V 26Ah (1248Wh) removable lithium-ion battery—an exceptionally large capacity rarely seen in this class. Offers a range of 50km in pure electric mode and 90km with pedal assist (tested at 25km/h). The removable design allows you to take the battery indoors for charging. Includes a 3A fast charger for a full charge in 7–8 hours.
🛞 26×4.0 All-Terrain Fat Tires to Crush Any Obstacle
ChaoYang 26×4.0-inch all-terrain wide tires handle sand, mud, snow, gravel, and city streets with ease. Large-diameter wheels offer superior obstacle clearance, while fat tires provide stable grip—a true all-terrain powerhouse.
💡 700-Lumen LED Headlight: Turn Night into Day
The integrated 700-lumen LED headlight far surpasses standard e-bike lights, ensuring clear visibility at night. The taillight includes a brake light function, making you clearly visible to vehicles behind for enhanced safety.
🛑 Front and Rear Hydraulic Disc Brakes
Equipped with front and rear hydraulic disc brakes for powerful stopping force and linear, responsive feel. Brake levers feature a motor cut-off sensor that automatically stops power delivery when braking, providing dual safety assurance.
🔧 21-Speed Shimano Drivetrain
Shimano 21-speed system (3 front, 7 rear) with refined gear ratios—makes hill climbing less strenuous and flat-road riding more efficient, allowing you to find the perfect rhythm whether ascending or descending.
🔄 6061 Aluminum Alloy Frame
Features a 6061 aluminum alloy frame that is lightweight, sturdy, and corrosion-resistant. The 18-inch frame accommodates a wide range of rider heights, ensuring a comfortable, spacious ride even for taller individuals.
📱 Color LCD + USB Charging
Equipped with a clear, easy-to-read color LCD display. The phone mount includes a USB charging port (5V 2A / 10W), allowing you to charge your device while navigating—so you never have to worry about running out of battery.
🛠️ High 150kg Load Capacity
Boasts a maximum load capacity of 150kg, making it easy to carry passengers or cargo.
🚴 Three Riding Modes
Choose from three modes—pure electric (twist throttle), pedal-assist (PAS), and manual pedaling—to ride exactly the way you want.
📐 Product Specifications
Frame: 6061 Aluminum Alloy, 18-inch
Fork: Aluminum alloy suspension fork (with lockout)
Riding Modes: Pure Electric / Pedal Assist / Manual
✅ Motor & Performance
Motor: Dual motors, high-speed brushless geared motors
Top Speed: 25 km/h (Standard) / 56 km/h (Unlocked)
Max Load: 150 kg
✅ Battery & Range
Battery: 48V 26Ah (1248Wh) removable lithium battery
Pure Electric Range: 50 km (Tested at 25 km/h)
Pedal Assist Range: 90 km (Tested at 25 km/h)
Charging Time: 7-8 hours (3A fast charge)
✅ Gearing & Drivetrain
Gears: 21-speed
Shifter: Shimano SL-TX50
Front Derailleur: Saiguan
Rear Derailleur: Shimano RD-TZ500
Freewheel: Shimano MF-TZ500
Chainring: Prowheel aluminum alloy, 24×34×42T
✅ Tires & Brakes
Tires: Chaoyang 26×4.0-inch all-terrain fat tires
Brakes: Front and rear hydraulic disc brakes
Brake Levers: Aluminum alloy with motor cut-off sensor
✅ Lighting & Display
Headlight: 700-lumen integrated LED
Tail Light: With brake light function

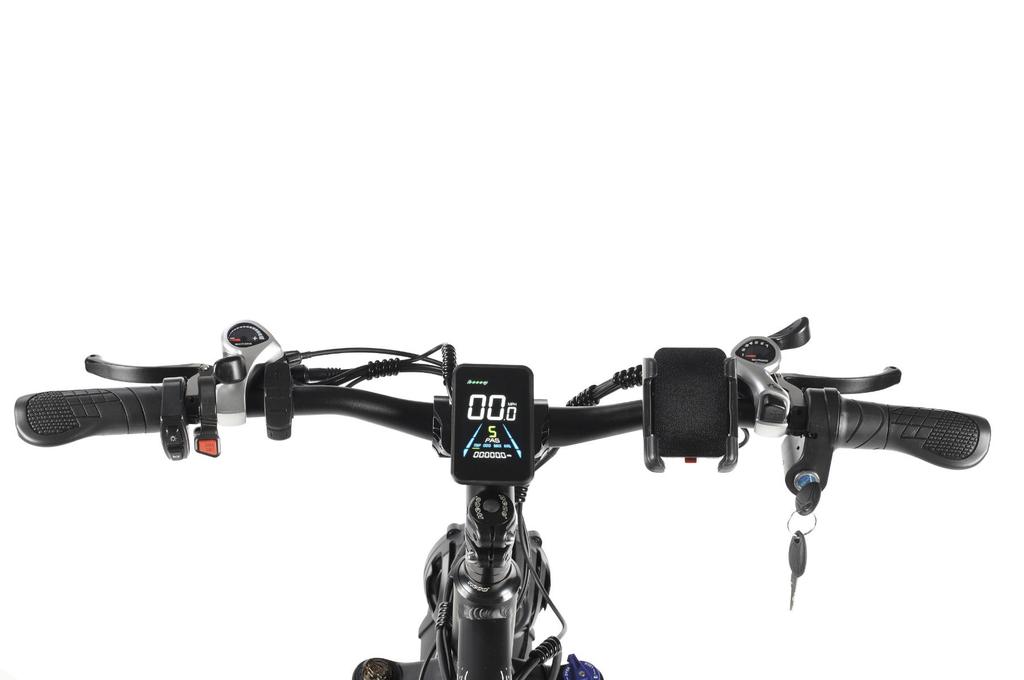

Display: Color LCD
Phone Mount: With USB charging (5V 2A / 10W)
✅ Other Features
Cruise Control: Supported
Fenders: Full-coverage
Pedals: Aluminum alloy
✅ Dimensions & Weight
Net Weight: Approx. 36 kg (±3%-5%)
Gross Weight: Approx. 47 kg (±3%-5%)
📦 Package Contents
Electric Bicycle ×1
Battery (48V 26Ah) ×1
Charger (54.6V 3A fast charger) ×1
Kickstand ×1
Fenders (Full-coverage) ×1 set
Rear Rack ×1
Assembly Tool Kit ×1
User Manual ×1
