B-CUBE FPV Combo 5.8GHz FPV Transmitter 800mW VTX OTG Receiver 2000TVL 165° FOV 2.1mm Lens 1080P FPV Camera for RC Racing Drone

B-CUBE FPV Combo 5.8GHz FPV Transmitter 800mW VTX OTG Receiver 2000TVL 165° FOV 2.1mm Lens 1080P FPV Camera for RC Racing Drone

Introduction This all-in-one FPV kit is designed for pilots who demand crystal-clear analog video, stable long-range transmission, and plug-and-play convenience—perfect for beginners building their first drone and experienced flyers looking for a reliable, high-valuee upgrade. The package includes a 5.8G OTG Receiver, a powerful VTX800 800mW Transmitter, and a 2000TVL 165° Wide-Angle HD Camera, delivering professional-grade performance in every flight scenario, from indoor acrobatics to outdoor long-range exploration.

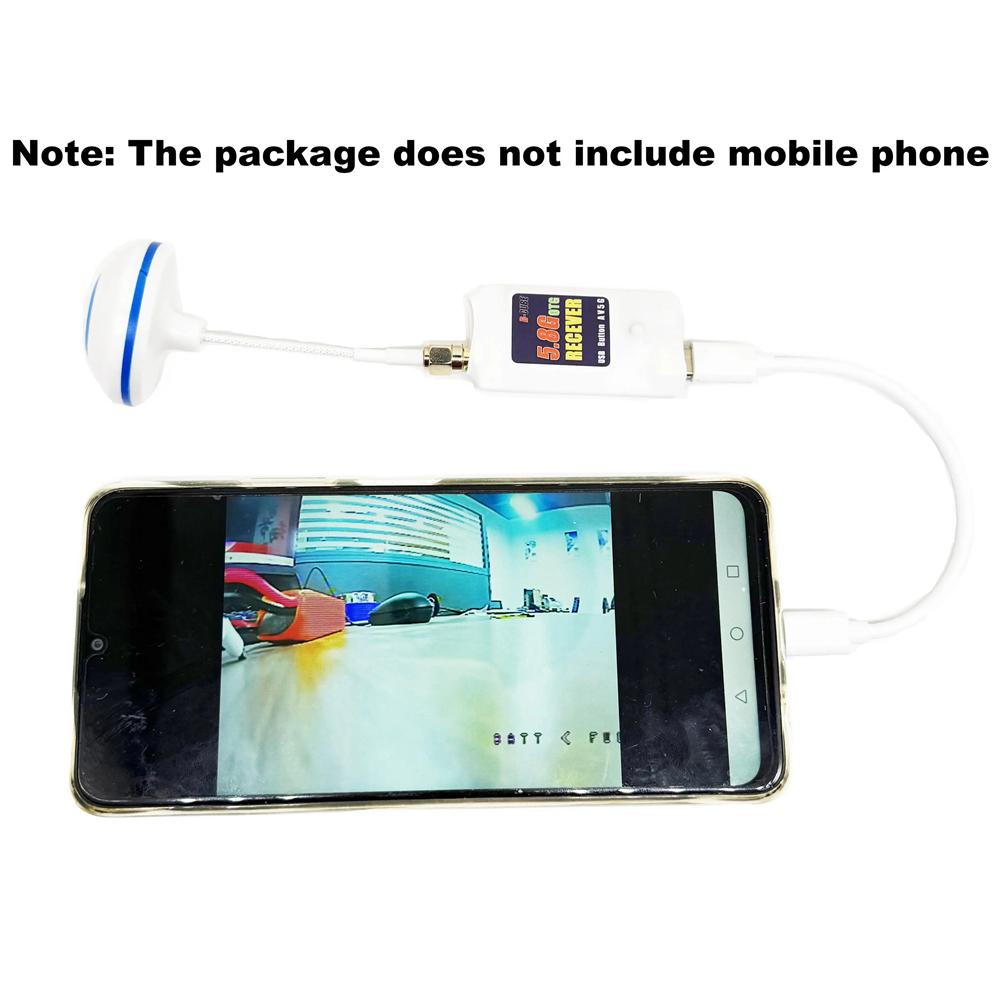

Core Components & Key Features 1. 5.8G OTG Receiver – Turn Your Android into FPV Goggles - The compact 5.8G OTG Receiver is the ultimate portable FPV display solution. - Full Band Coverage: 5645MHz-5945MHz frequency range ensures access to all 5.8GHz channels. - Smooth Video Output: 640x480 resolution at 30fps delivers clear, fluid visuals for precise control. - Universal Connectivity: Type-C OTG port connects directly to Android smartphones/tablets (OTG function must be enabled). - Ultra-Light Design: Just 26g (50×30mm) adds minimal payload to your drone, preserving flight agilityy. - Rugged Durability: Operates flawlessly in temperatures from -10° to 65°C, suitable for all weather conditions. - Easy Setup: Simply power on, long-press the menu button for 3 seconds, and it auto-locks onto the strongest signal. 2. VTX800 800mW VTX – Strong Signal, Flexible Power - The VTX800 is a feature-packed 5.8GHz transmitter built for reliability and performance. - Adjustable Power Modes: PIT Mode (indoor testing), 25mW, 200mW, 400mW, 800mW, and 1600mW—optimize power for range or battery life. - 40CH Interference-Free: 40 selectable channels avoid congestion and ensure a stable link in crowded areas. - Wide Voltage Input: 7-26V compatibility works with 2S-6S LiPo batteries, eliminating the need for an extra BEC. - Compact Mounting: 36×36mm dimension with 30.5×30.5mm screw holes (3mm aperture) fits seamlessly into most micro drone frames. - Lightweight: Only 7.3g keeps your build light and responsive. 3. MINI MS-1672 2000TVL FPV Camera – Ultra-Wide, Low-Light Performance - The MINI MS-1672 is a high-sensitivity, wide-angle camera engineered for visibility in any environment. - 2000TVL Super HD: Delivers razor-sharp, high-contrast images far superior to standard 700TVL cameras. - 165° Extreme Wide FOV: The 2.1mm lens provides an expansive panoramic view, enhancing situational awareness for racing and freestyle. - Super WDR & 3DNR: Wide Dynamic Range suppresses glare, while 3D Noise Reduction ensures clean footage in bright sunlight or low light. - 0.001LUX Starlight Low Light: Performs exceptionally well in dawn/dusk or dark indoor environments, capturing clear footage when others fail. - Auto Format Switching: Automatically recognizes 4:3 or 16:9 aspect ratio and switches between NTSC/PAL—no manual tuning required. - Day/Night Modes: Versatile imaging modes (External/Internal/Black/White/Color) adapt to changing light conditions. - Wide Voltage Power: 5-36V input works with nearly all drone power systems, ensuring stable power

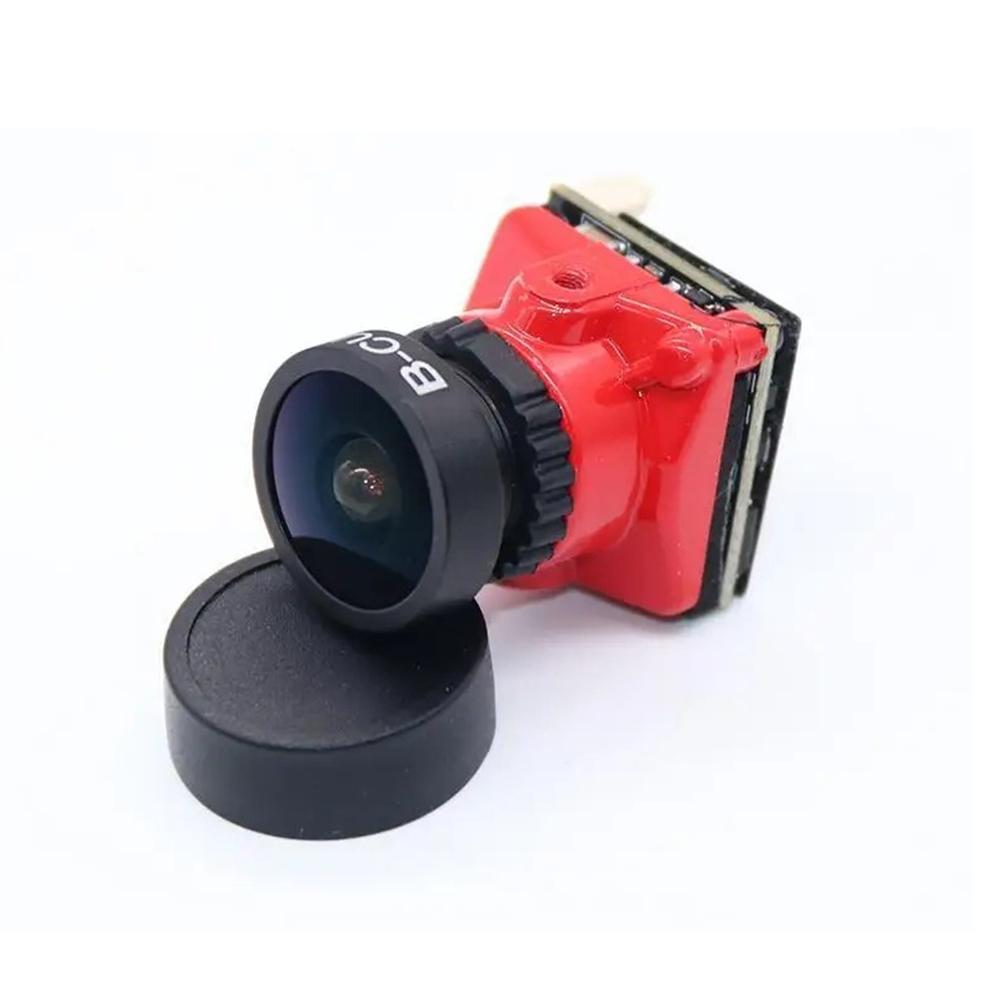

Specification: 5.8G VTX OTG Receiver Frequency: 5645MHz-5945MHz Resolution: 640x480 30fps Working Current: USB 5V 190mA Connector: RP-SMA USB: Type-C Working Temp.: -10°~65° Size: 50MM30MM Weight: 26g 5.8GHZ VTX800 800MW Image Transmission Default Output: 5865MHZ (5.865GHZ)/800MW Model: VTX800 Frequency: 5645-5945MHZ Input Voltage: 7-26V Output Voltage: 5V/1A Channel : 40CH Transmission Power: PIT/25MW/200/400/800/1600MW Boundary Dimension: 36 * 36MM Screw Hole: 30.5 * 30.5MM Screw Aperture: 3MM Weight: 7.3g 2000TVL 2.1 mm Wide Angle HD 1080P Camera Model: MINI MS-1672 FPV Cameras Sensor: 1/1/8 Inch CMOS D1080H Horizontal Resolution:2000TVL Horizontal Field of View: 165° Lens: 2.1mm Lens Video Format: NTC&PAL (Adjustable) Image Scale: 4:3&16:9 (Automatic Recognition) Wide Dynamic Range: Super WDR Noise Reduction: 3DNR Low Illumination: 0.001LUX Video Output: CVBS Day and Night: External/Internal/Black and White/Color Language: (English/Chinese/Traditional Chinese/Pyccnna) ESOABIK/TTASSNO/FRABCAUS/POSDIM/PORTUGUES/Japanese Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000 Wide Voltage Input: 5-36V Working Temperature: -20-60 Resolution: 960 * 1080 Weight: 110g Dimensions: 19X19X19mm

Why Choose This All-in-One FPV Kit - All-in-One Value: Eliminates the hassle of buying separate components—receiver, VTX, and camera are pre-matched for perfect compatibility. - Crystal-Clear Vision: 2000TVL camera with 165° FOV and Super WDR ensures you never miss a detail, even in challenging light. - Long-Range Stability: 800mW VTX power (up to 1600mW switchable) paired with a quality receiver delivers reliable signal up to 800m+ in open areas. - Beginner-Friendly: Auto signal locking, auto format detection, and simple OTG setup make it easy to get flying without technical expertise. - Versatile Usage: Use the receiver with Android devices (VR goggles mode) or connect to a monitor/PC for versatile viewing. Whether you' re building a micro drone, a toothpick quad, or upgrading your current FPV rig, this kit delivers the performance, reliability, and value you need. Fly further, see clearer, and experience FPV like never before!

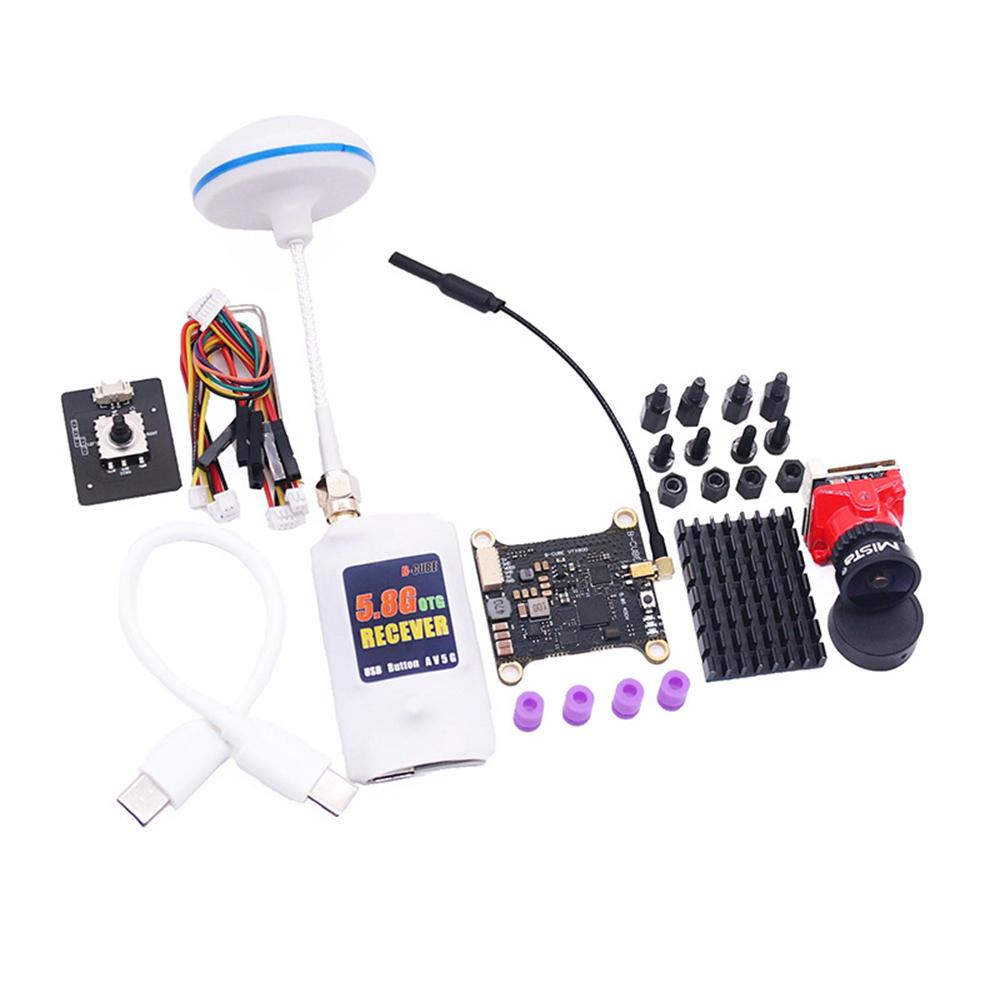

Package included: 1 x 5.8Ghz 150CH Receiver 1 x Type-C OTG Cable 1 x Mushroomm Head RX Antenna 1 x VTX800 Board 4 x Shock-absorbing Ball 4 x Fixed Nylon Column 1 x Heat Dissipation Module 1 x 5.8G 5DB Antenna 1 x 6P * 1.0MM Plug Cable 1 x FPV Camera
