# Multifunctional DC Power Meter
### Key Features

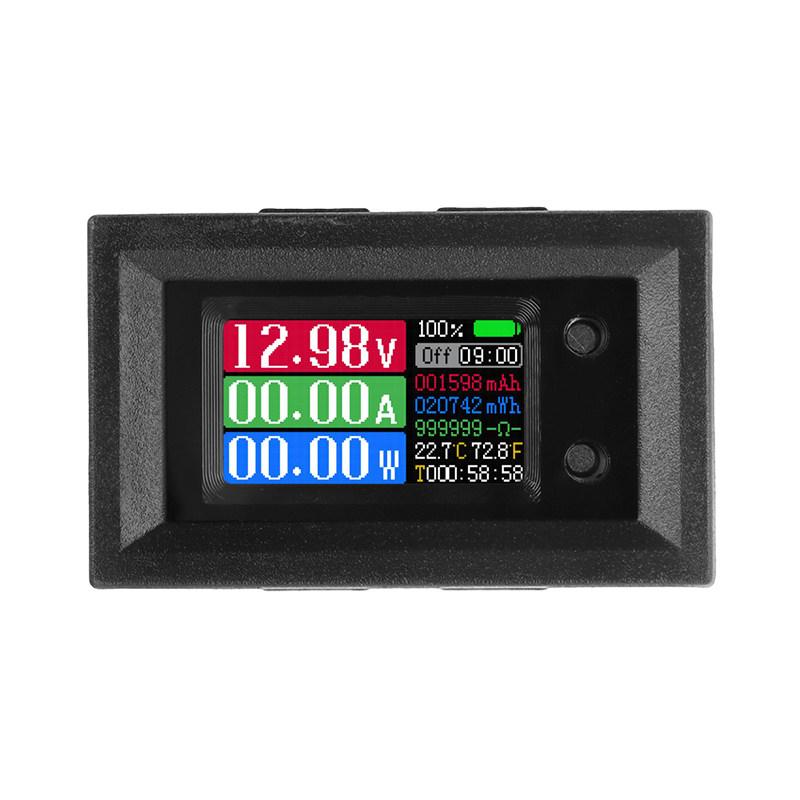

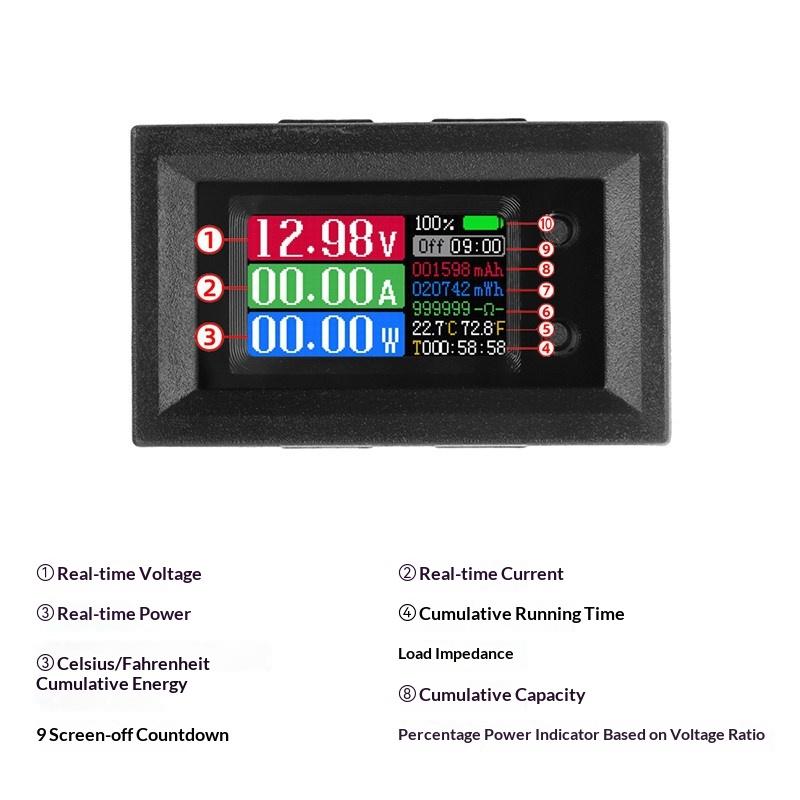

1. 9-in-1 Real-time Monitoring: Track and display 9 core parameters simultaneously on a single screen, including voltage, current, power, impedance (not internal resistance), capacitance, energy, temperature, running time and charge percentage, no extra switching required.
2. HD Color Display: Equipped with a 0.96-inch high-resolution color screen with vivid color output and high contrast, delivering clear, easy-to-read readings both under bright direct sunlight and in low-light environments.
3. Customizable Calibration: To fit diverse application scenarios, we added adjustable voltage and current display settings, so you can fine-tune the displayed values to match your actual usage needs flexibly.
4. Practical Reset Functions: It supports one-click cumulative data reset to clear historical records and restart statistics whenever you need; plus the no-load auto-zeroing function automatically resets readings to zero when no load is connected, effectively avoiding cumulative errors.
5. Smart Power Management: After you manually set the full-charge and low-voltage thresholds, the device will intelligently calculate the remaining battery percentage, helping you optimize charging cycles and extend usage time of your powered devices.
### Technical Specifications

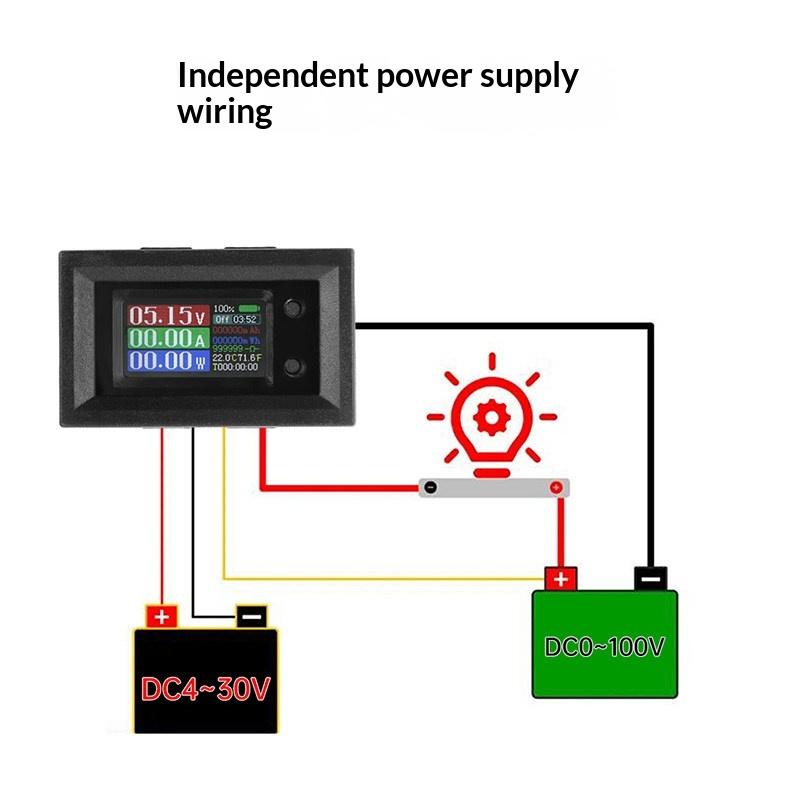

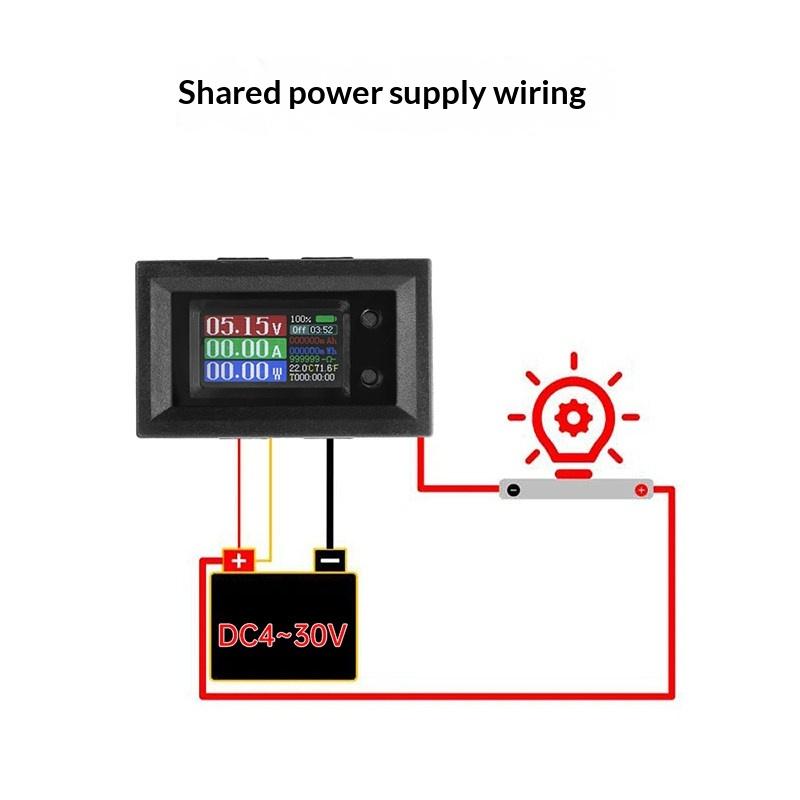

Operating Voltage: DC 4-30V (Overvoltage input is prohibited)
Voltage Measurement Range: DC 0-100V, Accuracy ±1.00V, Resolution 0.1V
Current Measurement Range: Unidirectional, 0.00A-10.00A/50A/100A, Accuracy ±0.1A, Resolution 0.03A
Power Measurement Range: 00.00~1000W
Impedance Display Range: 0~99999Ω (not internal resistance)
Capacitance Measurement Range: 0~999999kAh
Energy Measurement Range: 0~999999kWh

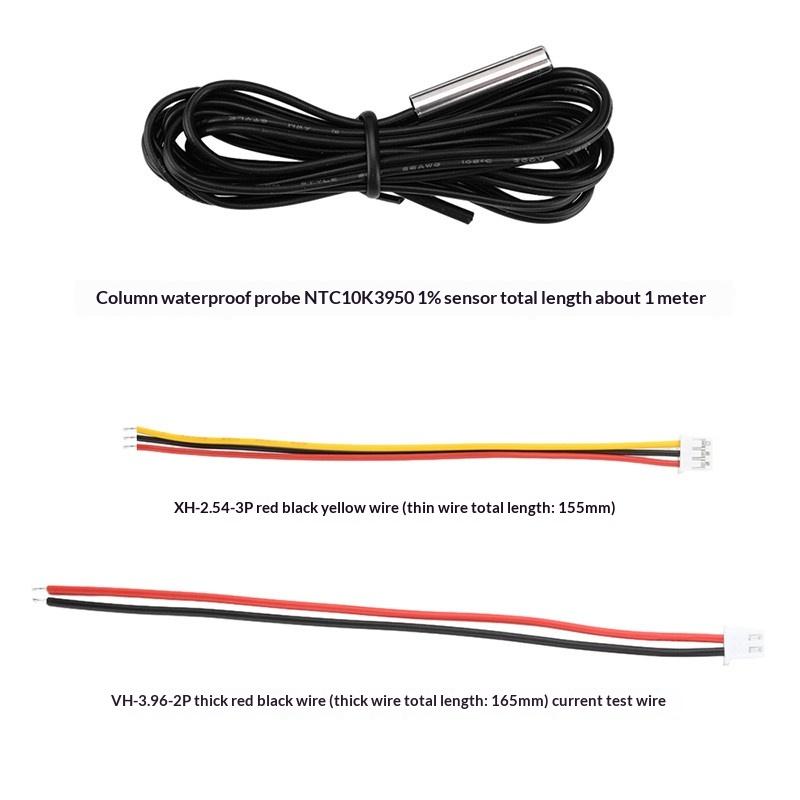

Temperature Sensor: 1m long waterproof cylindrical NTC 10K 3950 1% probe
Temperature Measurement Range: -40~120°C (external temperature detected by NTC sensor)
Time Measurement Range: 0~999:59:59 (hours:minutes:seconds)
Standby Power Consumption: 10mA (tested at DC12V)

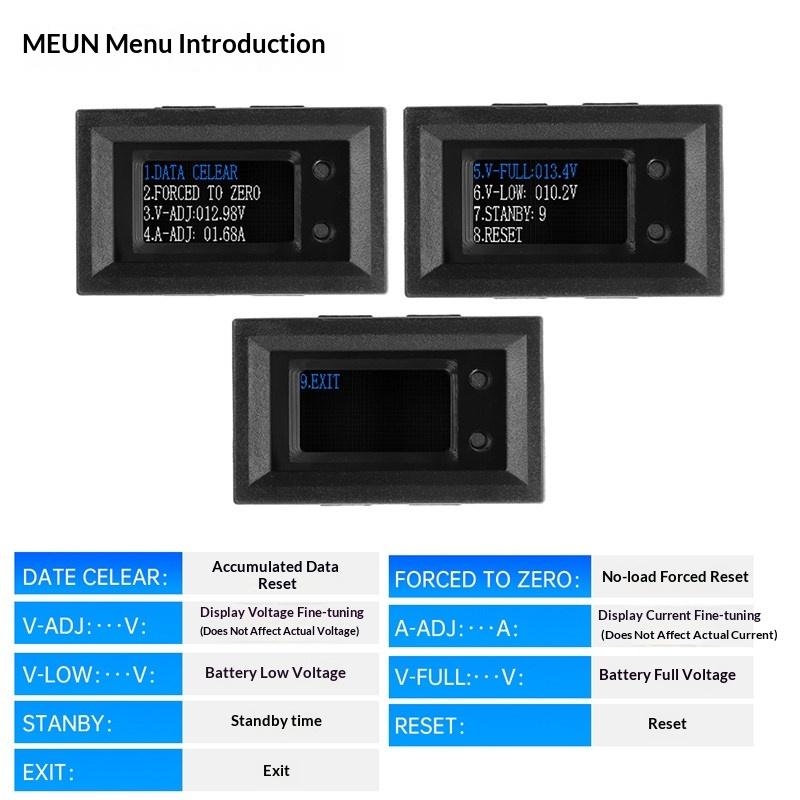

Supported Functions: Cumulative data reset, no-load forced reset, voltage display fine-tuning, current display fine-tuning, voltage-referenced charge percentage display (requires manual setting of full-charge and low-charge voltage thresholds)

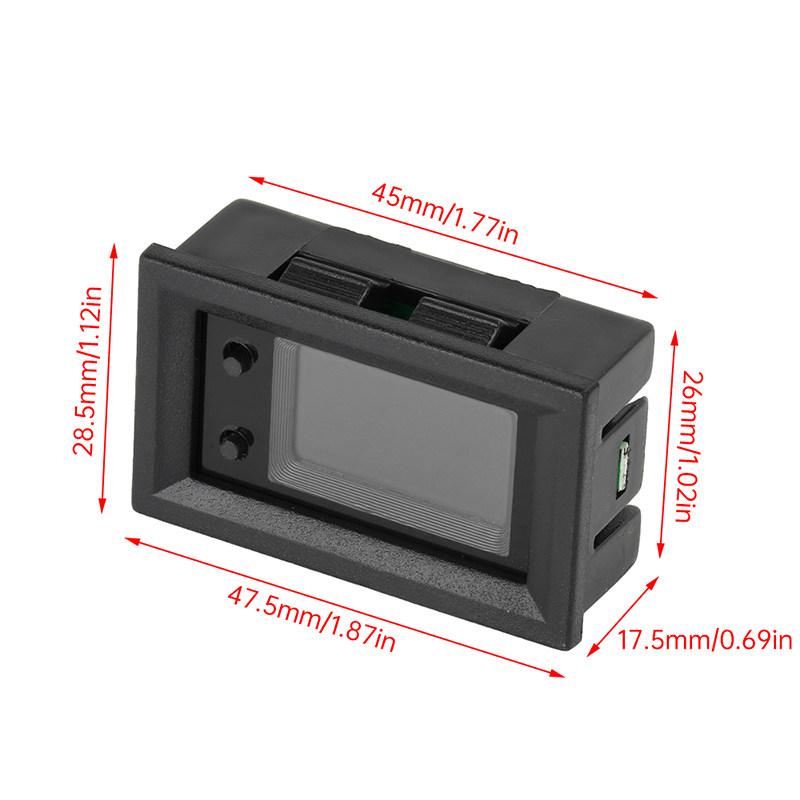

Device Size: 47.59 × 28.67 × 25.33 mm
Mounting Hole Size: 45 × 26 mm

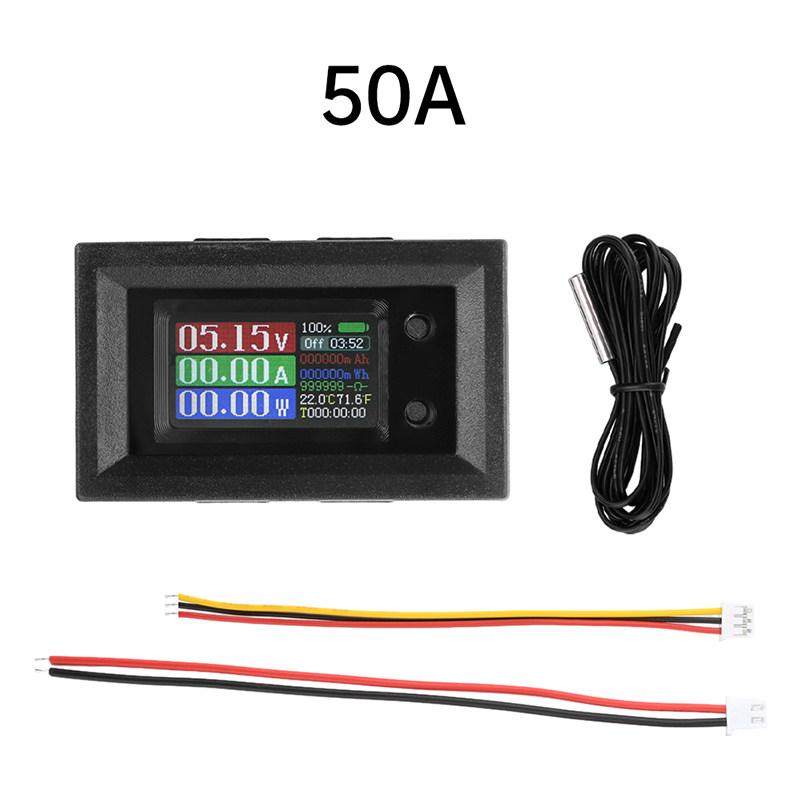

### Package Included

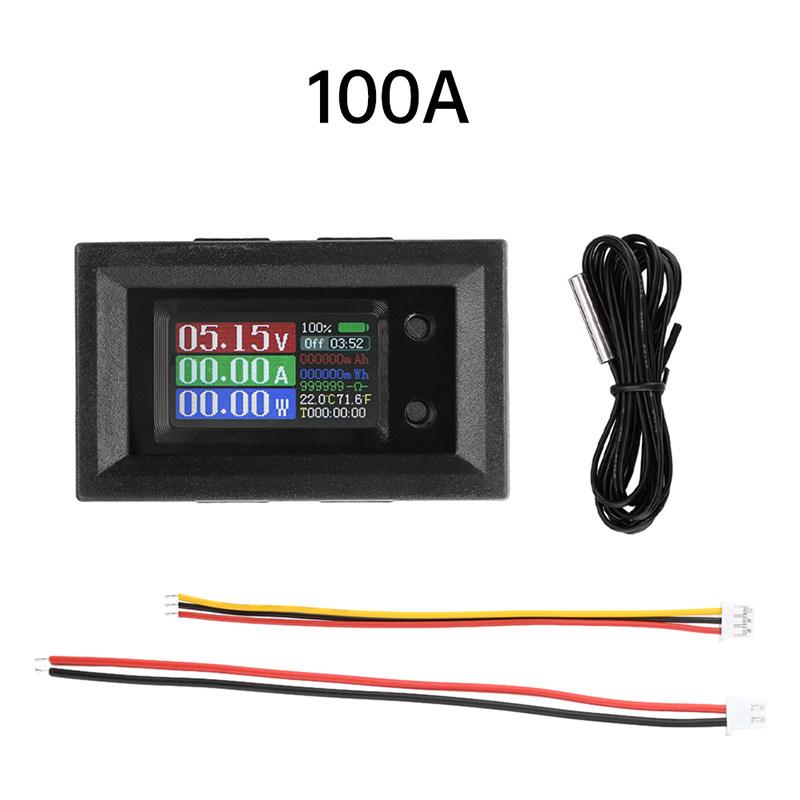

1 × Voltage Current Power Meter
2 × Connection Cables
1 × NTC Temperature Sensor
