Sky/Ground TTL Optical Transceiver Module DC 5.5-26V Drone Optical FC RX/TX/AV/VCC/GND TTL Interface Optical to Fiber Module

Product features: 1.Wide voltage power supply 5.5-26V: Compatible with a variety of batteries to ensure stable work, suitable for UAVs 2.Communication distance up to 20KM: fiber optic transmission, long-distance signal without loss, suitable for FPV control 3.Lightweight design: compact size of only 50x29x13mm, reducing the burden on equipment and improving flight efficiency. 4.Dual-wavelength fiber optic communication: 1310nm at the sky end and 1550nm at the ground end, guaranteeing the signal transmission quality. 5. Multiple indicator monitoring: power, fiber, video, data status at a glance, easy maintenance

Product Parameters: Product Name: TTL optical transceiver module Power Supply: DC 5.5-26V (2S-6S battery) Power Consumption: ≤5W Communication Interface: MX-SH1.0mm-5P: CRSF interface/CVBS video port Fiber Optic Interface: FC Communication Distance: maximum 20KM Indicator Lamps: Power Indicator Lamp, Fiber Optic Indicator Lamp, Video Signal Lamp, Data Lamp Dimensions: 50*29*13mm

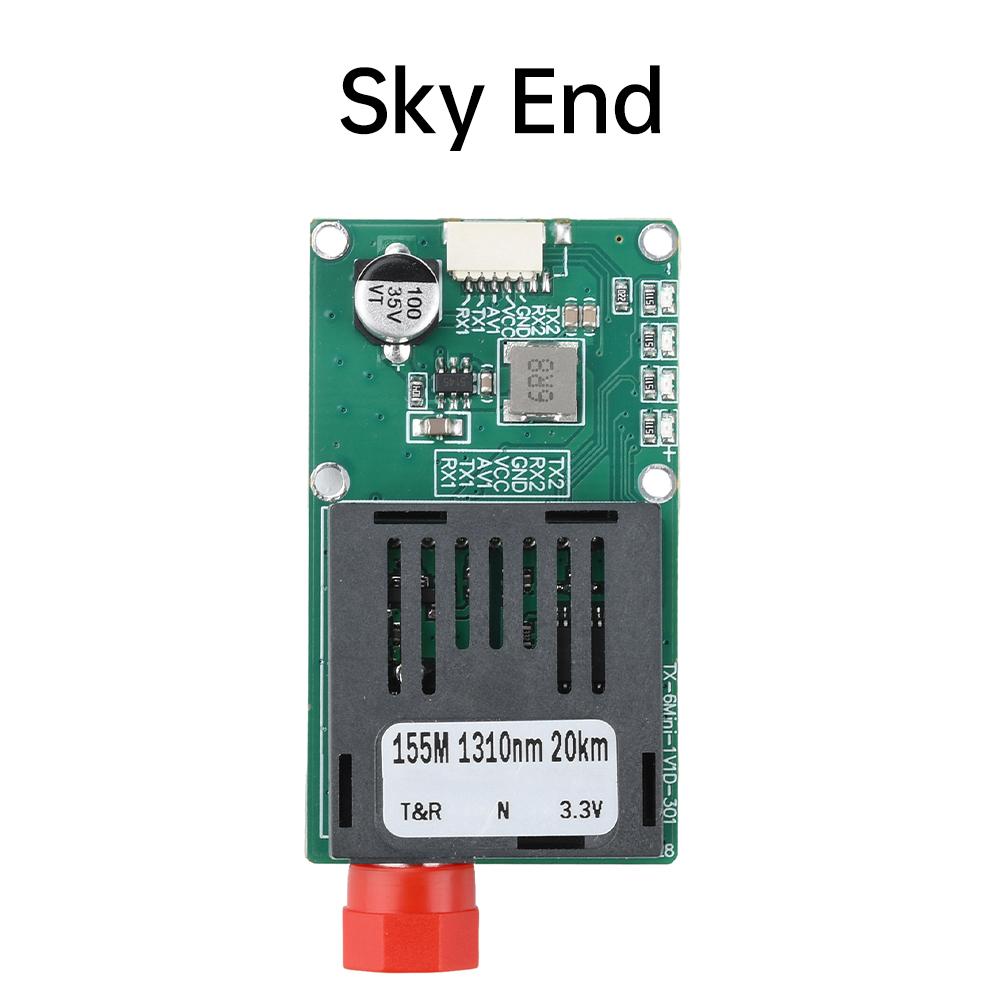

Sky side: The fiber optic wavelength of the sky side is 1310nm, and the interface is defined as: RX/TX/AV/VCC/GND, RX is connected to the CRSFTX of the flight control, TX is connected to the CRSFRX of the flight control, and AV is connected to the AV signal output port of the flight control.

Ground Side: The fiber optic wavelength of the ground side is 1550nm, the interface is defined as: RX/TX/AV /CC /GND, RX accesses CRSFTX of the remote control receiver, TX accesses CRSFRX of the remote control receiver, and AV outputs to the AV signal input port of the display or the VTX.

Description: This device is developed for UAV signal transmission system with 1 channel analog video and 1 channel TTL level signal. The device is characterized by safety, reliability, stable performance, overall light weight, cost-effective and so on. Application Scenario: FPV remote control, pipeline communication, emergency rescue communication

Precautions: 1. Please note that the power supply voltage should not exceed 26V, otherwise there is a risk of burnout 2. Please note that the minimum voltage should not be lower than 5V, otherwise the chip of the board may not work properly.

Shipping List: Module*1
