SMC05 Stepper Servo Motor Pulse Controller 1HZ-200KHZ Signal Generator PWM Board Forward and Reverse Speed Control Regulation
Features

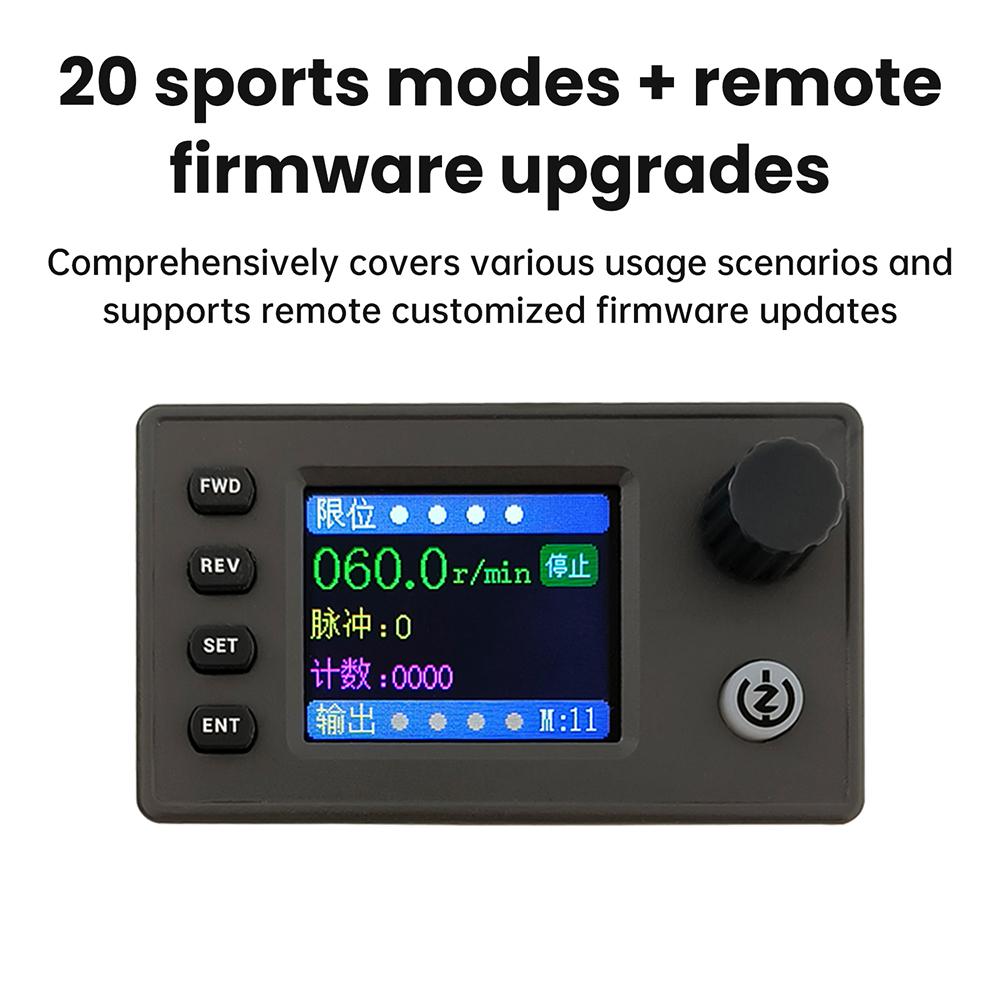

1. 20 Motion Modes + Remote Firmware Upgrade: Comprehensive coverage for diverse applications, supporting remote d firmware updates
2. 1.8-inch HD Color Screen + Silicone Key Design: Clear and intuitive interface, simple and durable operation, silicone keys provide waterproof and dustproof protection

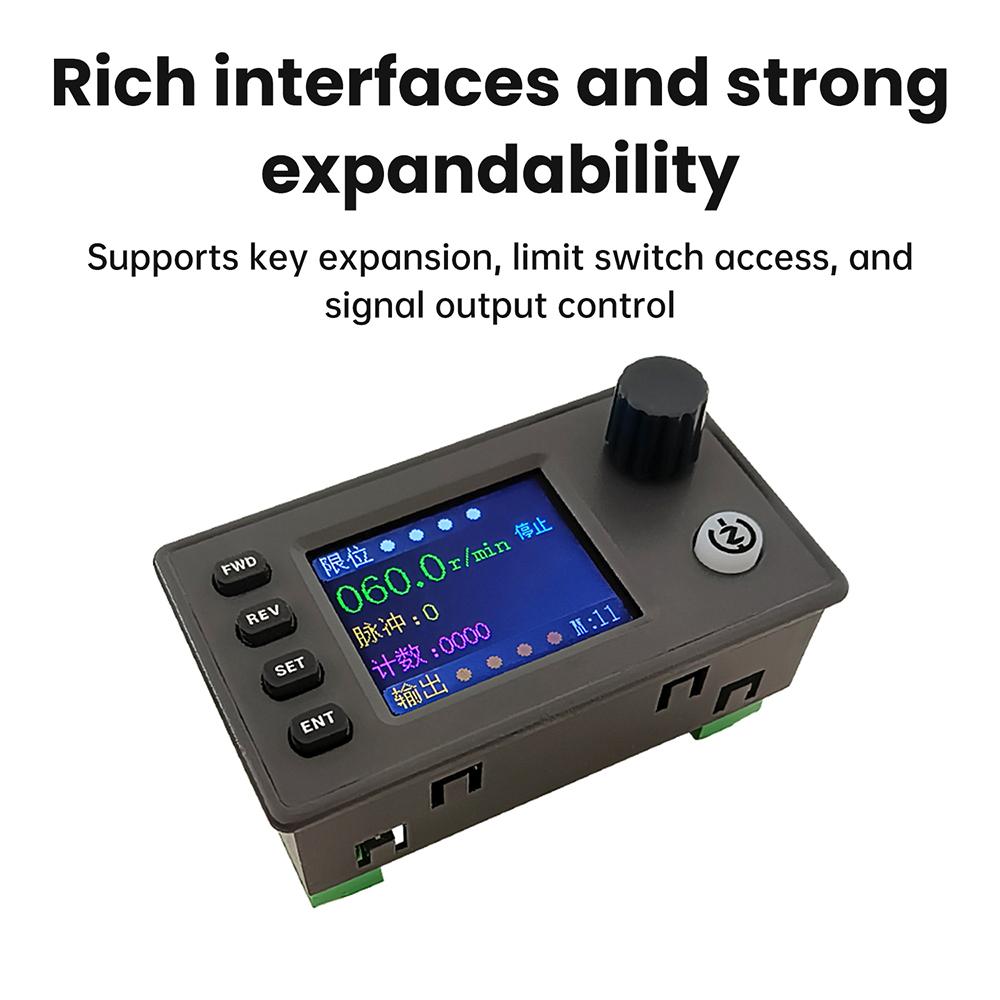

3. Rich Interfaces, Strong Expandability: Supports key expansion, limit switch connection, and signal output control

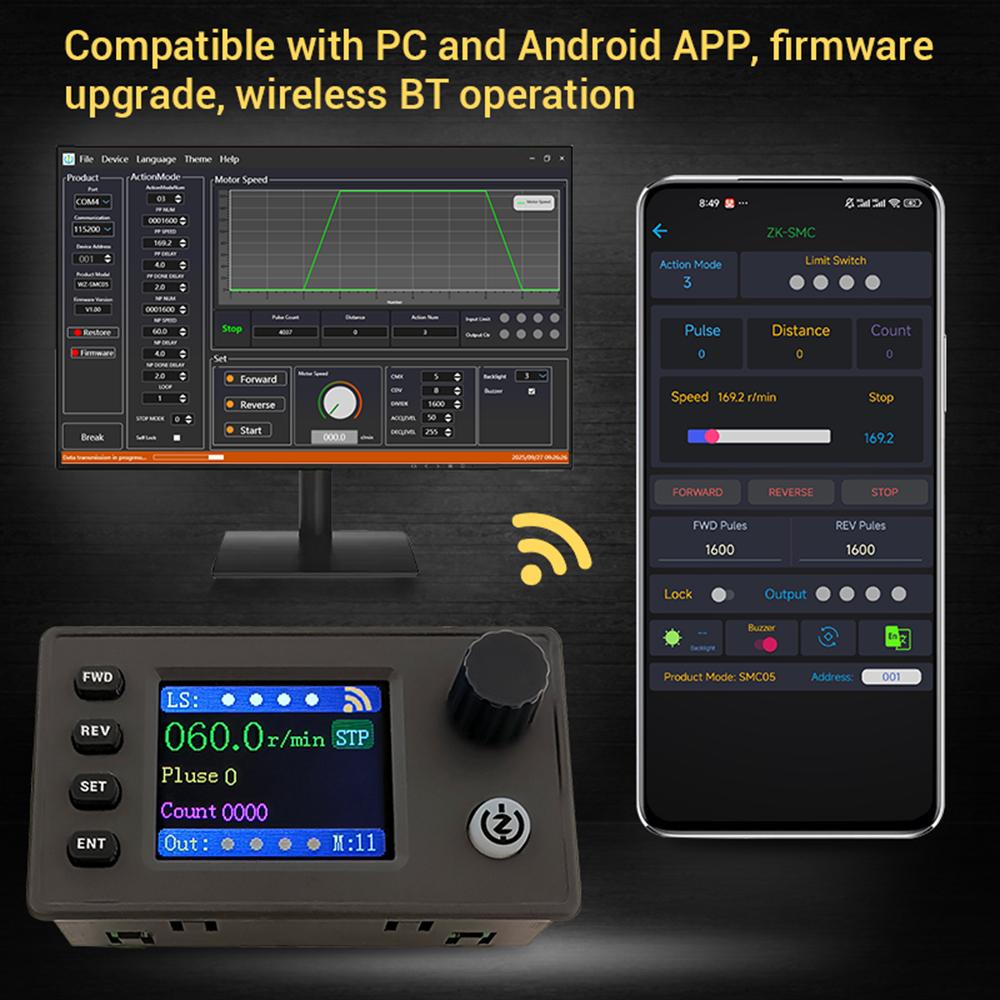

4. Multi-Device Collaborative Control, Convenient and Efficient: Supports dual-end control via host computer and APP, enabling real-time monitoring and operation via mobile phone or computer
5. Dual-language interface (Chinese/English): Freely switch between Chinese and English for enhanced usability
Parameter
Model: ZK-SMC05
Operating Voltage: 12-24V
Output Signals: 4 outputs, 0V output voltage
Input Signals: 4 limit switch inputs, 3 expansion button interfaces
Operating Environment: -5ﾰC to 60ﾰC (non-condensing)
Motor Pulse Frequency: 1Hz-200,000Hz

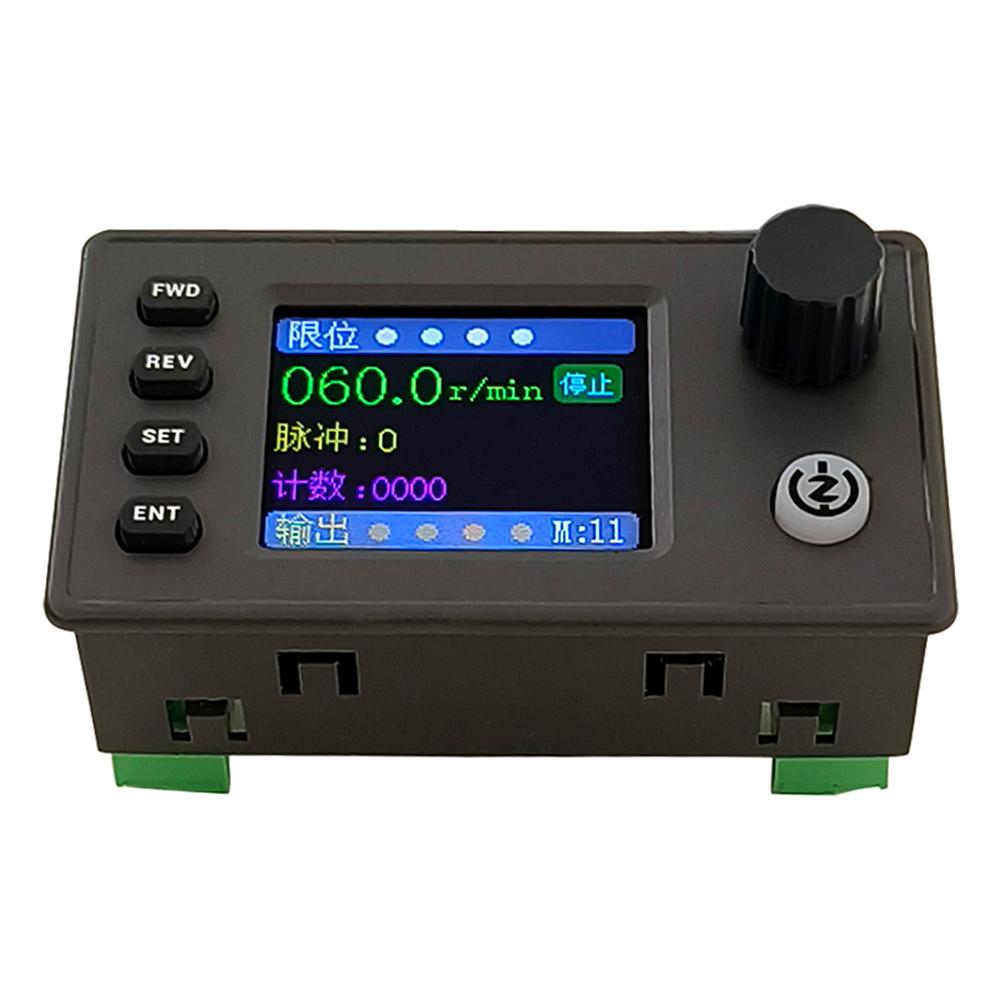

Display: 1.8-inch color screen
Motor Pulse Voltage: 0V output, collector output configuration
Communication: Modbus protocol, supports serial port/Bluetooth/485

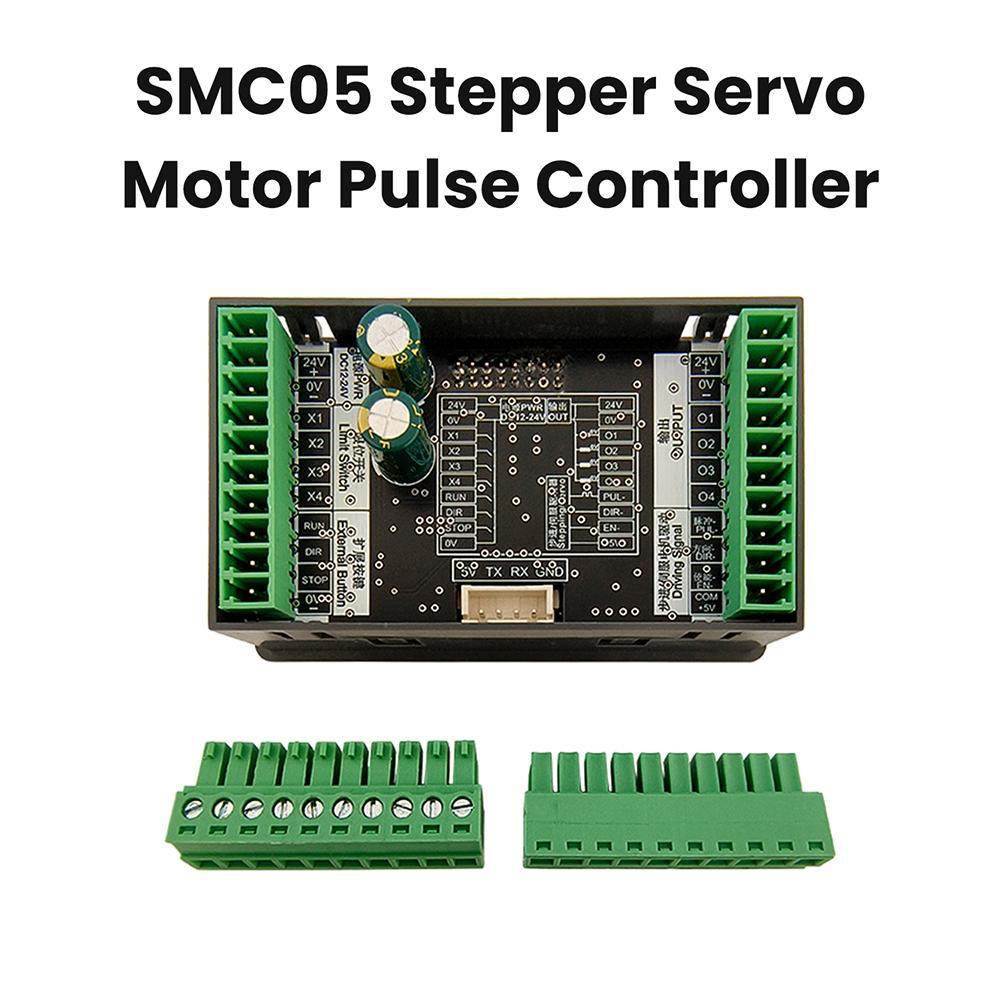

This product controls the operation of stepper/servo motors, utilizing a common anode (5V) connection for 0V pulse drive output. Hardware includes 4 outputs capable of driving devices under 500mA (e.g., indicator lights, solenoid valves), 4 limit switch inputs, and 3 expansion button inputs.
Application areas: Mechanical equipment, automation control, motor tooling, etc.
Package include
Controller*1
