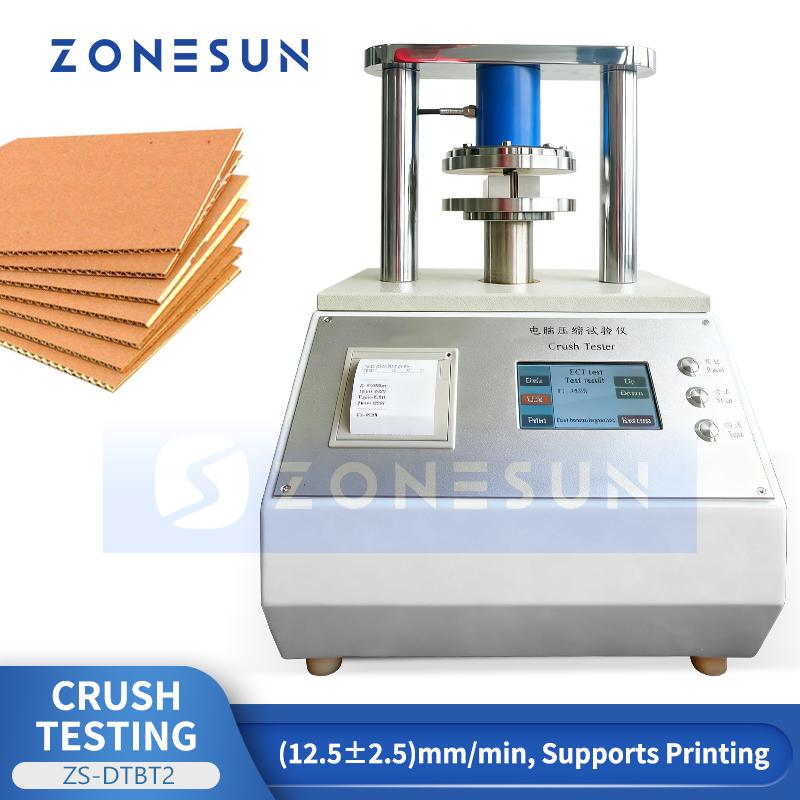

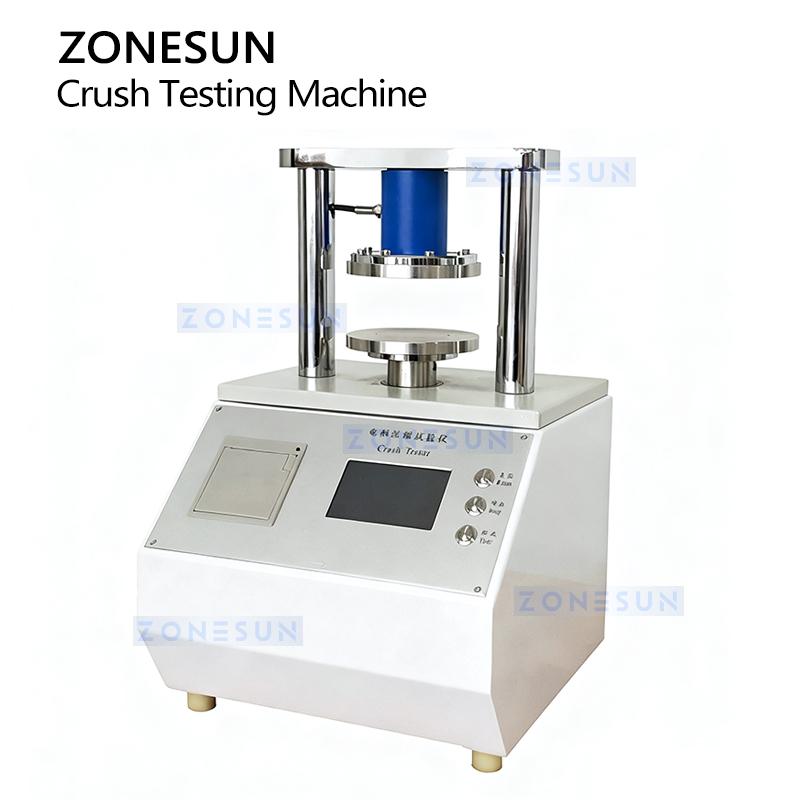

ZONESUN ZS-DTBT2 Multi Function Box Crush Tester RCT ECT FCT CMT Paperboard Corrugated Cardboard Testing Machine With Printer

Description

The ZONESUN ZS-DTBT2 is a multi-function crush testing machine designed for evaluating the compressive strength of paperboard and corrugated materials. Supporting test types such as RCT, ECT, FCT, CMT, PAT, and CCT, it operates at a test speed of (12.5±2.5) mm/min and features a high-precision sensor system with ±0.5% indication error. The machine includes a built-in printer for instant result output and a user-friendly control panel for parameter setup and monitoring. Compact and efficient, it is ideal for laboratories, packaging manufacturers, and quality control departments.

Parameter

Model: ZS-DTBT2

Power Supply: AC110–240V

Measurement Range: (50–3000 N), Resolution: 1 N

Accuracy: Indication Error: ±0.5%

Change of Indication: ≤0.5%

Test Speed: (12.5 ± 2.5) mm/min

Return Speed: 1–80 mm/min

Parallelism of Pressboards: < 0.05 mm

Max Distance Between Pressboards: ≥ 70 mm

Machine Weight: About 34 kg

Machine Dimensions (L×W×H): About 330 × 350 × 510 mm
