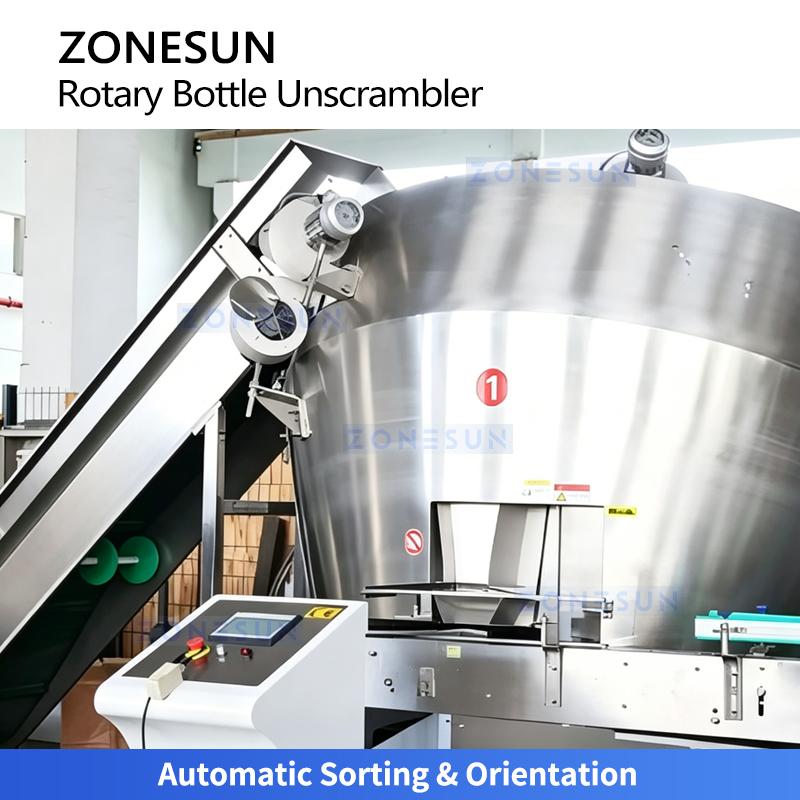

ZONESUN ZS-ULP18 Automatic Rotary Bottle Unscrambler Bottle Sorting and Orienting

Description

The ZONESUN ZS-ULP18 is a fully automatic rotary bottle unscrambler designed to sort, orient, and flip disordered plastic bottles including PE, PP, PET, and HDPE. With a maximum capacity of up to 6,000 bottles per hour, it integrates an automatic feeding system, sorting mechanism, flipping unit, and conveyor transfer section to deliver bottles in a stable, upright, and correctly oriented direction to downstream equipment.

Equipped with a PLC-based smart control system, the machine automatically adjusts its operating speed to synchronize with the filling or capping line. The rotary structure ensures high efficiency, smooth bottle handling, and reliable performance for medium to large-scale production lines.

Technical Specifications

Model: ZS-ULP18 Work Stations: 18 Max Capacity: 6,000 BPH Bottle Diameter Range: 50–96mm Bottle Height Range: 165–310mm Air Pressure: 0.7 MPa Air Consumption: 1.5 m³/min Main Power: 1.5 kW Hoist Power: 0.75 kW Overall Dimensions: Φ2300 × 2340mm Machine Weight: 3,400 kg

Manufacture Country: China
