Sanwa Supply SW-HDR21BD 4K/HDR/HDCP2.2 Compatible HDMI Switcher (2 Inputs/1 Output or 1 Input/2 Output)

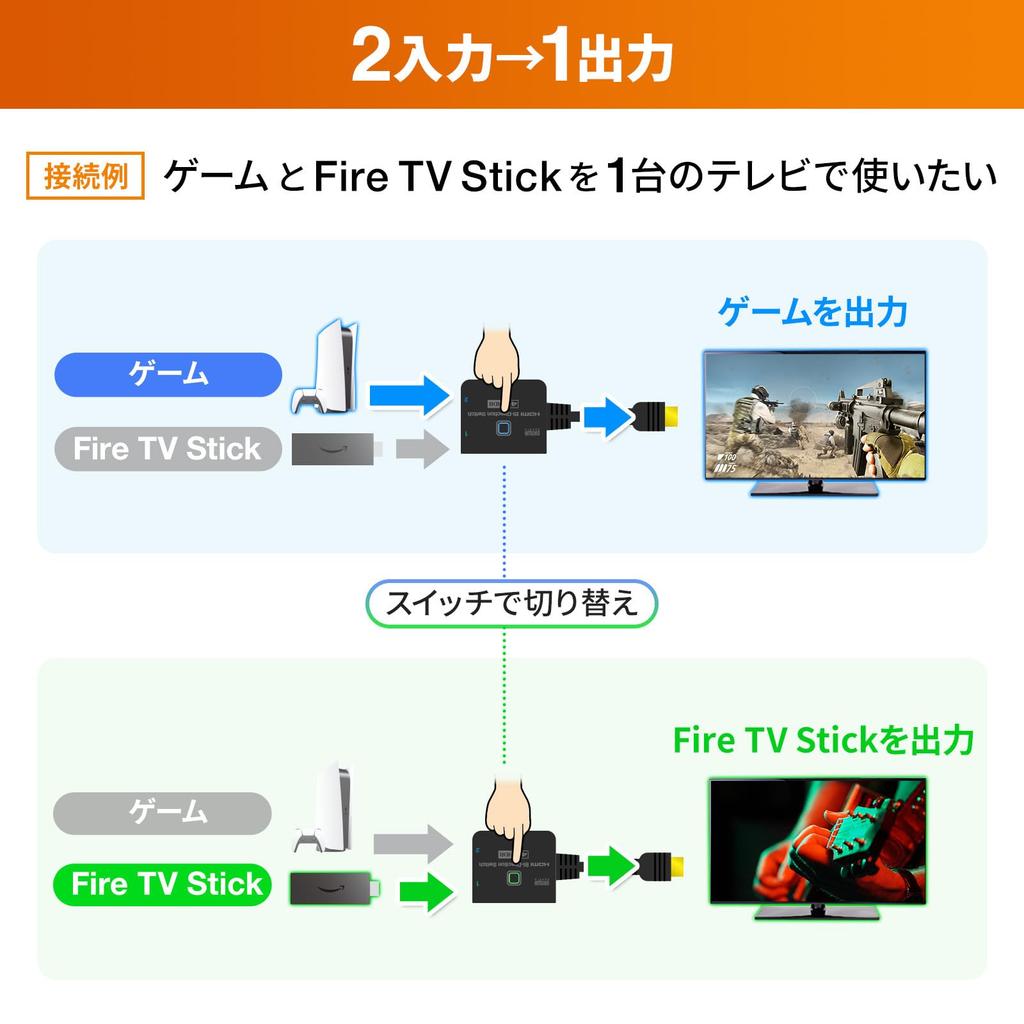

● This is a bidirectional HDMI switch that allows you to switch between two HDMI devices to output to one TV, or switch one HDMI device to output to two TVs or projectors.

*No distribution output function. (*Simultaneous 2-way distribution output is not possible) ● Supports 4K/4096×2160 (60Hz, 4:4:4, 24bit (maximum)), allowing you to output beautiful, high-definition HDMI signals for games and other applications.

(4K/60Hz output/only when the cable length between the switch and monitor is 1.5m or less) (4K/30Hz output/only when the cable length between the switch and monitor is 4m or less) ● Supports high-brightness HDR (High Dynamic Range) and HDCP2.2.

● This is a fully manual switch that switches using only button operation.

● Highly visible LED display lets you see at a glance which device is selected.

● Supports Dolby True HD and DTS HD Master Audio.

● Compatible with PlayStation 5(R). ≪Notes≫ * "PlayStation," "PLAYSTATION," "PlayStation," "PS5," and "PS4" are registered trademarks of Sony Interactive Entertainment Inc. * Nintendo Switch is a trademark or registered trademark of Nintendo. * Operation is not guaranteed with all HDMI devices. * To play 4K/HDR video, all equipment, cables, and software must be compatible with the 4K/HDR standard. ≪Regarding Screen Display Time During Switching≫ When switching ports, it usually takes about 3 to 5 seconds for the image to appear. This is not a problem with this product, but rather the time it takes for the HDMI device (such as a recorder) to recognize the display and start outputting video, and is due to the performance of the HDMI device. This product itself completes the port switching the moment the switch button is pressed.

■Interface: Input/Output / HDMI Type A (19-pin) Female x 2 Input/Output / HDMI Type A (19-pin) Male x 1 ■Switching Options: HDMI Input 2 / HDMI Output 1 or HDMI Input 1 / HDMI Output 2 ■Switching Method: Switch button on the unit ■HDMI Standard: HDMI Ver2.0b ■HDCP: HDCP1.4, HDCP2.2 ■Data Rate: 18Gbit/s (Max) ■Pixel Clock: 600MHz (Max) ■Maximum Resolution: 4K/60Hz ■Main Supported Resolutions: 4096×2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0) *Color depth is only supported at 8-bit when outputting 4K/4096×2160 (60Hz, 4:4:4). 3840×2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0) 1920×1080p (60/50/30/24Hz) 1920×1080i (60/50/30/24Hz) 1280×720p (60/50Hz) 640×480p (60/50Hz) *Depends on the resolution of the connected TV or monitor. ■HDR: Supported ■Supported Audio Formats: LPCM 2/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS ■Input DDC Signal: 5V ■Cell-to-Device Control (CEC): Supported *Operation is not guaranteed with all devices.

■Cable Length: Approx. 50cm ■Power Consumption (Max): 5W ■Operating Temperature and Humidity: Temperature/0-50℃, Humidity/80% or less (non-condensing) ■Storage Temperature and Humidity: Temperature/-20-60℃, Humidity/80% or less (non-condensing) ■Product Size: W65×D54.5×H20.5mm ■Weight: Approx. 92g ■Set Contents: Main unit, instruction manual/warranty This is a bidirectional HDMI switch that allows you to switch between two HDMI devices to output to one TV, or switch one HDMI device to output to two TVs or projectors. *There is no distribution output function. *This product cannot output to two simultaneously. It supports 4K/4096×2160 (60Hz, 4:4:4, 24bit (maximum)), allowing you to output beautiful, high-definition HDMI signals for games and other applications. (4K/60Hz output/only when the cable length between the switch and monitor is 1.5m or less) (4K/30Hz output/only when the cable length between the switch and monitor is 4m or less) Supports high-brightness HDR (High Dynamic Range) and HDCP2.2. This is a fully manual switch that switches using only button operation.
