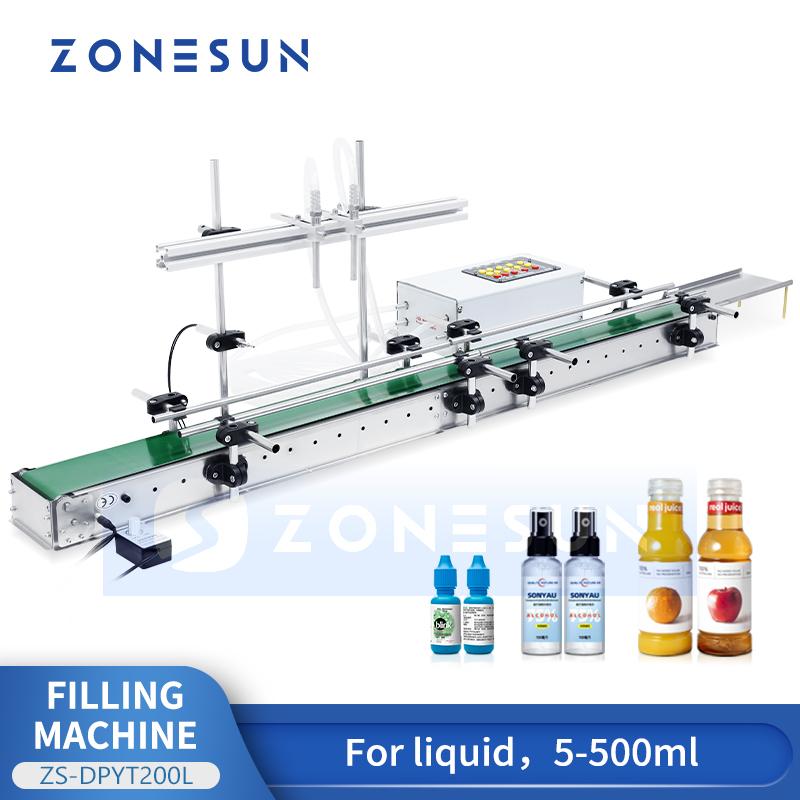

ZONESUN ZS-DPYT200L Automatic Water Milk Filling Machine Perfume Juice Bottle Vial Double Heads With Longer Conveyor

Feature

1.The filling speed of two nozzles can be controlled separately, easy to operate.

2.The conveyor belt is lengthened, whose length is 1200mm, greatly improving work efficiecy. It is also with waterproof function.

3.With digital control panel, it is easy to set parameters like filling time.

4.With intelligent electric eye, it can detect bottles accurately.

Parameter

Machine Model: ZS-DPYT200L

Voltage: 110V/220V 50-60Hz

Filling Range: 5-500mL*2

Max Flow Rate: 3L/min (based on water)

Filling Speed: 1-99 (Adjustable)

Filling Time: 0.1-999s

Applicable Bottle Size: Diameter: 0-100mm   Height: 0-300mm

Diameter of Filling Nozzle: OD 9mm

Hose Length: 0.8m(inlet)/1.2m(outlet)

Conveyor Size: 1200mm(L)*100mm(W)

Liquid Temperature: Max 60℃

Conveyor Belt: Waterproof

Memory Function out of power: Available

Machine Size: About 295mm*155mm*115mm

Net Weight: 7.3kg

Package Size: 670*190*160mm(conveyor belt), 350*210*160mm(host machine)

Gross Weight: 9.8kg

Application

This machine is suitable for filling liquid which is without particles, such as essential oil, juice, milk, etc. It is in small size, which is an ideal choise for indivisual workshop.
