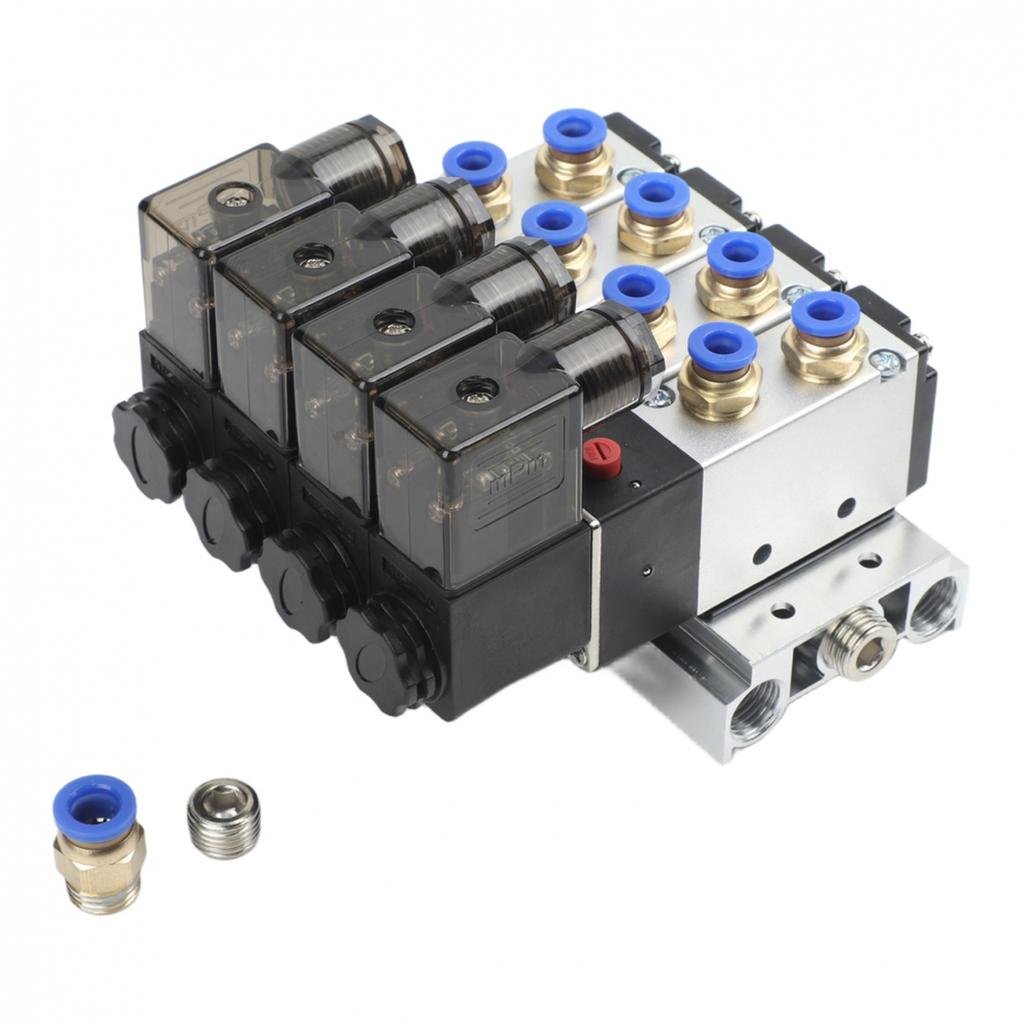

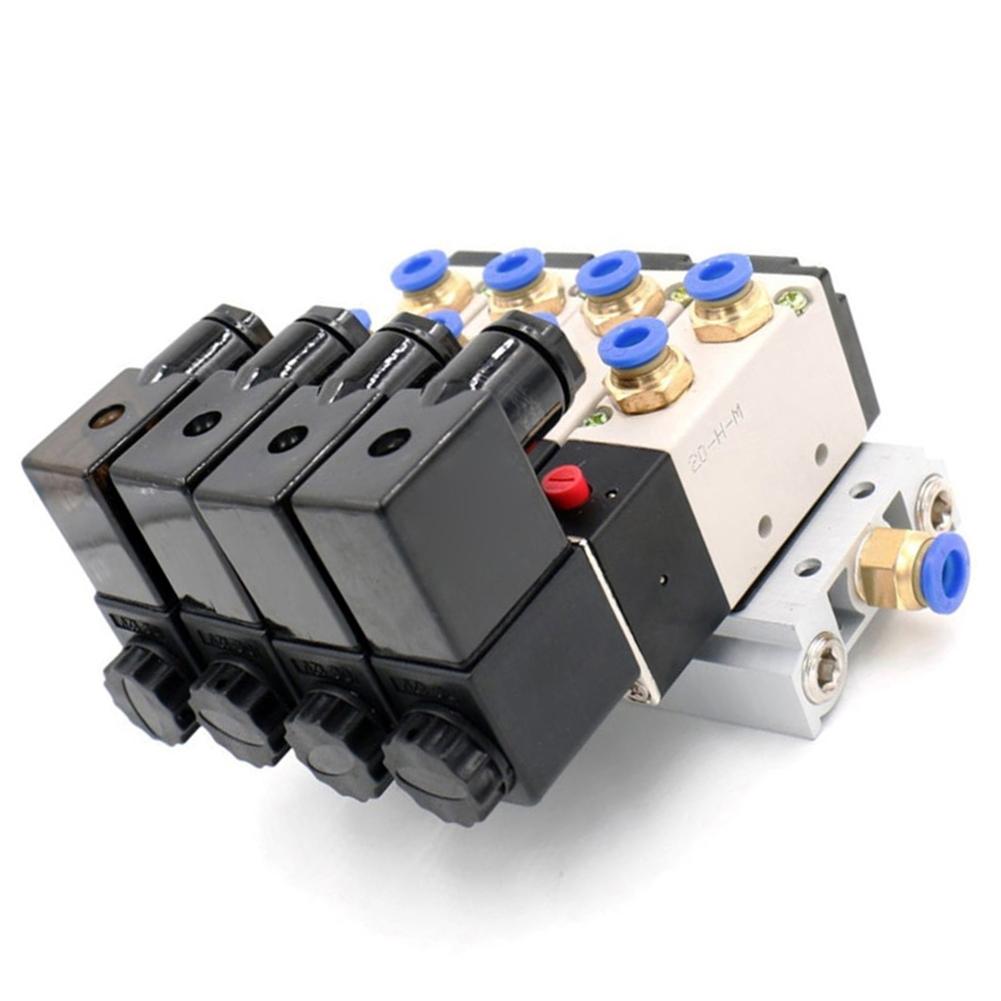

2 Locations And 5 Roads; Valve 4V210-08 Base: 8mm/5/16'';

Features: * and * Made of materials, * Small size, easy to disassemble and assemble. * Manually press the button to test the power-on status of the product. The two air inlets cannot be used at the same time. When using, the needs to be inserted on o ne side. * The valve body is made of aluminum alloy, which has strong pressure resistance, good sealing performance, and is safe and reliable to use. * The inner hole is processed by special technology, with low friction resistance, low starting air pressure and long service life. * Please pay attention to the air fl ow direction and correct connection when installing. Watch out for . It is for recommended to install a muffler at the for exhaust port. * The air solenoid valve is a single control solenoid valve with for Pilot-operated structure and valve core structure, with good sealing performance and sensitive response.

Specification: Model: 4V210-08 Working pressure: 0.15~0.8Mpa Working voltage: DC 24V Location and number of roads: 2 locations and 5 roads; Quick connector inner diameter: solenoid valve: 6mm/1/4'', base: 8mm/5/16''; (approx.) Mounting hole diameter: 4mm/ 5/32" (approx.) Muffler dimensions (thread D*L): 12.5 x 28.5mm / 0.5'' x 1.1'' (approx.) Total dimensions (length*width*height): 153 x 117 x 90mm / 6'' x 4.6'' x 3.5'' (approx.) Net weight: 1100g (approx.)

Package Included: 4 x 4V210-08 solenoid valve 1 x 4-piece base 8 x PC6-02 1 x PC8-02 2 x muffler02 3 x 02

Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
