voltage, fit for 12-84V electric bike or scooters, can identify voltage automatically, timely indicating
By turning the real-time voltage value can accurately determine the amount of the remaining amount of electricity
To avoid traveling on the way without electricity and accurate judgment of the lithium battery is damaged
Description:
The digital data display, not that common analog signal display, which can accurate judge rest battery and rest distance can indicate vehicle error according to voltage. This throttle indicates battery by digital data display, you can judge your rest battery according to your battery voltage, can also check your battery condition after you d it full. It is a throttle for electric bike, scooter , tricycle, and other electric vehicle.
Features:
1. voltage, fit for 12-84V electric bike or scooters, can identify voltage automatically, timely indicating. (12V, 24V, 36V, 48V, 60V, 72V electric vehicles can be used directly, part of the 84V electric vehicles can also be used.)
2. By turning the real-time voltage value can accurately determine the amount of the remaining amount of electricity.
3. To avoid traveling on the way without electricity and accurate judgment
of the lithium battery is damaged.
4. By turning the real-time voltage value can accurately determine the quality of lithium battery.
5. Automatic to identification electric vehicles voltage under 100V, used and real-time display.
6. throttle for electric bike, scooter , tricycle, and other electric vehicle.
Specifications:
Material: Aluminium Alloy + Rubber
Color: Golden, Silver, Red, Blue (optional)
Package Weight: approx. 320g

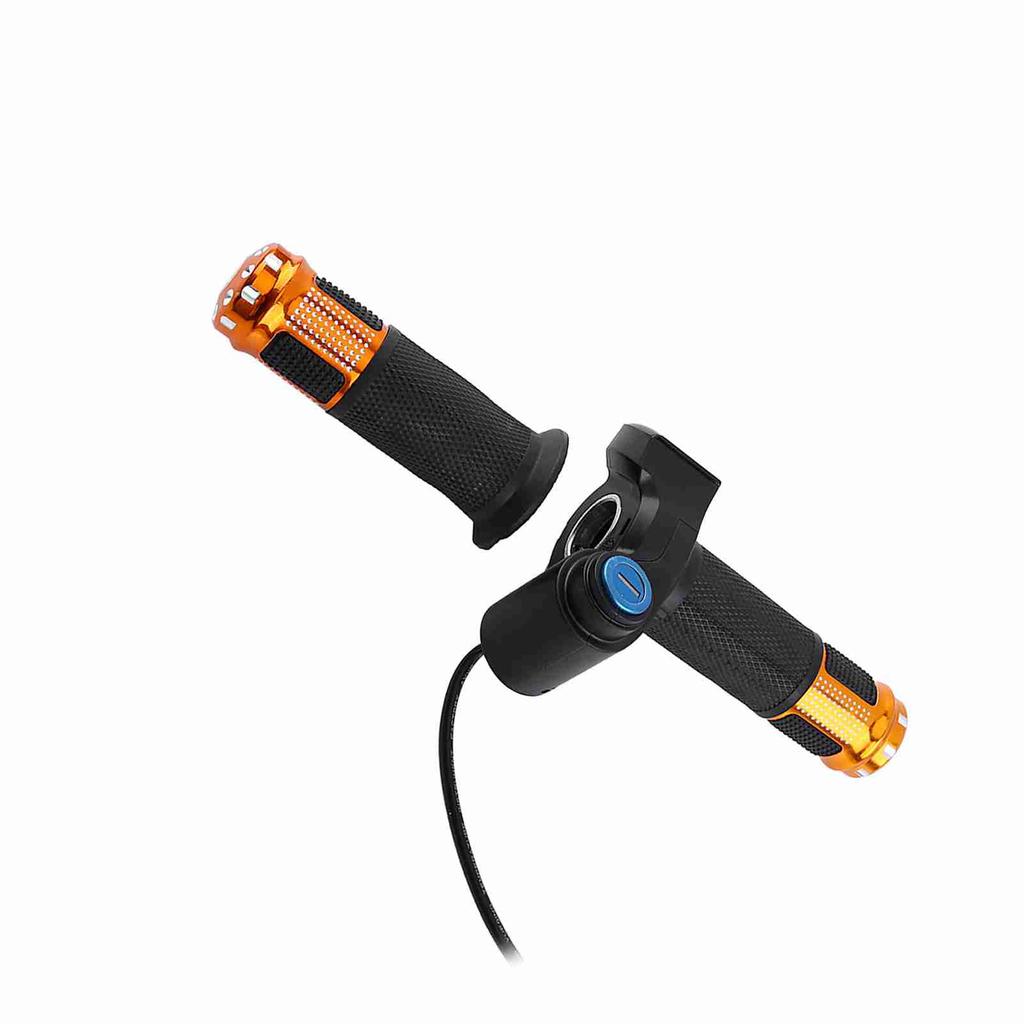

Type: Throttle with digital display and lock
Wire Length: approx. 1.8m Celsius 70.9
Install Hole Diameter: approx. 2.3cm Celsius 0.9
Working Voltage: Throttle 1-4.2V, battery indicator, 12-84v automatically identitify
Conpatible With: Suitable for 12V-99V Electric
Fitment: Fit for 22.2mm Diameter handle

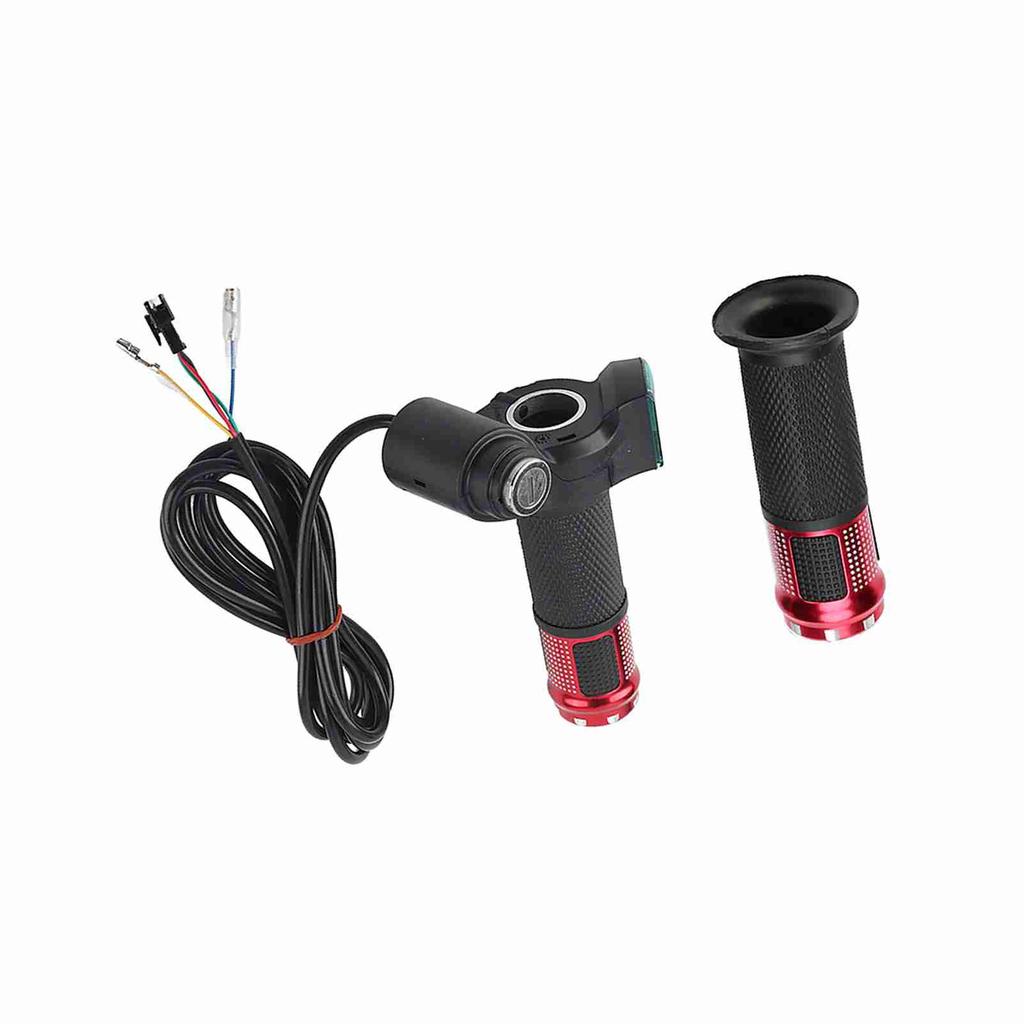

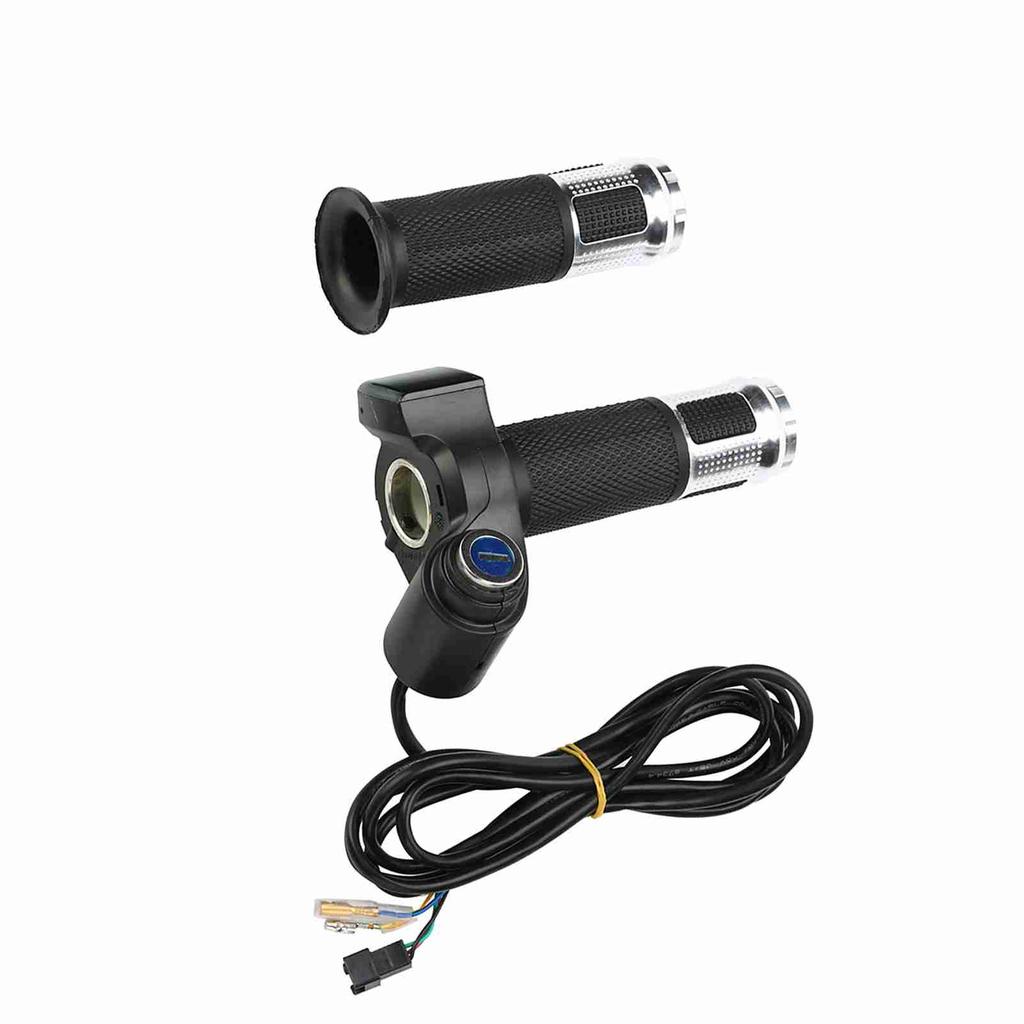

Five Wires:
Yellow is for power
Blue is for for controller power or electric , or key lock
Three throttle wires:
Red is for throttle + 5v
Green is for throttle signal wire
Black is for throttle negative

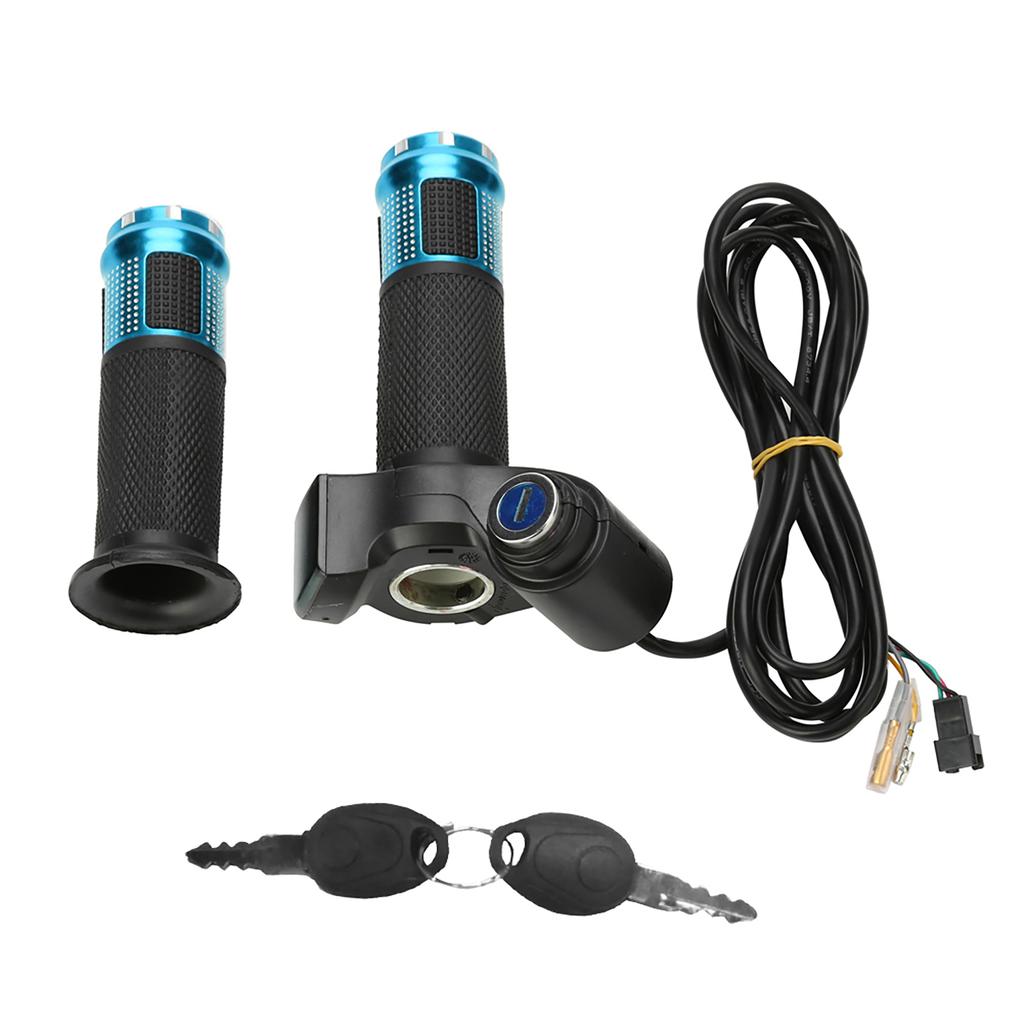

Package Included:
2 x Handlebars (1pc right handle, 1pc left handle grip)
1 x 1.8m Line
2 x Keys
Note:
1. When installing the non professionals, please pay attention to the line order, can not be connected to the wrong line, otherwise it is very easy to cause the burning of Holzer and LED tube.
2. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
3. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please in kind prevail.
4.
Common sense for battery voltage
Different battery materials, newCelsiusold condition of battery, and different controller data make battery voltage reflects differently. Please check your battery voltage data according to your battery. The imum voltage indicates full . The low voltage indicates that the battery is exhausted.
12V voltage 12V, min voltage 9V
24V voltage 29V, min voltage 21V
36V voltage 42V, min voltage 29V
48V voltage 54V, min voltage 39V
60V voltage 72V, min voltage 49V
72V voltage 84V, min voltage 60V
