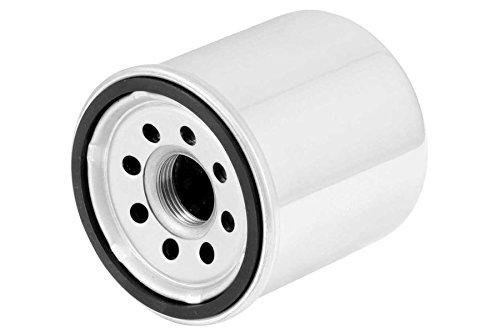

K&N Oil Filter/Chrome CBR1000RR/FZ1/N/ZX-12R KN-204C

• Compatible models: CBR1000RR・FZ1/N・ZX-12R etc.

• Compatible genuine numbers: Arctic Cat 3201044, Harley-Davidson 62700045, Honda 15410MCJ000, Honda 15410MCJ003, Honda 15410MFJD01, Kawasaki 160970002, Kawasaki 160970003, Kawasaki 160970007, Yamaha 1WDE34400000, Yamaha 5GH134402000, Yamaha 5GH134405000

• Cartridge type (chrome), top nut: 17mm, center screw size: M20 x 1.5

• Filter material: cellulose, height: 75mm, outer diameter: 68mm (height of cartridge type includes the wrench nut.)

• Anti-back function: Yes, bypass valve function: Yes

Product introduction

K&N's high-performance oil filter has gained tremendous trust as a high-flow air filter. Excellent filtration performance and increased oil flow rate reduce pressure loss through the filter and improve engine performance.

[Filtration effect] By using cellulose material impregnated with resin, it has a filtration performance of 10 to 20 microns and can remove even ultra-fine metal powder. Like air filters, the accordion structure increases the area in which the oil that passes through comes into contact with the filter, improving the filtration effect.

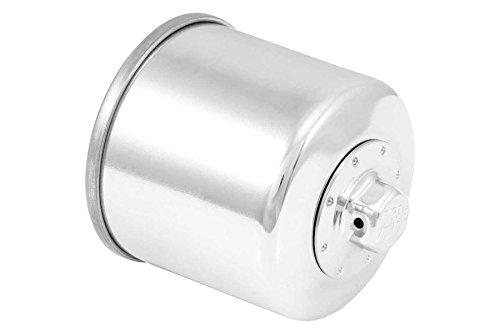

[17mm top nut (*cartridge type only)] The assembly replacement type has a 17mm nut on the top and can be easily removed. This makes maintenance and replacement extremely easy and quick. It also has a service hole for a wire lock, so you can use it with confidence even under harsh conditions such as racing.

[Anti-back function] Equipped with an anti-back valve to prevent oil backflow when the engine is stopped.

Type: Cartridge type Color [Color]: Chrome Weight [kilogram]: 0.2kg Material [Material]: Cellulose Compatible genuine numbers: Arctic Cat 3201044, Harley-Davidson 62700045, Honda 15410MCJ000, Honda 15410MCJ003, Honda 15410MFJD01, Kawasaki 160970002, Kawasaki 160970003, Kawasaki 160970007, Yamaha 1WDE34400000, Yamaha 5GH134402000, Yamaha 5GH134405000 Contents [Quantity]: 1 Outer diameter: 69mm Height: 73mm Product classification: Oil filter

Precautions for use

Cartridge type (chrome)

Caution (Disclaimer) > Please read carefully

*The published photos may differ from the actual product due to changes in manufacturer specifications. Thank you for your understanding.
