Joom: Безопасная зарядка вашего электровелосипеда или электроскутера
• Не оставляйте аккумулятор без присмотра, когда вы находитесь вне дома или спите.
• Не накрывайте зарядные устройства или аккумуляторные блоки во время зарядки.
• Не перегружайте розетки и не используйте неподходящие удлинители.
• Не заряжайте и не храните аккумуляторы под прямыми солнечными лучами или в помещениях с температурой выше 45⁰C.
• Не заряжайте аккумуляторы вблизи горючих материалов или опасных веществ.
• По окончании зарядки всегда отключайте зарядное устройство от сети.
• Всегда используйте только оригинальное зарядное устройство, подходящее для данного аккумулятора.
• Всегда обращайтесь к профессионалам при переоборудовании вашего электровелосипеда или электроскутера.
• Всегда проверяйте аккумулятор (и зарядное устройство) на наличие видимых повреждений.
-----
⚠️Note: In accordance with regulations in certain countries, the packaging label must not exceed 250W; please refer to the product manual for actual specifications.

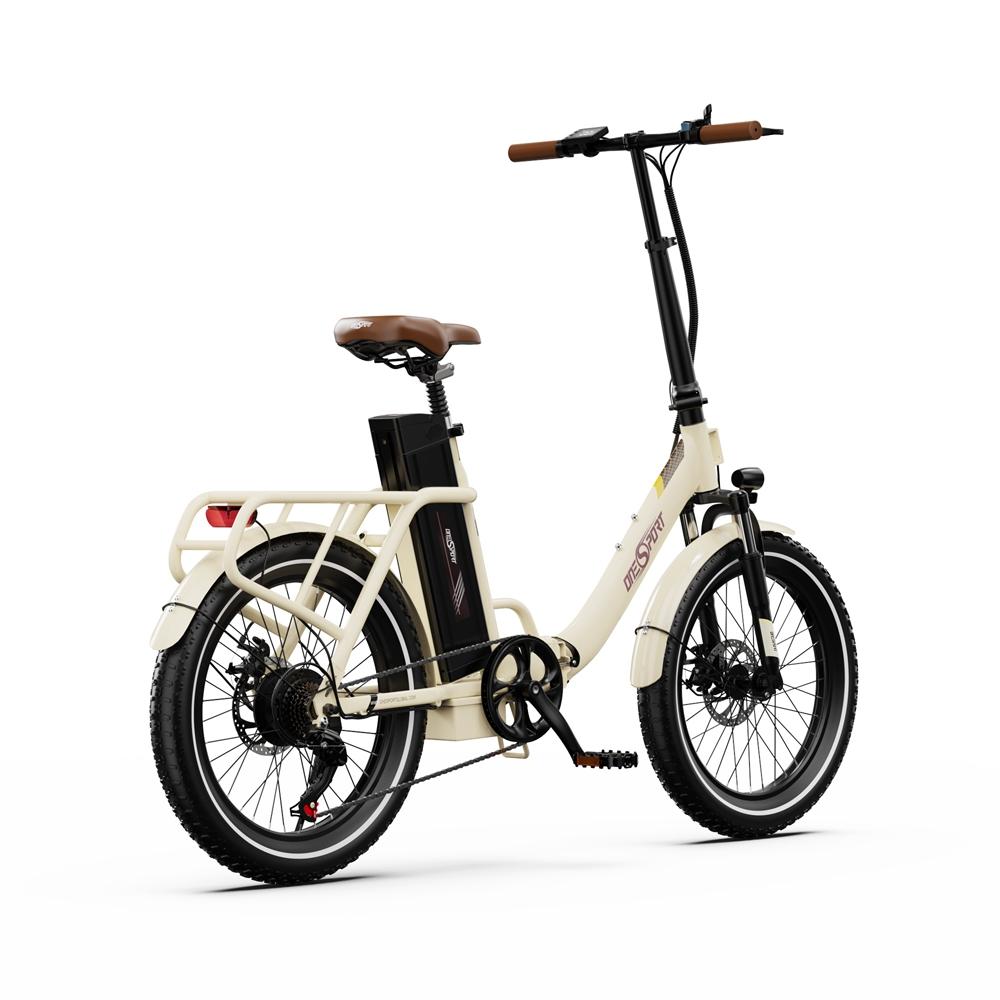

🚴 DUOTTS OT16-2 Folding Electric Bicycle – Lightweight, Portable, and Smart for Smart Travel

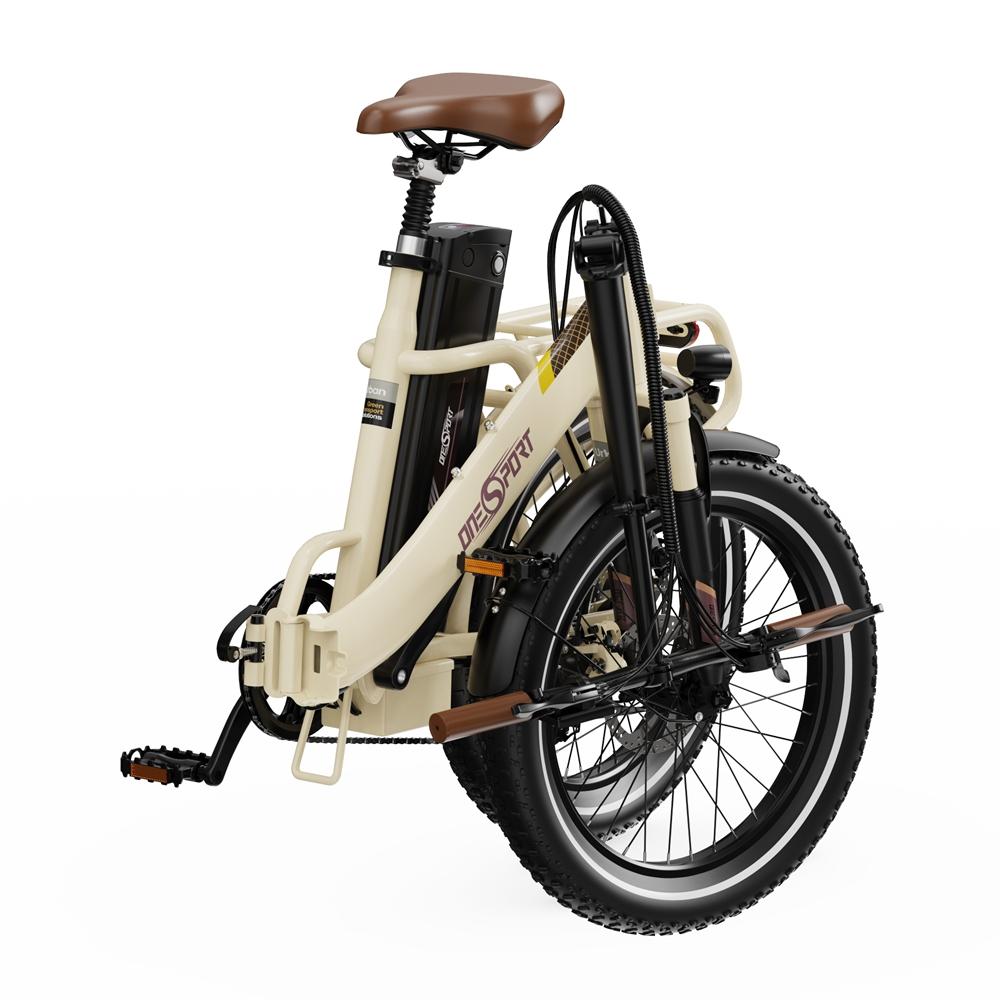

🔧 Frame: 20-inch high-carbon steel folding frame, sturdy and durable, easy to store.
Fork: Single-shoulder iron fork, stable and reliable.
Tires: 20×3.0-inch pneumatic off-road tires, strong grip, suitable for urban and light off-road conditions.
🛡️ Braking System: Front and rear cable brakes, direct braking response.
Mudguards: Front and rear mudguards, prevents mud splashing during rainy rides.
Instrument Panel: 2.4-inch LCD screen, supports ONESPORT EBIKE APP Bluetooth connection, real-time viewing of riding data.
🔋 Motor: 48V 250W silent motor, 40N·m torque, smooth start, easy climbing.
Battery: 48V 17Ah high-capacity lithium battery, 50km pure electric range, with extended range in assist mode. 100km (Test conditions: 60kg load, 25km/h speed, flat road surface, 23℃ environment)
🚀 Transmission System: Shimano 1×7-speed transmission, smooth shifting
Riding Modes: Pedal assist (speed sensor), pure electric, and riding modes can be freely switched
Controller: Sine wave controller (48V 15A Jinghui), quiet and smooth operation
Waterproof Rating: IPX5, rain and splash resistant
🪑 Seat Post: Aluminum alloy material, lightweight and rust-resistant
Saddle Height: Adjustable from 770-900mm above the ground
Suitable Height: 160-200cm
Maximum Load: 150kg
📦 Dimensions and Weight
Product Dimensions: 1640 × 560 × 1050 mm
Packaging Dimensions: 910 × 380 × 745 mm
Net Weight: 29.7 kg (±3%-5%)
Gross Weight: 36.5 kg (±3%-5%)
💡Performance Summary
Maximum Speed: 25 km/h (Complies with national standards, speed limit cannot be removed)
Maximum Climbing Angle: 30°, easily handles urban slopes
Charging Time: 8-10 hours (Standard 54.6V 2A charger included)
📦Package Contents
Charger × 1
Instruction Manual × 1
Tool Kit × 1
Pedals × 1
Air Pump × 1
Phone Bag × 1
Bell × 1
Cable Tie × 1
