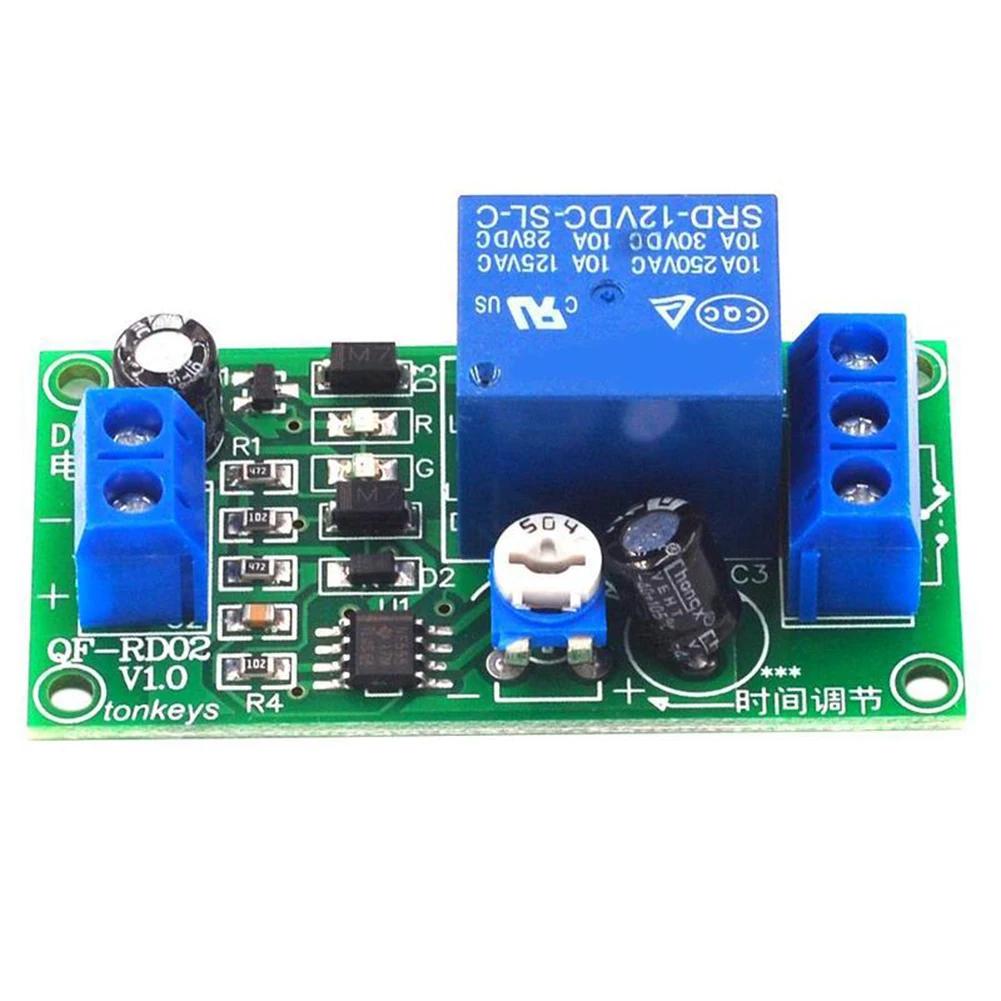

Time Delay Relay Module Timer Relay Timer Switch Board 12V DC 0-60s Adjustable Switch Board Timing Turn Off Board NE555

Good luck with your favorite purchases Time Adjsutable Delay Relay Module NE555 Timming Timer Relay Control Switch Board 12V DC Feature: Using NE555 IC.  The delay range is 60 seconds adjustable.

Specification: Working voltage: 12V DC, allowable range 10V-14.5V Suction current: 45mA 12V, 80mA 6V Quiescent current: 5mA Load switching capacity: 10A 250V AC or 10A 30V DC Size: 55mm x 28mm, height <20mm Product weight: 19g

Note: There may be slight size deviations due to manual measurement, different measuring methods and tools. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

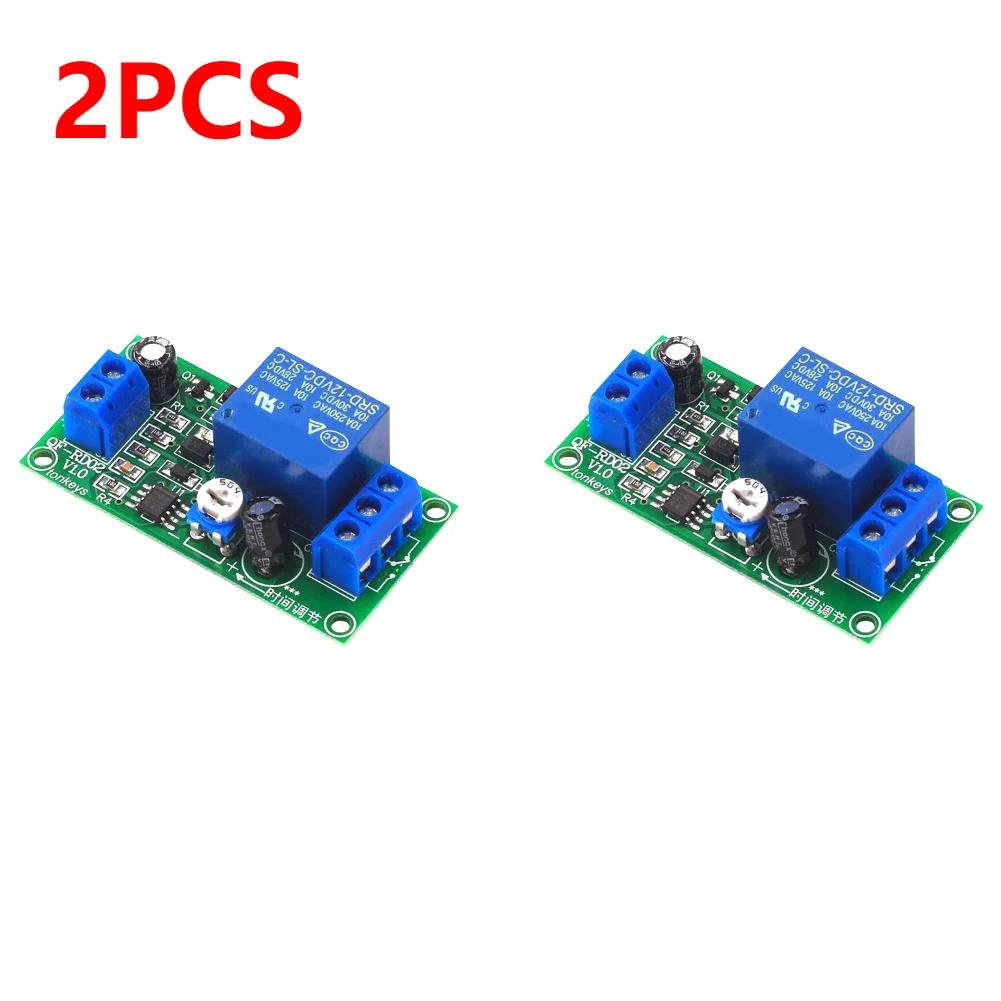

1 X Delay Relay Module
