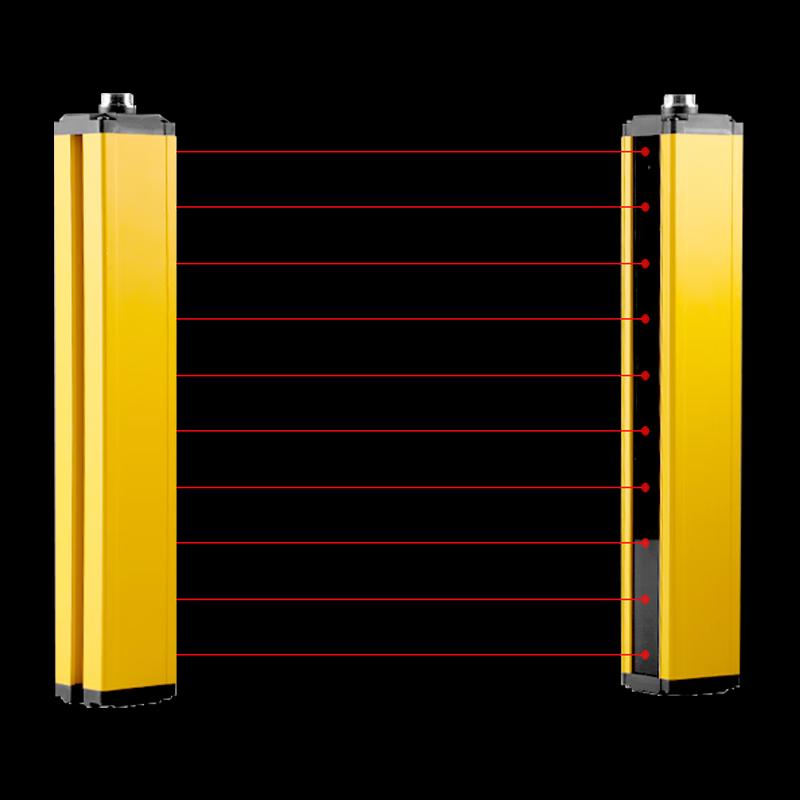

ASETTLE Type 4 Safety Light Curtain Sensor 35x35mm

The ASETTLE Type 4 Safety Light Curtain Sensor provides reliable personnel protection with its compact 35x35mm design. Featuring 12 optical axes with a 40mm beam pitch and 440mm protection height, it utilizes infrared through-beam detection. Built with a durable stainless steel casing and FCC certified, this photoelectric sensor offers NPN/PNP control output via a 3m cable, ensuring safety in industrial environments.

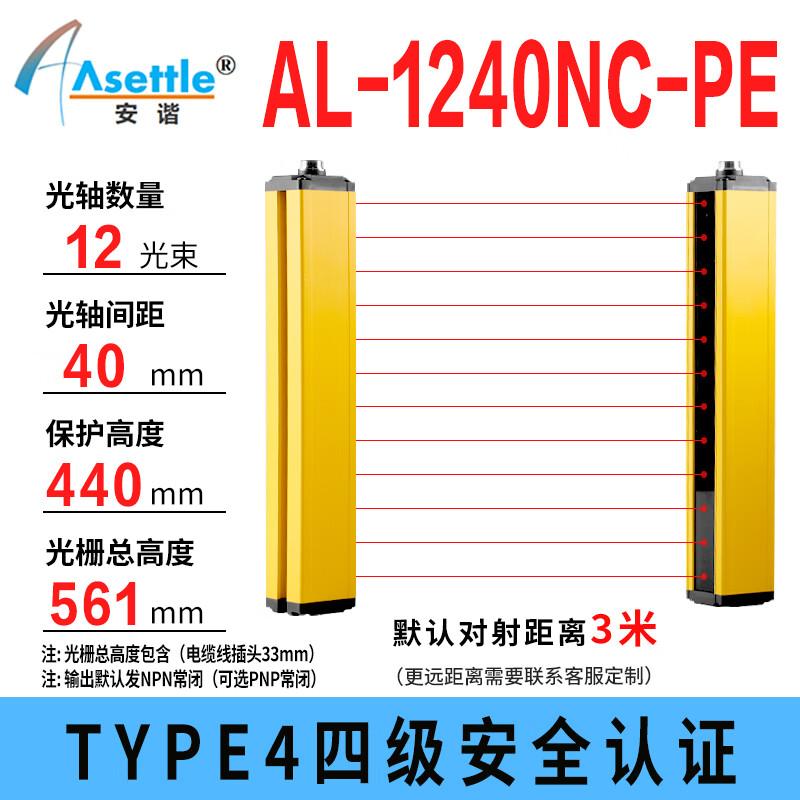

Wiring method: Cable 3m Standard test object: NPN/PNP Applicable temperature: 55℃ Dimensions: 35*35mm Output current: 200mA Optical axis distance: 40mm Product Series: Level 4 Grating 35*35mm AL Series shell material: Stainless steel type: photoelectric sensor Connection: Cable connection Detection method: Opposite-shooting type series: other model: AL1240NC-PE【12 Light Points, Protection Height 440mm】 Product Size: 35mm Is it explosion-proof?: Not explosion-proof category: Safety light curtain Storage environment temperature: 50 Packing Specifications: 1 set Response time: 50 weight: 1 Control Output: Relay/Transistor (NPN PNP)
