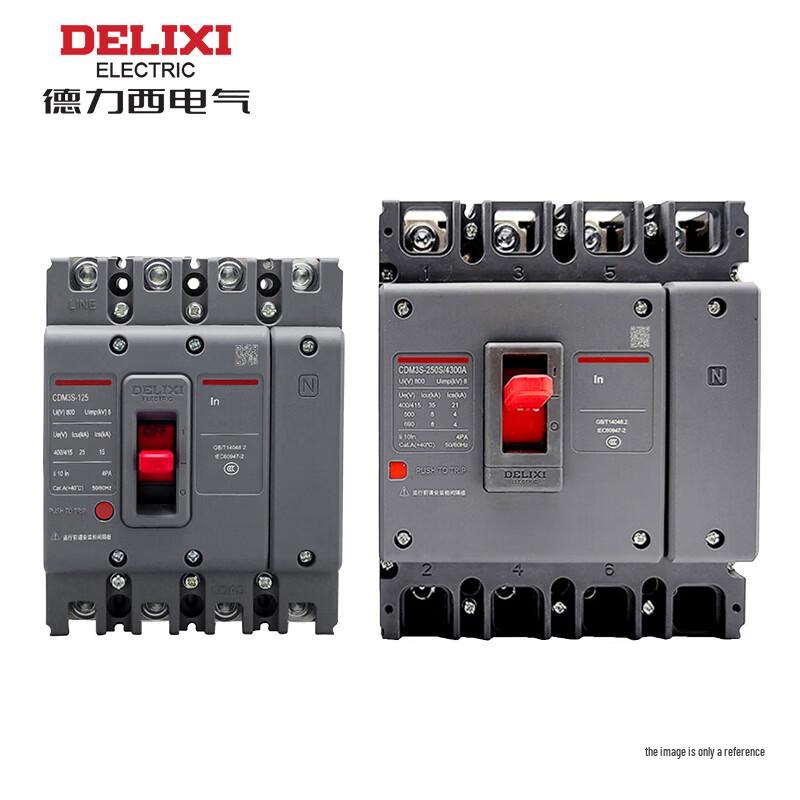

DELIXI Electric CDM3S Moulded Case Circuit Breaker

The DELIXI Electric CDM3S Series Moulded Case Circuit Breaker (MCCB) is a reliable protection device designed for various electrical applications. This 3-pole, manual control breaker features a 125A frame current, 40A rated current, and a high breaking capacity of 35kA. It operates at 400/415VAC and utilizes thermal-magnetic trip technology for effective circuit protection. Designed for top-in, bottom-out wiring.

Rated current: 40A UPC code: 100009468785 Rated voltage: 400/415VAC Housing rated current: 40A Residual operating current: 30mA shell current: 125A Action Type: none Residual current protection type: none Wiring method: Upward progress, downward exit Leakage action current: none Order Number: M3S125SX403300 Control method: Manual series: 3P breaking capacity: 35kA
