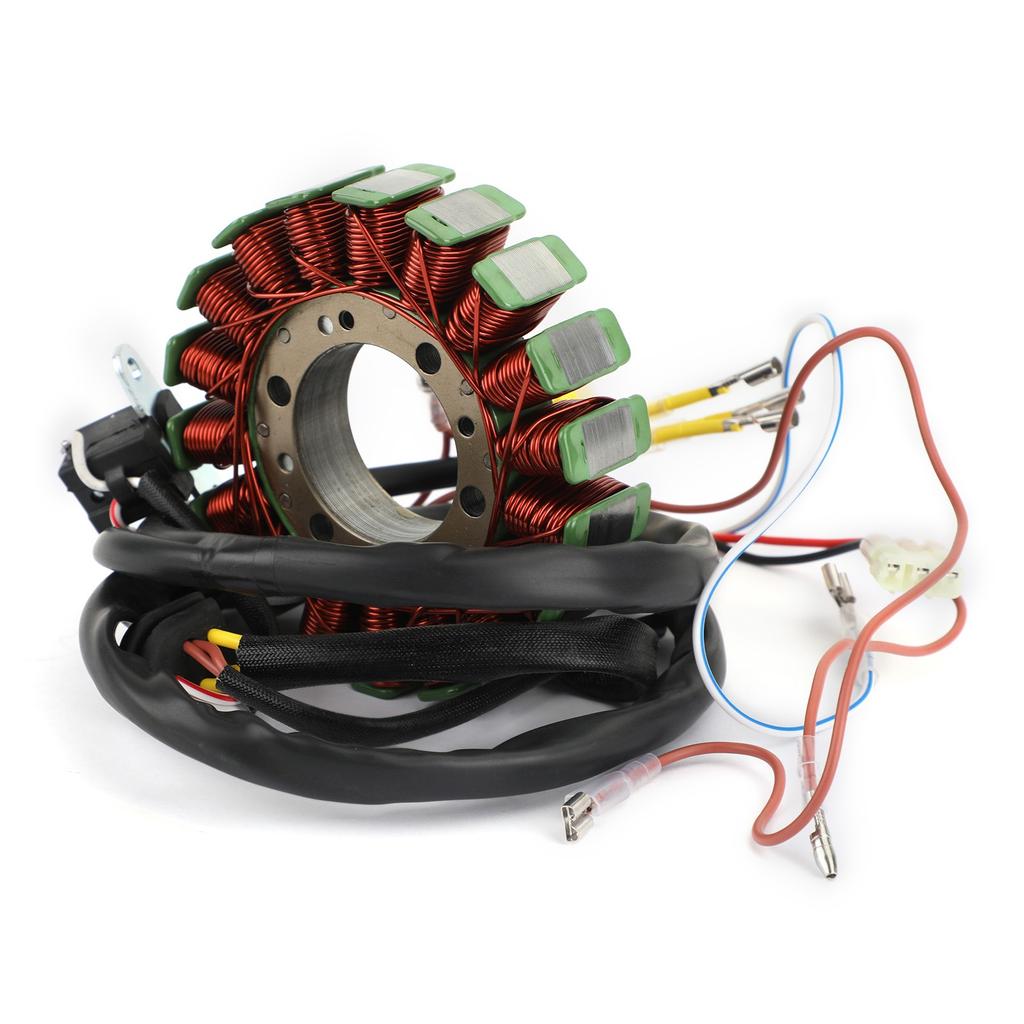

Magneto Stator Generator Fit for Polaris 500 Sportsman Ranger 2005-2009 3089579

Magneto Generator Engine Stator Fit For Polaris Ranger 500 2x4 2006 2007 2008

Features: Direct replacement to your original unit Plug-and-play, direct fit, easy installation. Highest grade lamination materials. Highest grade copper windings, resistant to 200 degrees Celsius. Pick up pulsar coil included. Connector included. All products shipped are tested.

Specifications: Condition: Aftermarket 100% Brand New Quanity: 1PC Type: Generator Stator Coil

Dimensions : Interior diameter : 42mm / 1.65 inches Exterior diameter : 107mm / 4.22 inches Pole's Thickness : 27.9mm / 1.09 inches Pole's Width : 13mm / 0.51 inches

Other Specifications : Number of wires: 7 Number of pins: 17 Number of plugs: 10 Number of fixation holes: 5 Number of poles: 18

PART NUMBER(S): 3089579

Fitments: Fit for Polaris Ranger 500 2X4 2008 Fit for Polaris Ranger 500 2X4 CARB 2009 Fit for Polaris Ranger 500 2X4 CARB ISRAEL 2007-2008 Fit for Polaris Ranger 500 2X4/4X4/6X6 2005 Fit for Polaris Ranger 500 2X4/4X4 2006-2007

(Compatibility Chart is for Reference ONLY!!!) (Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included: 1x Generator Stator Coil

NOTICE: Before installing your new stator

Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier. Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
