In-Ground Recessed Lamp Gu10 Ip65 Ik09 Square Catio 2

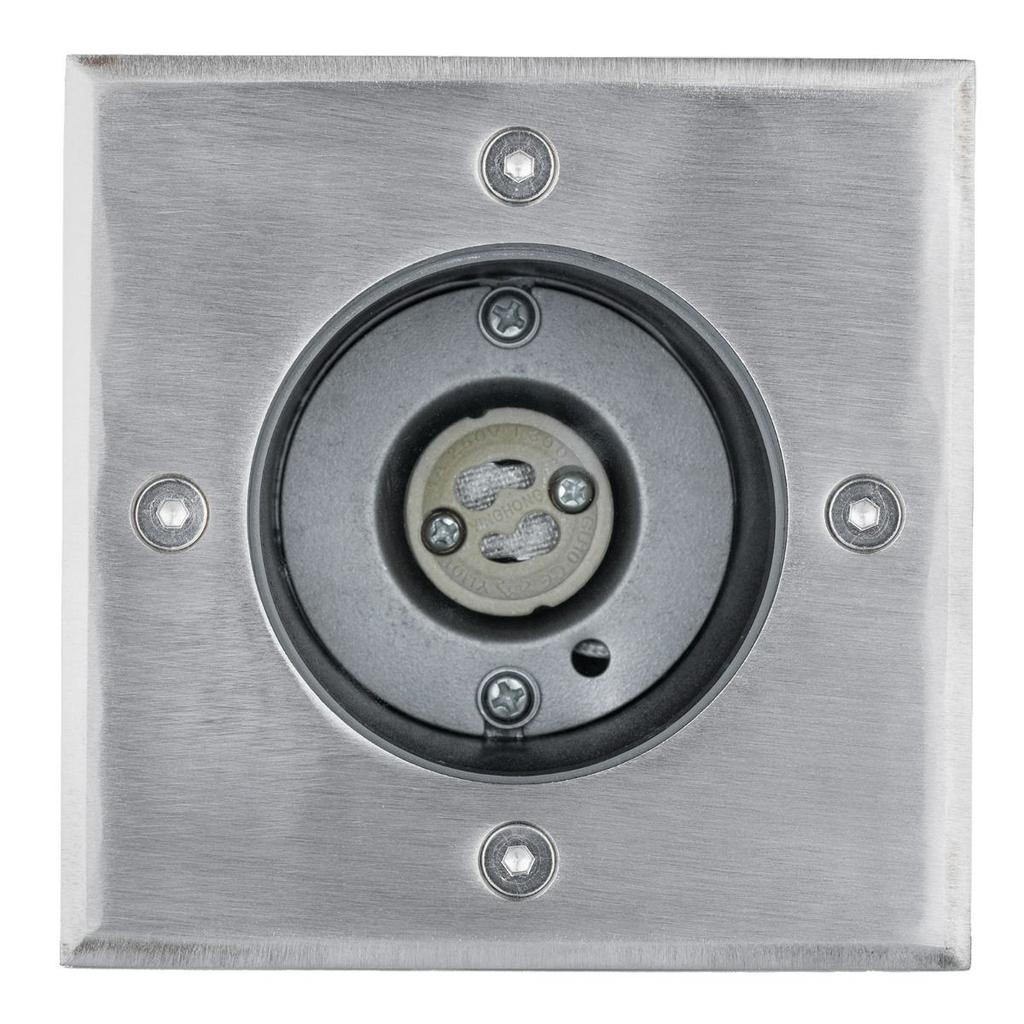

Lumiled GU10 In-Ground Downlight IP65 IK09

is a robust outdoor fixture, ideal for illuminating paths, patios, driveways, and parking lots. Thanks to its high ingress protection rating of

IP65

and mechanical resistance of

IK09

, the fixture is resistant to harsh weather conditions, including rain, snow, and mechanical damage. Made of durable stainless steel, aluminum, and tempered glass, it provides a safe and long-lasting lighting solution. The CATIO 2 series fixture by Lumiled

is equipped with a

GU10

base, allowing you to replace the light source with an LED or halogen lamp with a maximum power of 12W (LED) or 50W (halogen). The fixture's body allows for stable ground mounting, which increases its load capacity, and the

3x0.5mm

25cm long cable allows for quick connection of the lamp without disassembling the structure. The fixture fits perfectly into the aesthetics of modern outdoor designs, highlighting the qualities of the illuminated environment.

Key Product Features

Material:

Stainless steel, aluminum, polycarbonate, tempered glass

Base:

GU10

Ingress Protection Class:

IP65 – weather resistance

Impact resistance class:

IK09 – load resistance up to 95 kg/cm²

Voltage:

220-240V

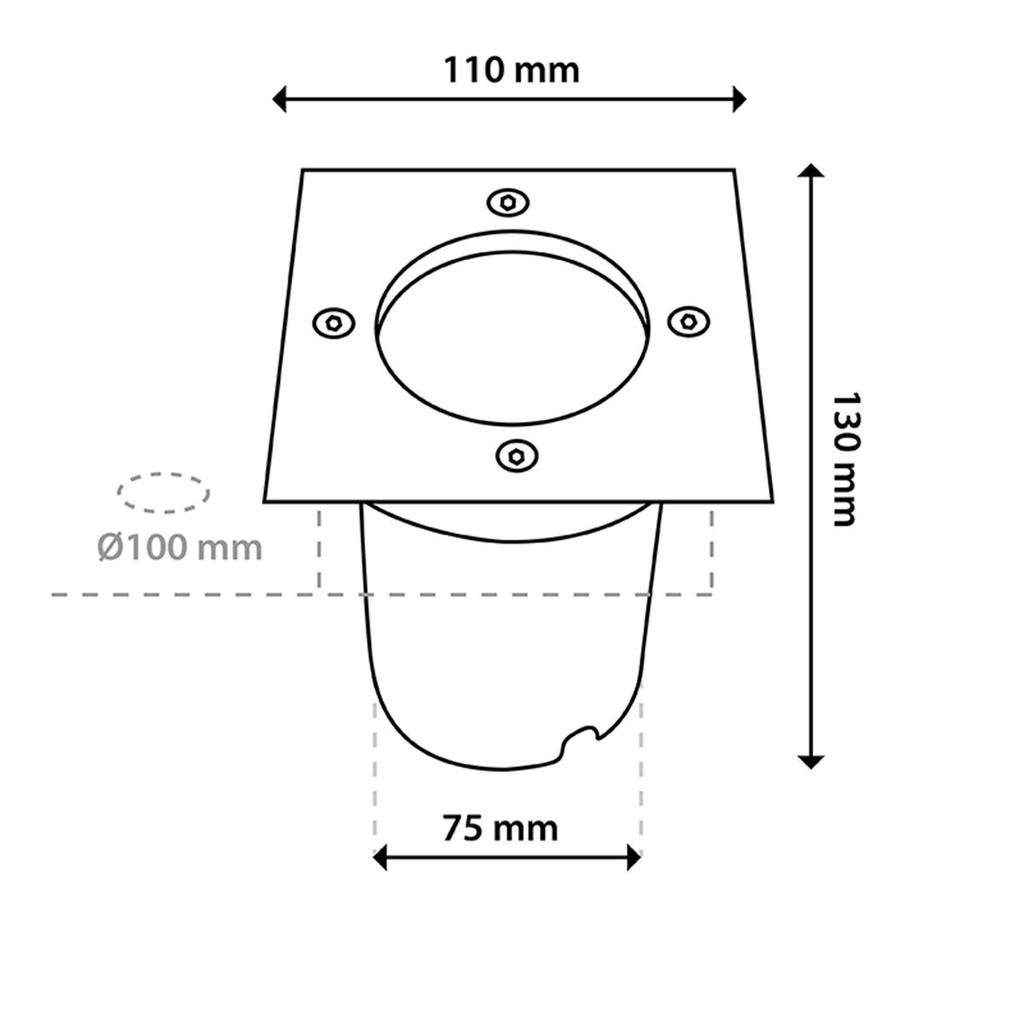

Dimensions:

128 x 110 mm, height 13 cm

Certifications:

CE, RoHS

Application

Outdoor lighting

– ideal for driveways, paths Gardens, patios, and parking lots.

Aesthetic and durable

– Construction made of high-quality materials ensures longevity and resistance to damage.

Safety

– Complies with CE and RoHS standards, environmentally and user-friendly.

Installation instructions

Prepare a hole in the ground according to the dimensions of the fixture.

Make sure the cable is connected to a 230V power supply. Install a light source with the appropriate GU10 thread (max. 12W for LED).

Place the fixture in the opening and secure it according to the instructions.
