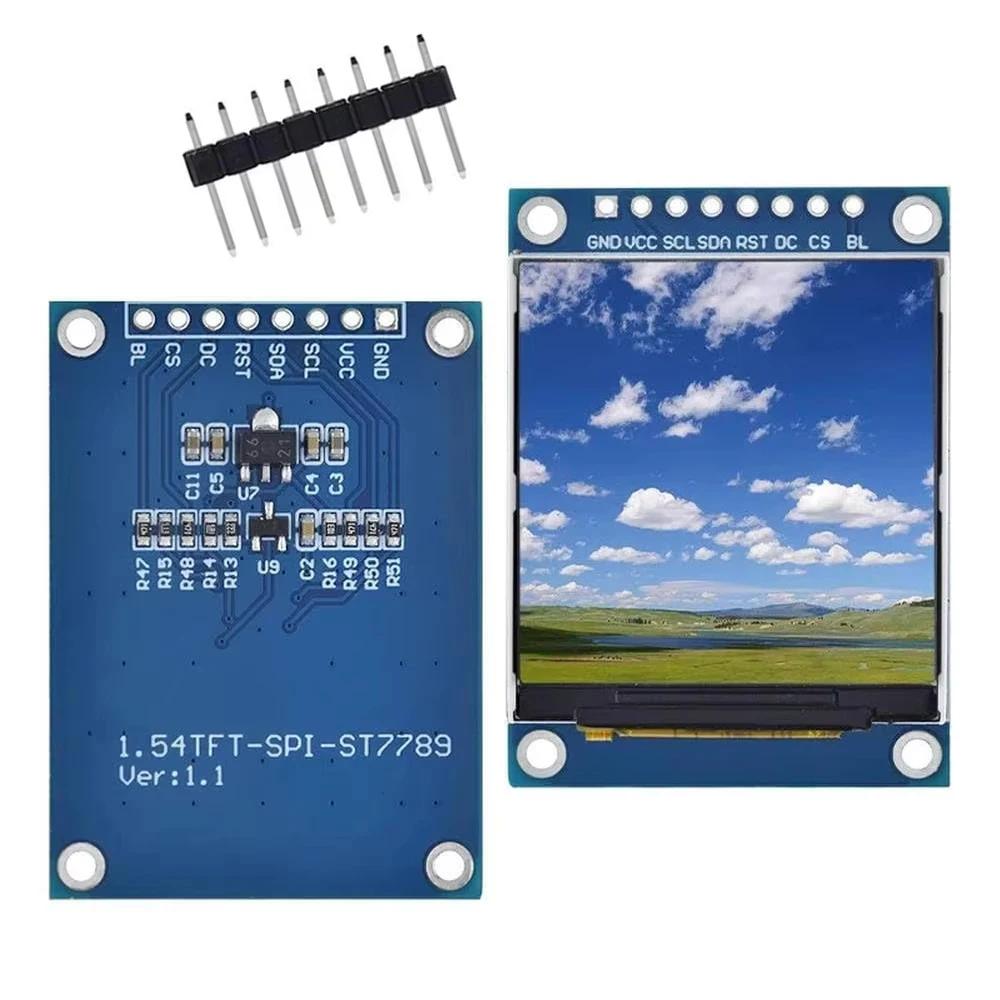

1.54 Inch 1.54" Full Color TFT Display Module HD IPS LCD LED Screen 240x240 SPI Interface ST7789 For Arduino

240x240 pixel 1.54 inch IPS tft lcd display with ST7789 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI. It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image. It's 4-wire serial spi interface with pin header connection. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi. It can be used in any embedded systems,industrial device,security,medical and hand-held device. Specification

Display Format 240x240 Dots

Interface4-Wire Serial SPI

IC or EquivalentST7789VW

AppearanceRGB

Diagonal Size1.54"

ConnectionMetal Pin

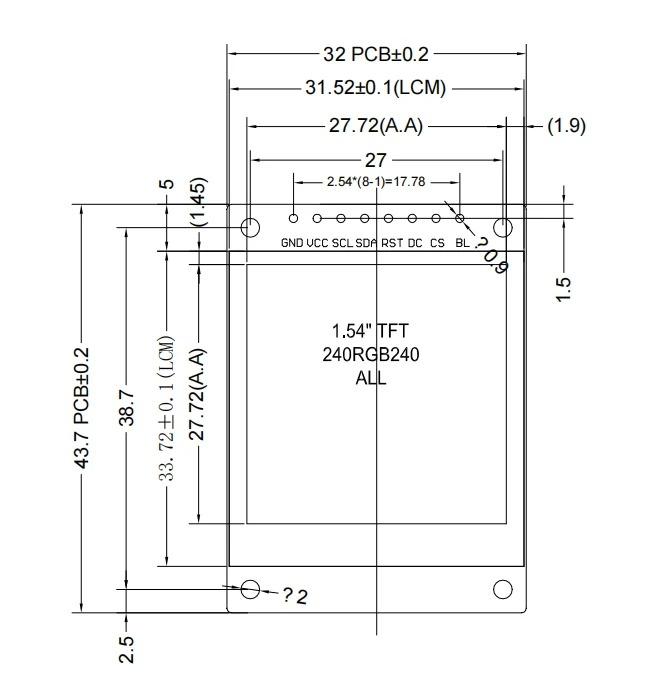

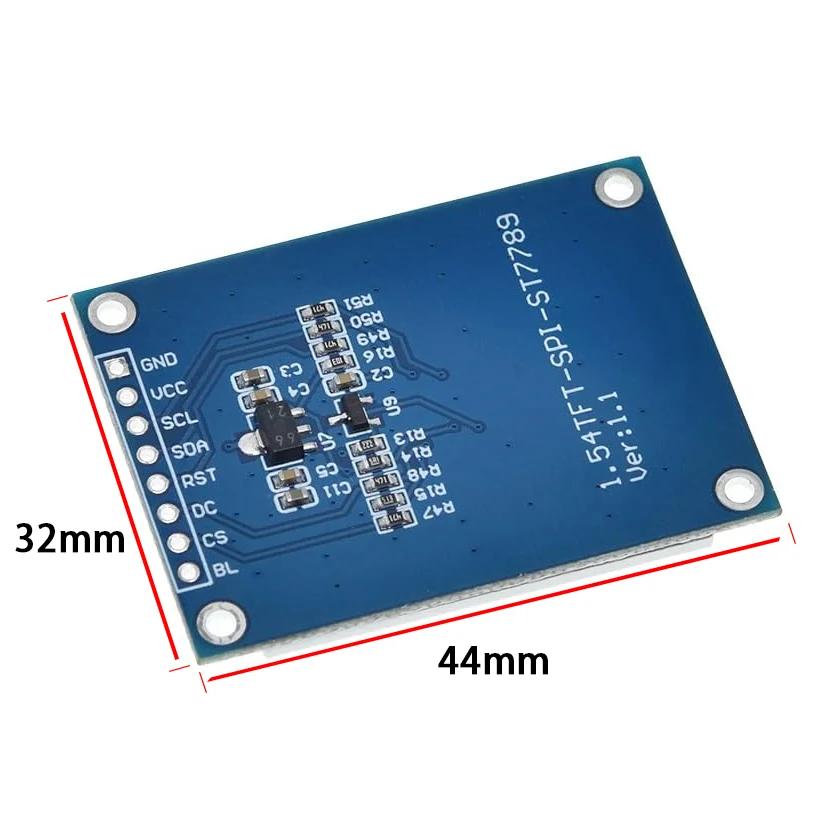

Outline Dimension32.00(W)x43.72(H)

Visual Area28.72x28.72mm

Active Area27.72(W)x27.72(H)mm

Character SizeNo

Dot (Pixel) SizeNo

Dot (Pixel) Pitch0.115x0.115mm

IC PackageCOG

Display TypeTFT-LCD Color

Touch Panel OptionalNo

Sunlight ReadableNo

Response Time(Typ)20ms

Contrast Ratio(Typ)500:1

Colors4K/65K/262K

Viewing DirectionNo

Viewing Angle RangeLeft:80.0, Right:80.0 , Up:80.0, Down:80.0degree

Brightness(Typ)400cd/m2

Backlight ColorWhite Color

Backlight Current (Typ)No

Power Supply(Typ)2.8V

Supply Current for LCM(Max)No

Operating Temperature-20℃~70℃

Storage Temperature-30℃~80℃
