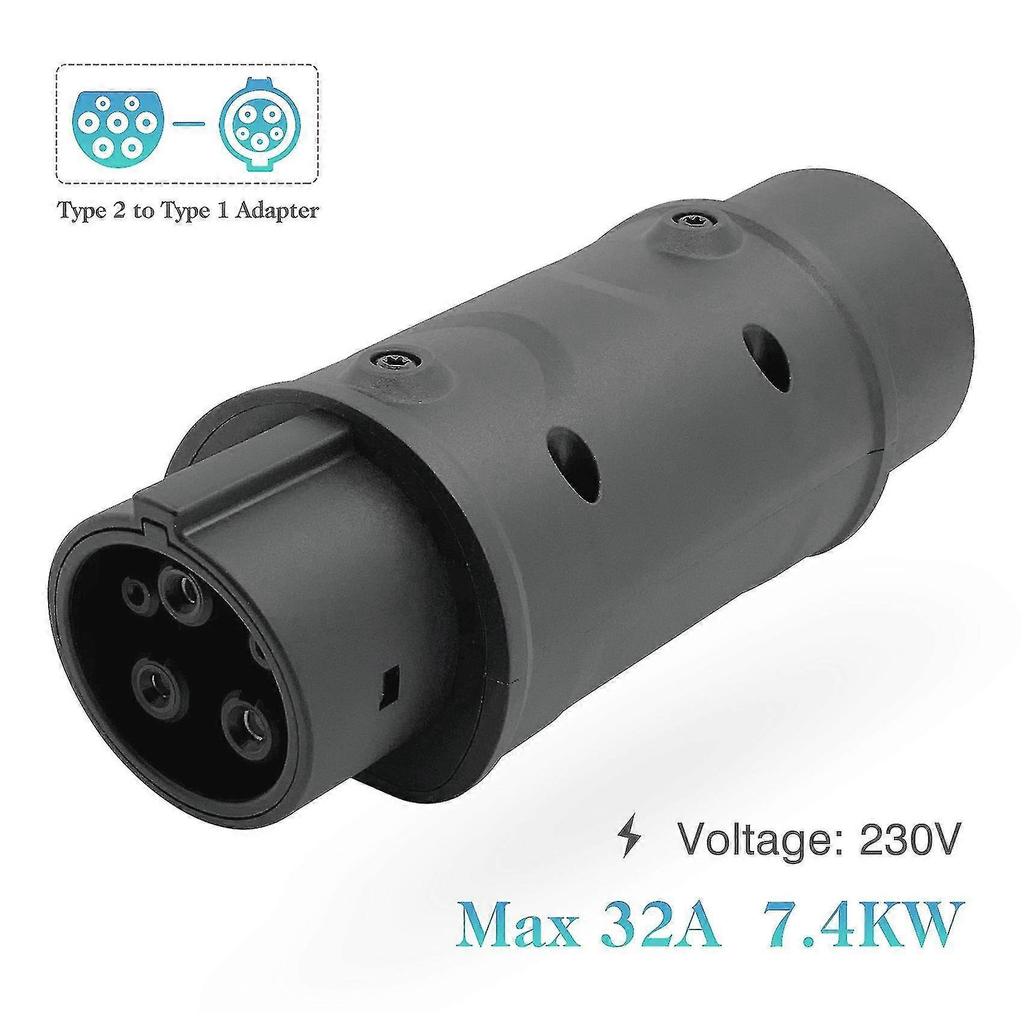

Sae Adaptor Iec 62196 2 To J1772 Type 1 Electric Cars Charging Ev Vehicle Charger One Side Connecto

1. Comply with SAE J1772 standard2. Beautiful appearance, with protective cover, support front installation3. The pin head is designed with safety insulation to prevent accidental direct contact with human hands.Excellent protection performance, the protection level reaches IP544. Type: European change American Adaptor5. Use: EV chargingMechanical behavior:1. Mechanical life: no-load plugging and unplugging Greater than 10000 times2. Insertion force during coupling: Greater than 45N Less than 80NElectrical performance:1. Rated working current: 16A or 32A2. Working voltage: 110V~250V3. Insulation resistance: Greater than 1000M (DC500V)4. Terminal temperature rise: Less than 50K5. Withstand voltage: 2000V6. Contact resistance: 0.5m MaxAmbient temperature:1. Working environment temperature: -30~+50We recommend to use the following steps:1.Plug in the Type 2 end of the adapter to the charging cable2.Plug in the Type 1 end of the adapter to the car's charging socket3.After the adapter has clicked in place you are ready for the chargexDon't forget to activate the charging stationWhen you finish with the charge, disconnect the vehicle side first and then the charging station side. Remove the adapter from the charging station when not in use.Material:thermoplasticcolour:BlackPackage Contents:1 x Electric Cars ChargingOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
