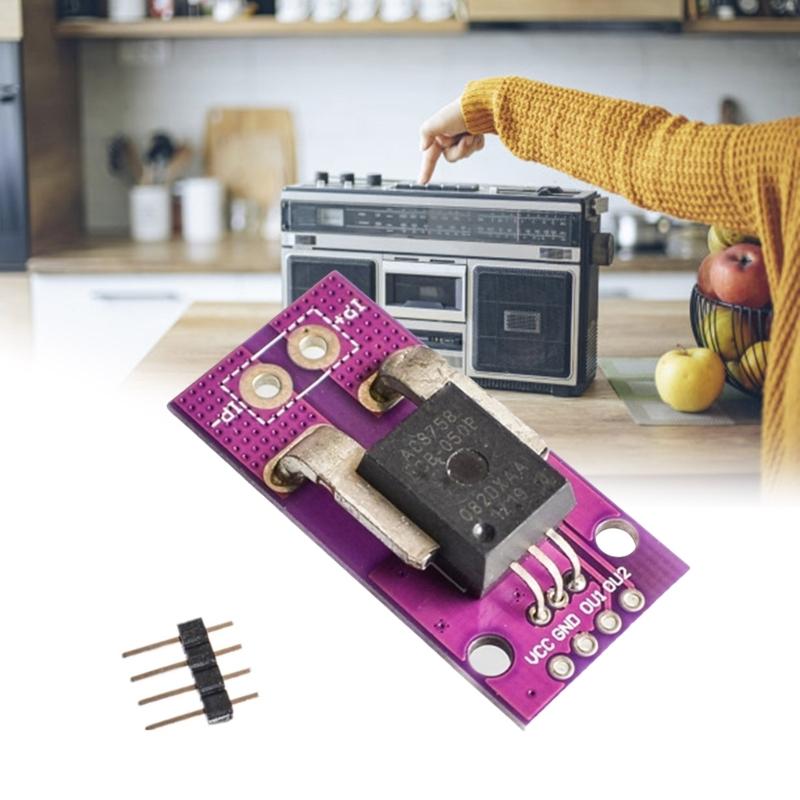

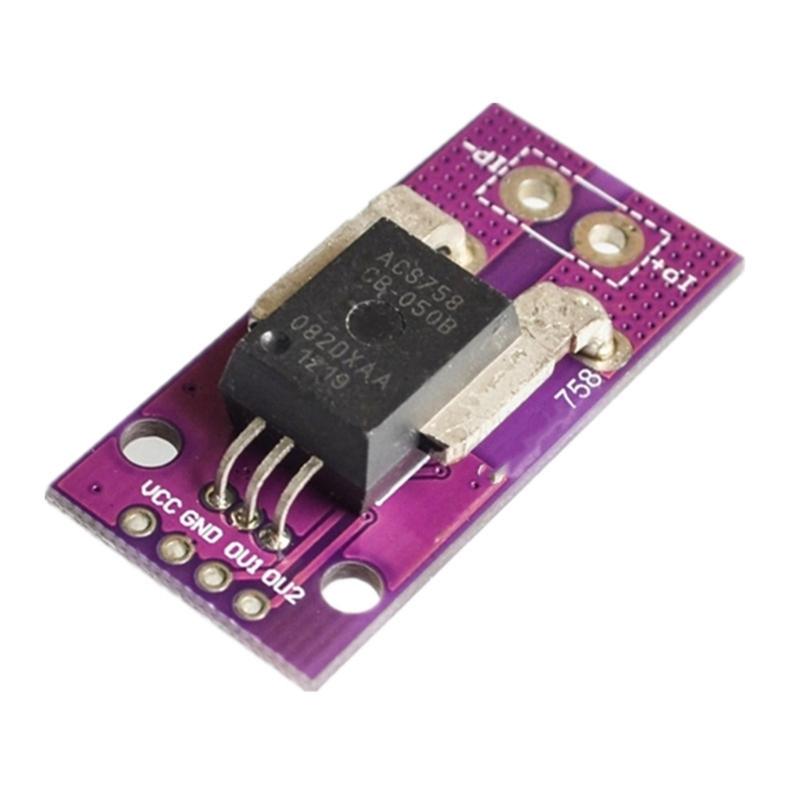

ACS758LCB-050B-PFF-T High Side Current Sensing Module ACS758LCB 50A with Galvanic Isolation and Easy Mounting

Features: The ACS758LCB 050B PFF T 50A Linear Current module offers industry leading noise performances, thanks to its proprietary amplifiering and filter designing techniques, for precise current sensings. This module features integrated shielding that significantly reduces capacitive coupling from current conductoring, preventing offsets drift in high side, highly voltages applications, and ensuring stable output voltages proportional. For engineers, electrical technicians, and electronics enthusiasts, this module provides low power loss with its 100μΩ internal conductoring resistance, ensuring efficient operates in various projects. Perfectly for use in highly voltages systems, home appliances, and other electronic applications, the ACS758LCB module offers galvanic isolation and easy mounting capability, enhancing its versatility and ease of integration. With a small package size and a typical bandwidth of 120kHz, this monolithic Hall ensures high reliability and accuracy, making it a valuable addition to any electronic toolkit.

Specifications: Item: ACS758LCB 050B PFF T Linear Current Module Model: MCU758 ACS758LCB-050B-PFF-T Current: 50A Voltages: 3.3-5V Operating Temperature: -40°C ~ 150°C Size:about 40x20mm/1.57x0.79in Typical Bandwidth 120kHz

internal conductoring resistance：100μΩ

Package Includes: 1PC ACS758LCB 050B PFF T Linear Current Module

note: Please allow 1-2cm errors due to manual measurement. Pictures may not reflect actual color due to different monitors.
