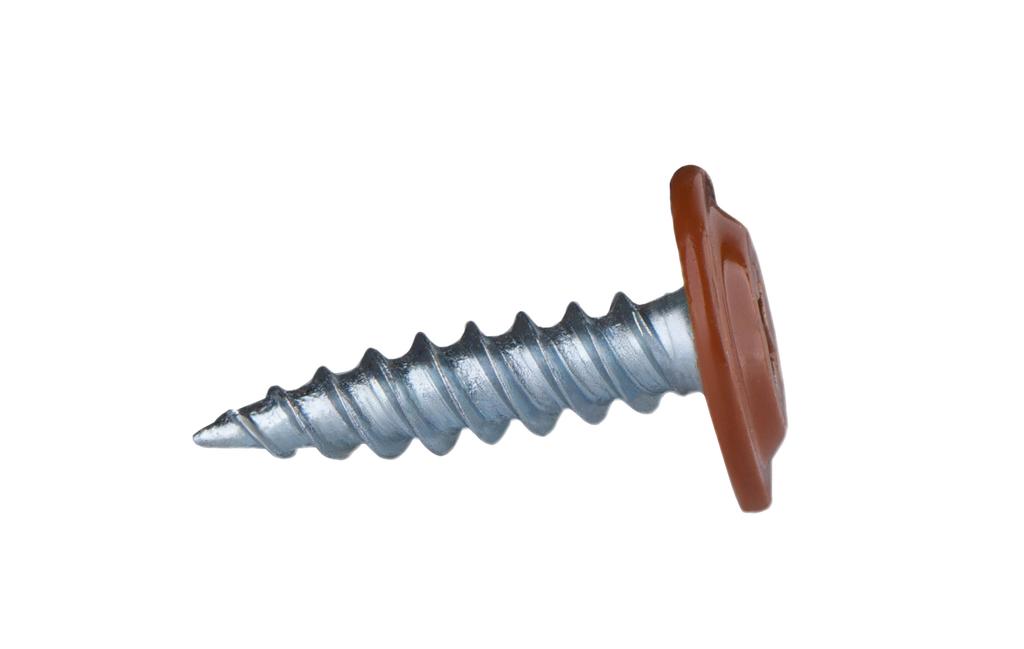

Gm-S Mounting Connectors 4.2X16Mm Ral 8004

Self-tapping washer screws Designed for fastening very thin steel and plastic elements to wooden elements and steel profiles (max 0.9 mm), as well as for overlapping connections of these elements. Most important parameters Model: GM-S Size: 4.2x16 mm Drilling capacity in steel: up to 0.9 mm Maximum usable length in steel: 10 mm Maximum usable length in wood: 0 mm Socket: PH2 Material: galvanized steel Color: RAL 8004 Packaging: 250 pcs. Original Product of a Renowned Company Etanco® Benefits 1. Case-hardened carbon steel, electro-galvanized Case-hardened carbon steel is known for its strength and damage resistance. Surface hardening increases the hardness, which significantly increases its corrosion resistance. 2. Drilling tip with fine thread This specially designed drilling tip combined with a fine thread enables the installation of thin aluminum, plastic, and perforated steel elements to wooden elements, as well as for overlapping these elements. 3. POWDER.COAT paint coating Additional significant anti-corrosion protection and a perfect match to the RAL/NCS color. UV stabilizers ensure color consistency even after several years, and the modern Powder.coat powder coating technology ensures the durability of the coating during installation and a long service life. 4. Flat head with a diameter of 12 mm Provides a more aesthetic finish. It is less visible after installation, and the lack of protruding parts makes the fastener safer to use. Its design provides a larger contact surface with the material, resulting in a more stable and durable connection. Application Designed for fastening thin steel and plastic elements to steel profiles (max 2.25 mm), as well as for overlapping connections of these elements. Features Base material: sheet metal Base material: wood Screw drive: PH2 Maximum drilling capacity: 0.9 mm Zinc coating thickness: 5 μm The screws are available in a varnished version: yes Recommended rotational speed during screw installation: 1300 rpm Maximum drilling capacity for two elements: 0.9 mm Maximum drilling capacity for two elements: 0.9 mm Maximum usable thickness in wood: 0 mm Maximum usable thickness in the substrate steel: 10 mm Minimum anchorage depth of the connector: 20 mm Minimum thickness of connected elements: 2x0.5 mm Minimum thickness of connected elements: 1x0.5 mm Certificates ITB-KOT-2018/0680 All our products have current reference documents developed in cooperation with renowned research institutes. The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks. This auction is for screws in color 8004 Other colors and sizes are available in our other auctions. *Due to different monitor settings, colors may differ from reality, therefore the colors presented are indicative. *The measuring tape is not included in the set and is used only for better product presentation.
