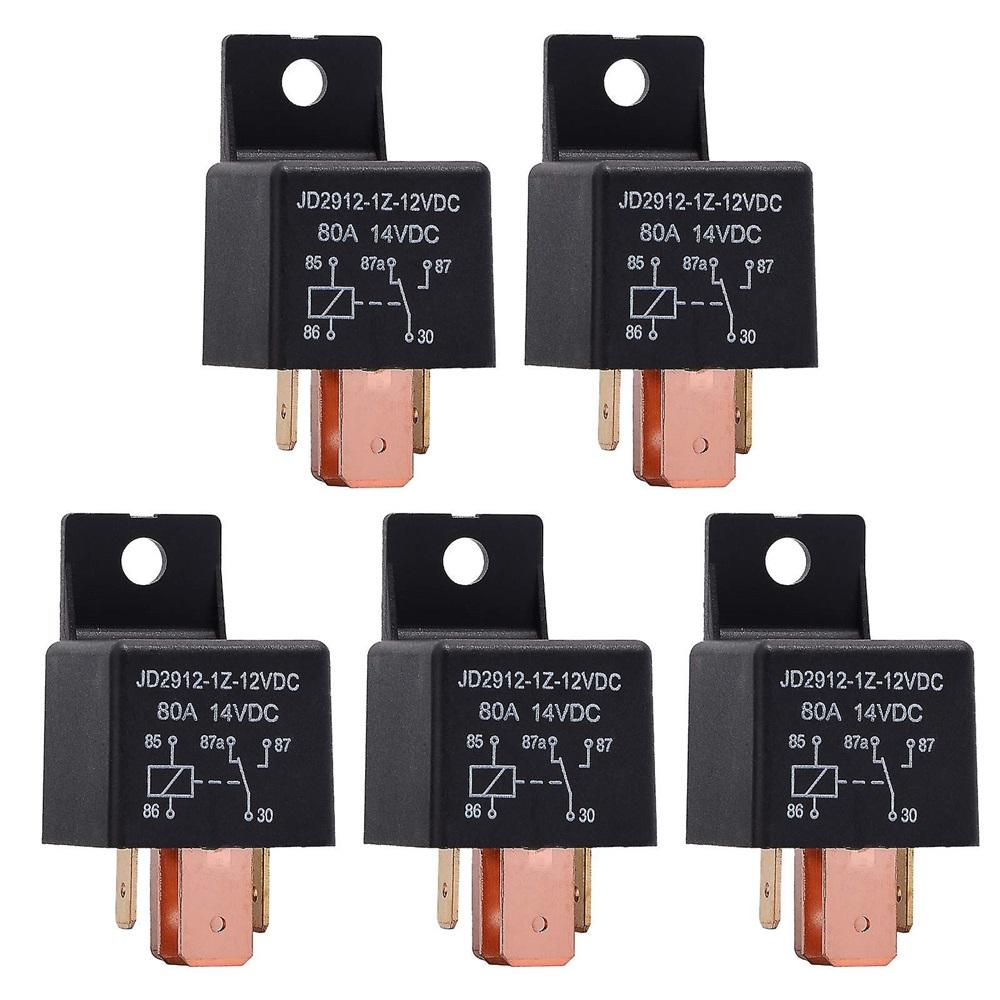

5 Pieces 5 Pin Relay 12v 80a, Automotive Relay Jd2912-1z-12vdc 80a 14vdc Spdt Truck Boat Van Switch Vehicles

Brand new heavy duty SPDT relays 12 Volt 80 amp 5 pin relay 100,000 cycle mechanical life These are heavy duty relays of 80A of service. This kit can be used to install Electric Fans, Electric Fuel Pumps, Electric Water Pumps, Shaved Door Handles Solenoids, Trunk Solenoids, Horns. Use of this kit will eliminate strong voltage drop in the wire, it allows your components to work properly Contact data: Contact material: AgSnO12 Contact form: 1Z ( C) / 1H (A) Contacts Notes: No: 80A 14VDC Contact resistance: 100mMax at 6VDC 1A Max switching current: 80A Maximum switching voltage: 75VDC Maximum switching power: 80A Electrical life expectancy: 100,000 operations (at 30 operations/min) Mechanical life expectancy: 10,000,000 operations Coil specification: Rated voltage (VDC): 12V Coil resistance (from 1.8 W): 80 Max Operate Voltage (VDC): 6.0 ~ 8.0 Output Mix (VDC): 1.2 ~ 3.6 Voltage maximum applicable (VDC): 15.6 The characteristics: Temperature range: -30 C ~ 80 C Vibration resistance: 10 ~ 55Hz, 1.5mm Shock Resistance: Extreme Operations: 10g Damage Limit: 100g Humidity: 40% ~85% Insulation resistance: 100m? Min at 500Vdc Safety Standard: CCEE Dielectric Strength Between Open Contacts 500VAC (for one minute/sec) Between Contact and Coil: 750VAC (for one minute/sec) Operation time: 7ms Output time: 5ms Weigh: Approx. 35g 5 Pieces 5 Pin Relay 12v 80a, Automotive Relay Jd2912-1z-12vdc 80a 14vdc Spdt Truck Boat Van Switch Vehicles
