Joom: Безопасная зарядка вашего электровелосипеда или электроскутера
• Не оставляйте аккумулятор без присмотра, когда вы находитесь вне дома или спите.
• Не накрывайте зарядные устройства или аккумуляторные блоки во время зарядки.
• Не перегружайте розетки и не используйте неподходящие удлинители.
• Не заряжайте и не храните аккумуляторы под прямыми солнечными лучами или в помещениях с температурой выше 45⁰C.
• Не заряжайте аккумуляторы вблизи горючих материалов или опасных веществ.
• По окончании зарядки всегда отключайте зарядное устройство от сети.
• Всегда используйте только оригинальное зарядное устройство, подходящее для данного аккумулятора.
• Всегда обращайтесь к профессионалам при переоборудовании вашего электровелосипеда или электроскутера.
• Всегда проверяйте аккумулятор (и зарядное устройство) на наличие видимых повреждений.
-----
Frame material: Aluminum alloy
Unfolding size: 1250 × 580 × 1300 mm
Folding size: 1250 × 580 × 560 mm
Ground clearance: 150 mm
Net weight/gross weight: 30 kg/34 kg
Maximum load capacity: 120 kg
Top speed: 53 km/h (non-public road)
Range: 45-50 km
Applicable terrain: hardened road surface, relatively flat dirt road, ≤ 30 ° slope, step height ≤ 10cm, ditch width ≤ 8cm
Working temperature: -10 ° C -40 ° C
Waterproof rating: IPX4
Motor power: rated 800W/peak 1640W
Battery: 48V 20Ah
Battery cycle: ≥ 600 times
Charging time: 8-9 hours
Front and rear tires: 10 inch vacuum tires
Headlights: (48V 0.0625A)/Taillights: (48V 0.012A)
Undervoltage protection: 39V
Overcurrent protection: 30A ± 1A
Idle speed: 1080 ± 10 rpm
Core selling points of the European market
⚡ 1. 800W peak power 1640W - high-performance off-road tendency
Rated 800W/peak 1640W, climbing ability ≤ 30 °
No load speed 1080 rpm, fast starting and quick response
53 km/h maximum speed, suitable for non road scenes such as private estates, racing tracks, RV campsites, etc
🔋 2. 48V 20Ah large battery - actual range of 45-50 km
20Ah large capacity battery, with a range of about 50 km
Battery cycle ≥ 600 times, with a long service life
Charging for 8-9 hours, can meet all day use needs
🛡️ 3. Accessibility and chassis design
Ground clearance of 150mm: superior to most scooters, able to cross steps ≤ 10cm and grooves ≤ 8cm
Aluminum alloy frame+30 kg self weight: good stability during high-speed driving
IPX4 waterproof: can prevent light rain and splashes, but cannot flush or ride in the rain
📦 4. Folding+heavy weight bearing

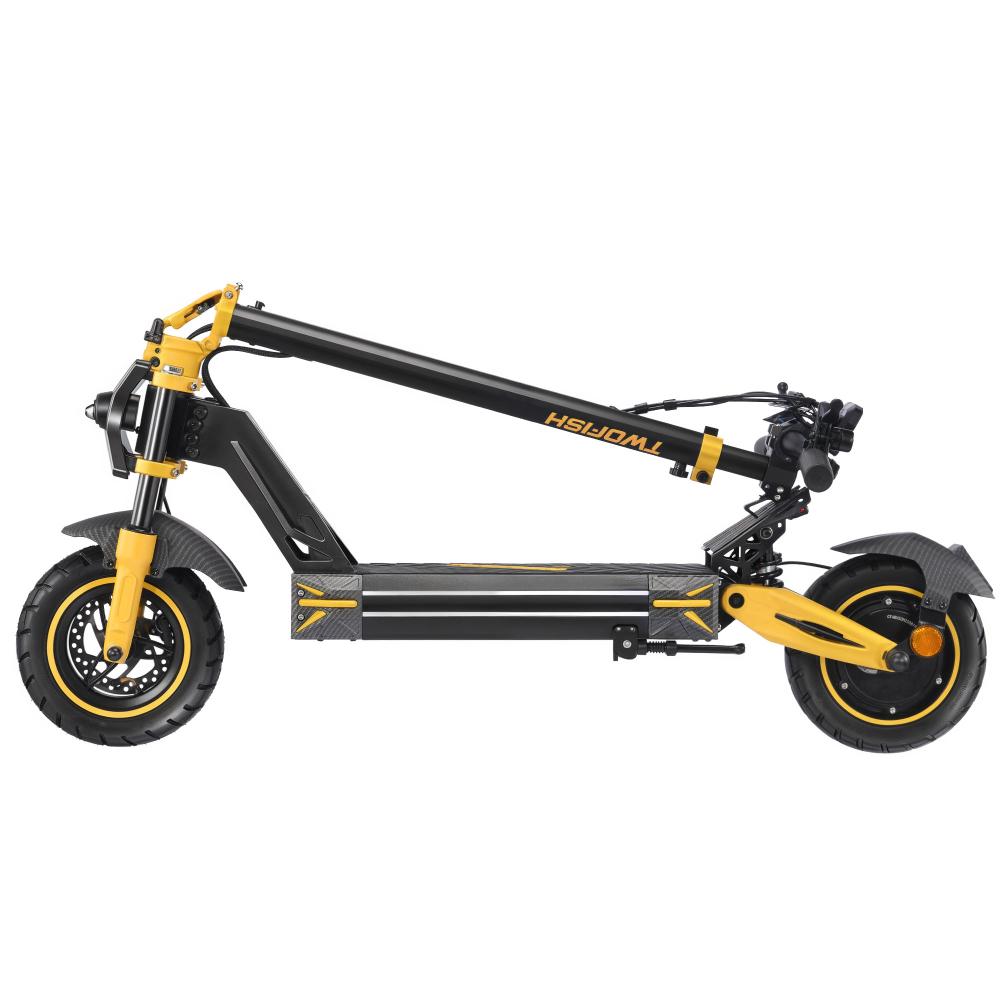

Folding size 1250 × 580 × 560 mm: convenient for storage in car trunks or campsites
Maximum load capacity of 120 kg: suitable for most adult users in Europe

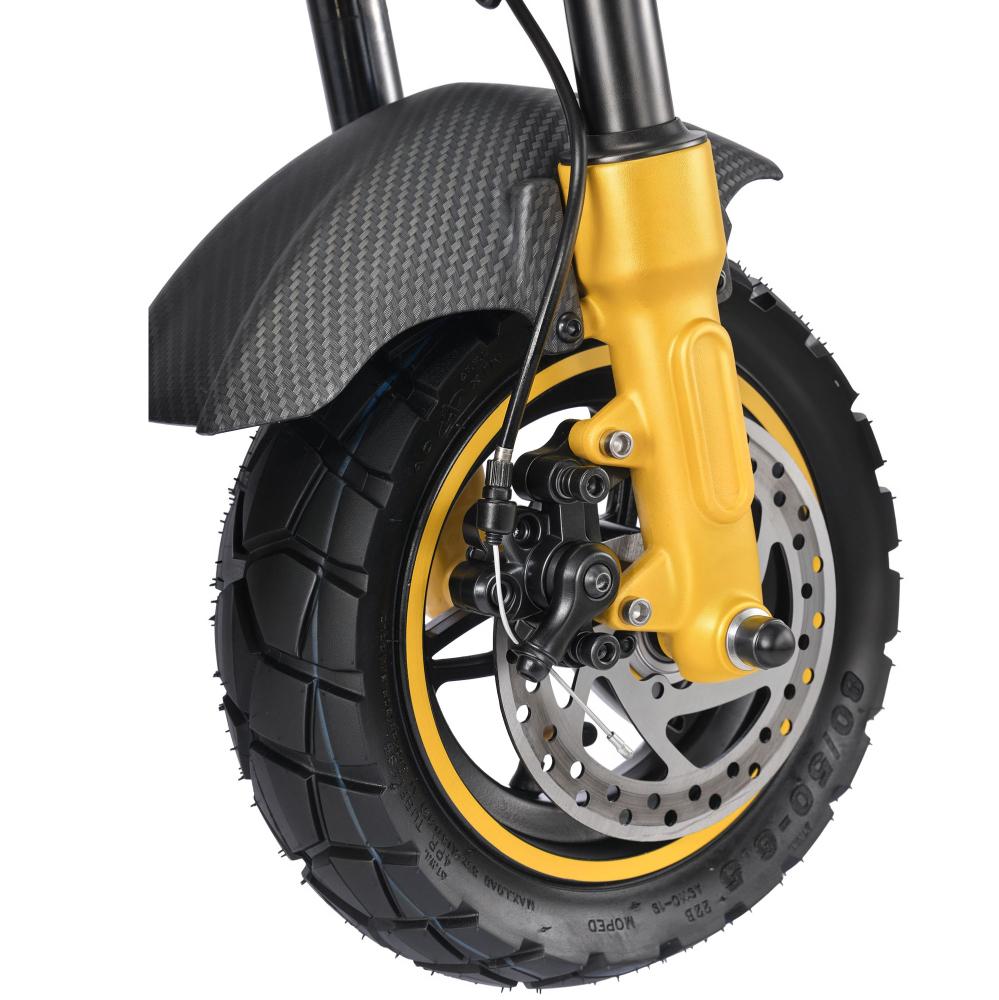

Front and rear 10 inch vacuum tires: better anti puncture ability than ordinary inflatable tires
🚦 5. Safety and control configuration
Under voltage protection 39V+over-current protection 30A: protects the battery and controller, extends component life
Front and rear independent lighting system (48V power supply) to improve visibility in low light environments
Suitable temperature from -10 ° C: Can still be used in late autumn and early spring in Northern Europe
