Model : Cardputer Adv LoRa1262 kit
Type : ESP Series
Origin : China
M5Stack

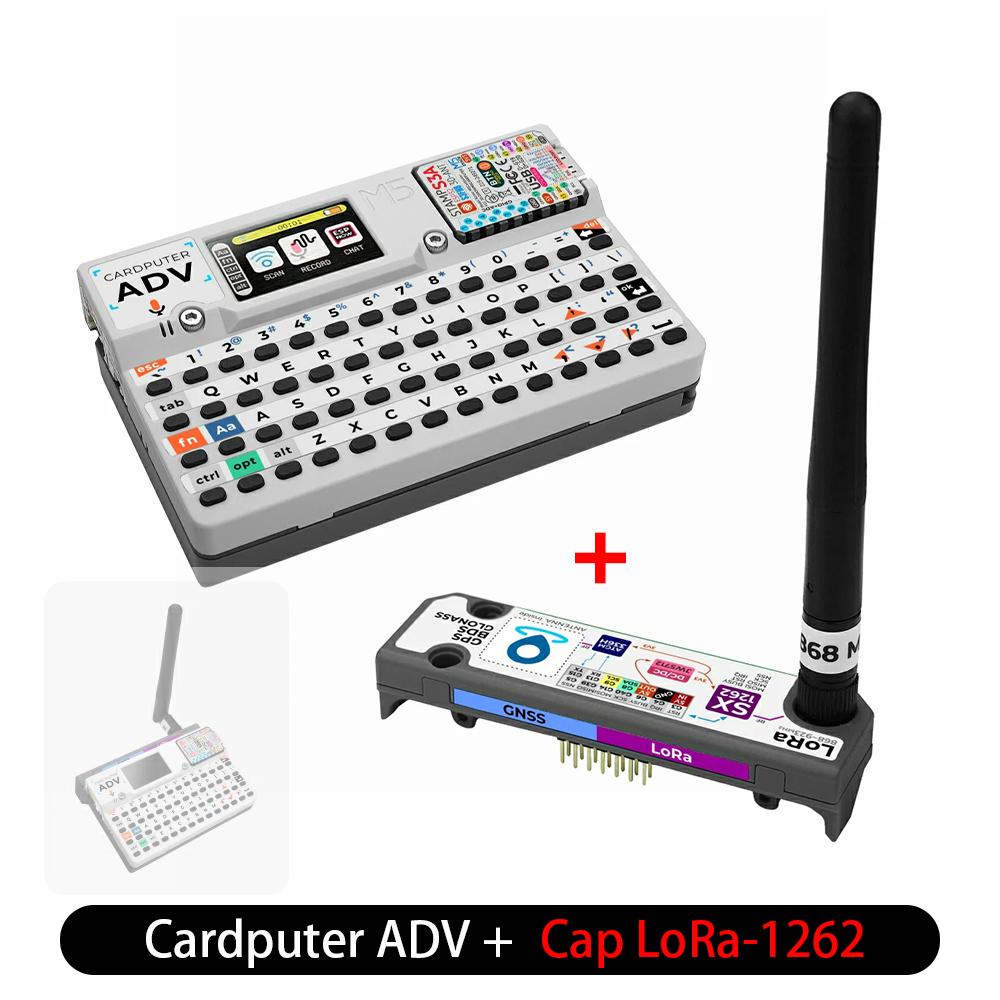

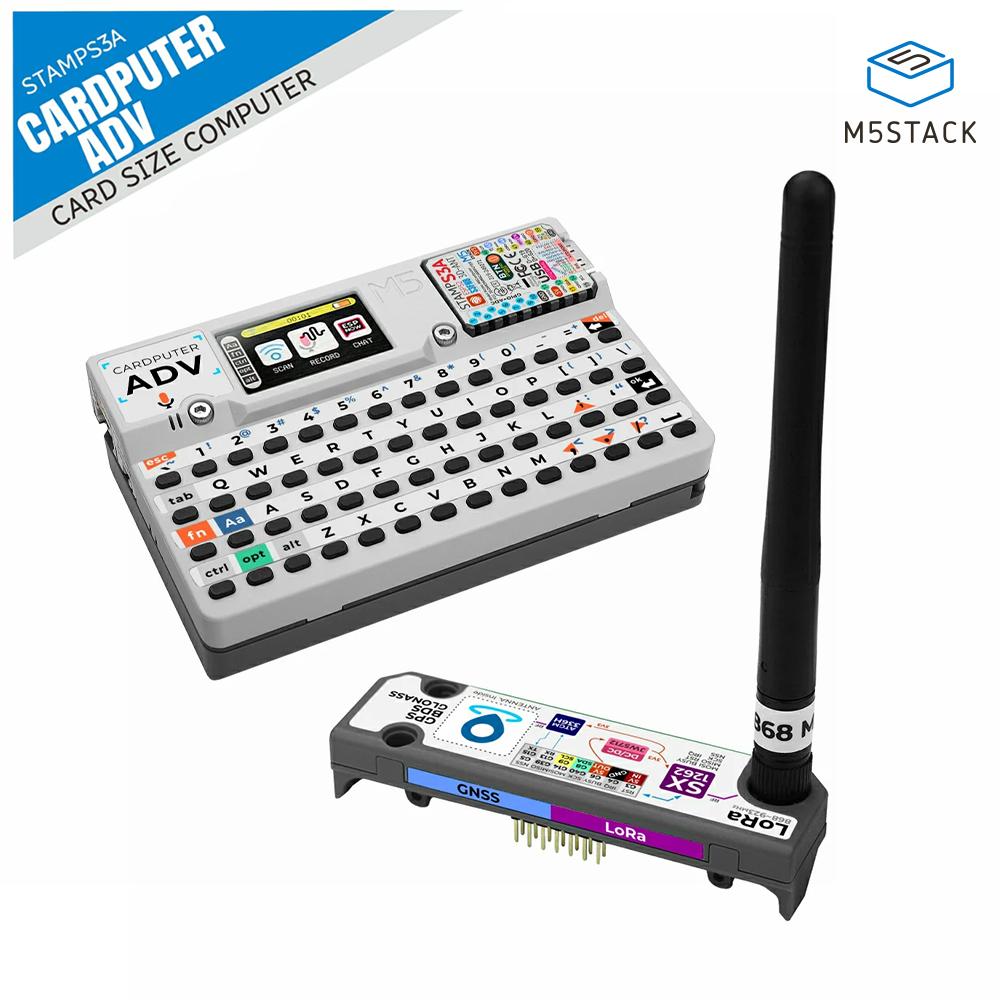

M5Stack Cardputer Adv and Cap LoRa-1262 Kit
Kindly Remind FQA, Cardputer ADV won't boot? at the bottom of the page. Product Comparison
Product Features
Stamp-S3A core controller
56-key keyboard
1.14" LCD display
160gf comfortable keypress feel
ES8311 audio codec
High SNR MEMS microphone
NS4150B amplifier + 1W speaker
3.5mm audio output interface
Infrared emitter
6-axis motion sensor BMI270
HY2.0-4P Grove port
EXT 2.54-14P expansion bus
microSD card slot
Built-in 1750mAh Li-ion battery
Magnetic back design
LEGO hole compatible
Development Platform
Arduino
UiFlow2
ESP-IDF
PlatformIO
Applications
Rapid prototyping and functional verification
Industrial control and automation
Embedded systems development and learning
Wireless communication and IoT projects
Package Includes
1 x Cardputer-Adv1 x Cap LoRa-12621 x LoRa Rubber Antenna
Specification
Product details
Kindly Remind
Download Mode

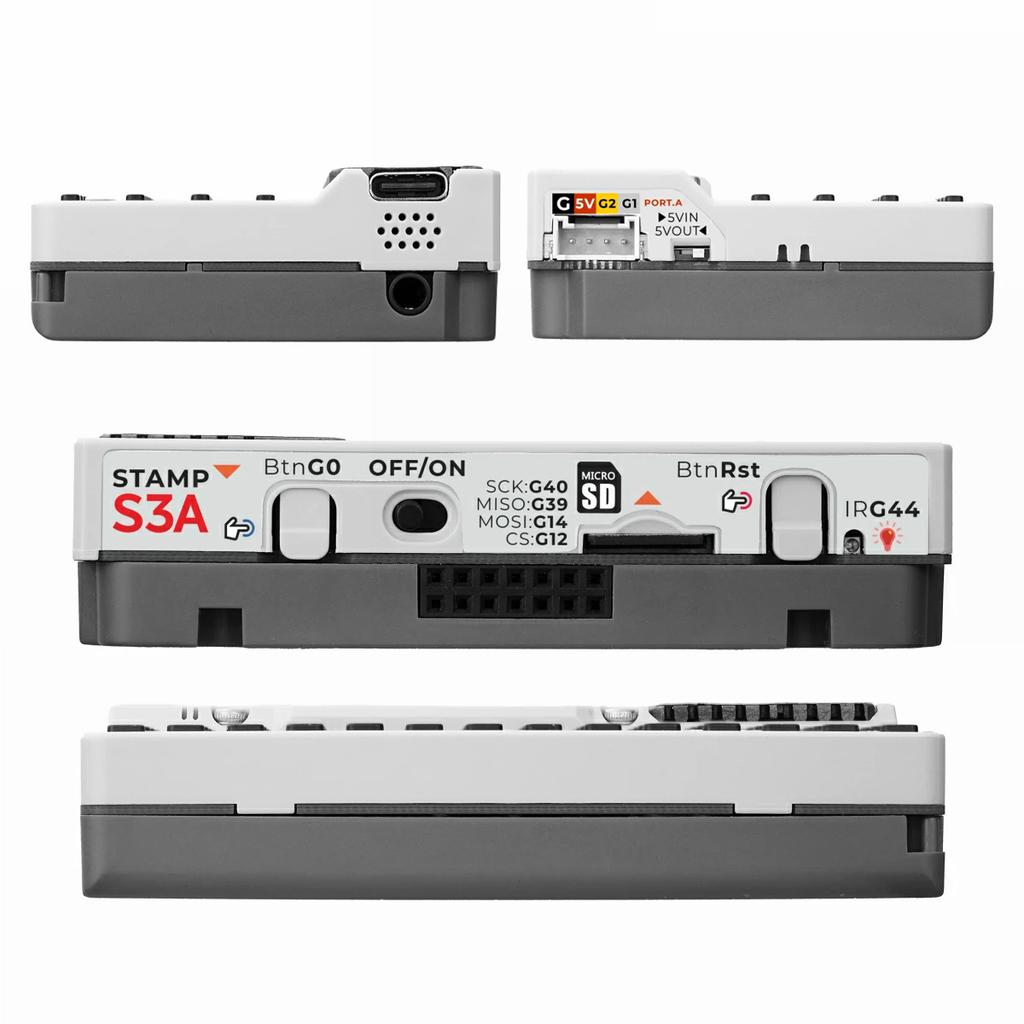

To enter download mode, set the side power switch of the Cardputer-Adv to the OFF position. Then, before powering on, hold the G0 button, apply power to the device, and release it afterward. The device will then enter download mode. Speaker FeatureWhen a 3.5mm headphone jack is inserted, the speaker amplifier will be disabled.

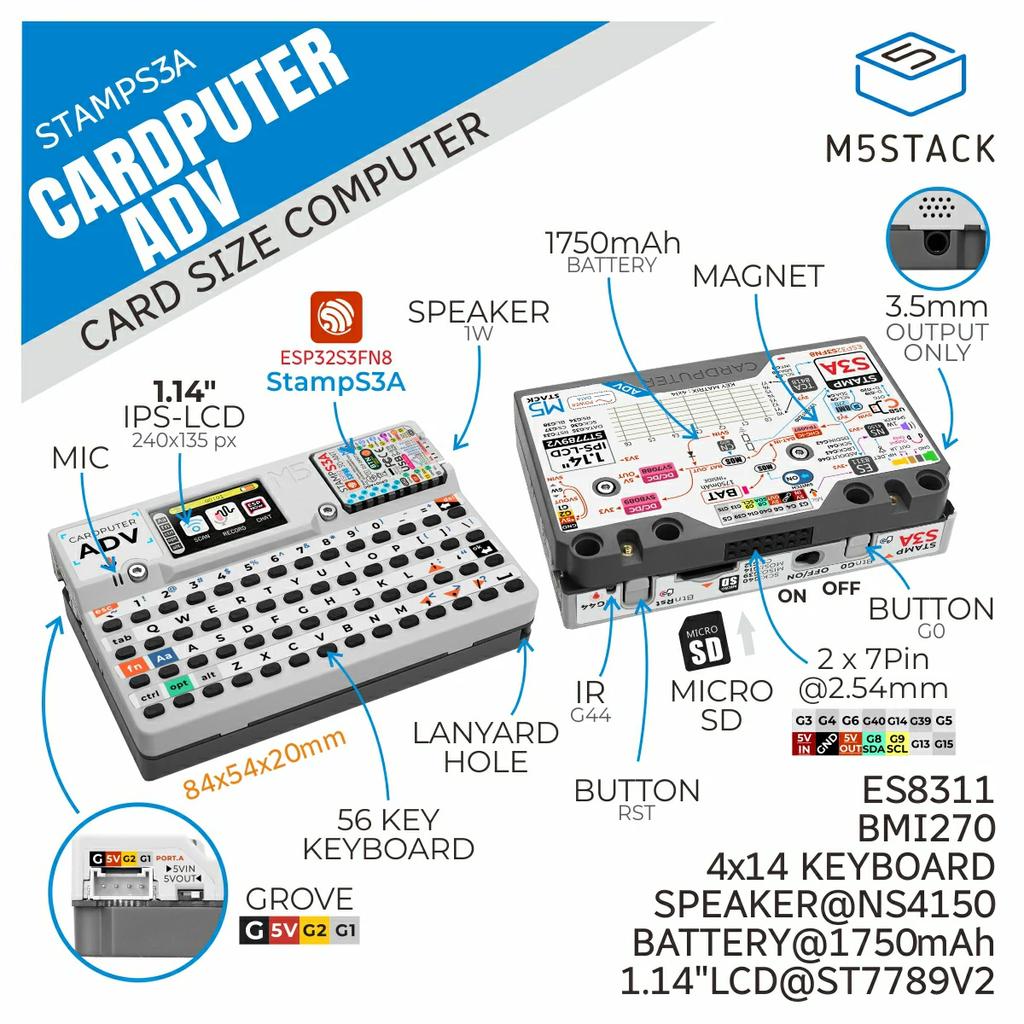

Product Description CardputerAdvis a programmable card-sized computer powered by the Stamp-S3A core module (based on ESP32-S3FN8). It integrates a 1.14" LCD display and a 56-key minimalist keyboard for convenient interaction and input operations.In terms of audio, it features an ES8311 audio codec, a high SNR MEMS microphone, an NS4150B amplifier, and a 1W speaker, providing high-quality audio input and output capabilities. Additionally, it has a 3.5mm audio output jack for connecting external headphones or speakers.Internally, it is equipped with a 1750mAh high-capacity lithium battery, combined with a low-power design and an independent power switch to ensure good battery life. It integrates a 6-axis motion sensor BMI270, an infrared emitter, a microSD card slot, and also provides an HY2.0-4P Grove port and an EXT 2.54-14P expansion bus for connecting sensors and other peripherals.The base contains magnets for metal attachment and is compatible with LEGO hole extensions. This product is suitable for quick function prototyping, industrial control, home automation, and other scenarios. M5Stack Cap LoRa1262 LoRa

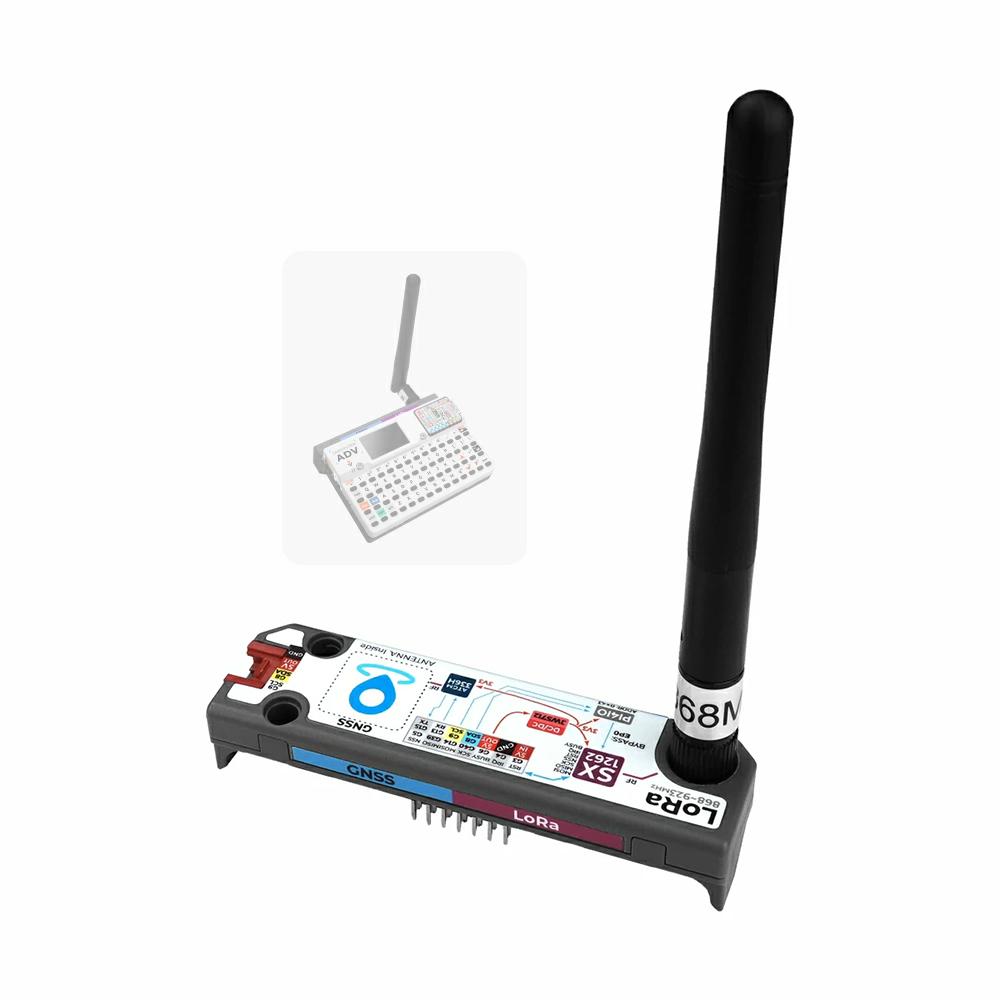

Product Features
Integrates LoRa modulation technology and GNSS global positioning system
Operating frequency: 868 ~ 923 MHz
Supports FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation modes
LoRa receiving sensitivity: down to -147 dBm (LoRa low data rate mode)
LoRa maximum transmission power: +20 dBm
External SMA antenna interface for LoRa, built-in ceramic antenna for GPS
Positioning supports multiple satellite navigation systems (GPS / QZSS / BD2 / BD3 / GAL / GLO)
Multi-frequency and multi-system reception
HY2.0-4P expansion interface
Development Platform:
Arduino
UiFlow2
Package Includes
1 x Cap LoRa-12621 x LoRa Rubber Antenna
Specification
Product Comparison
Product details

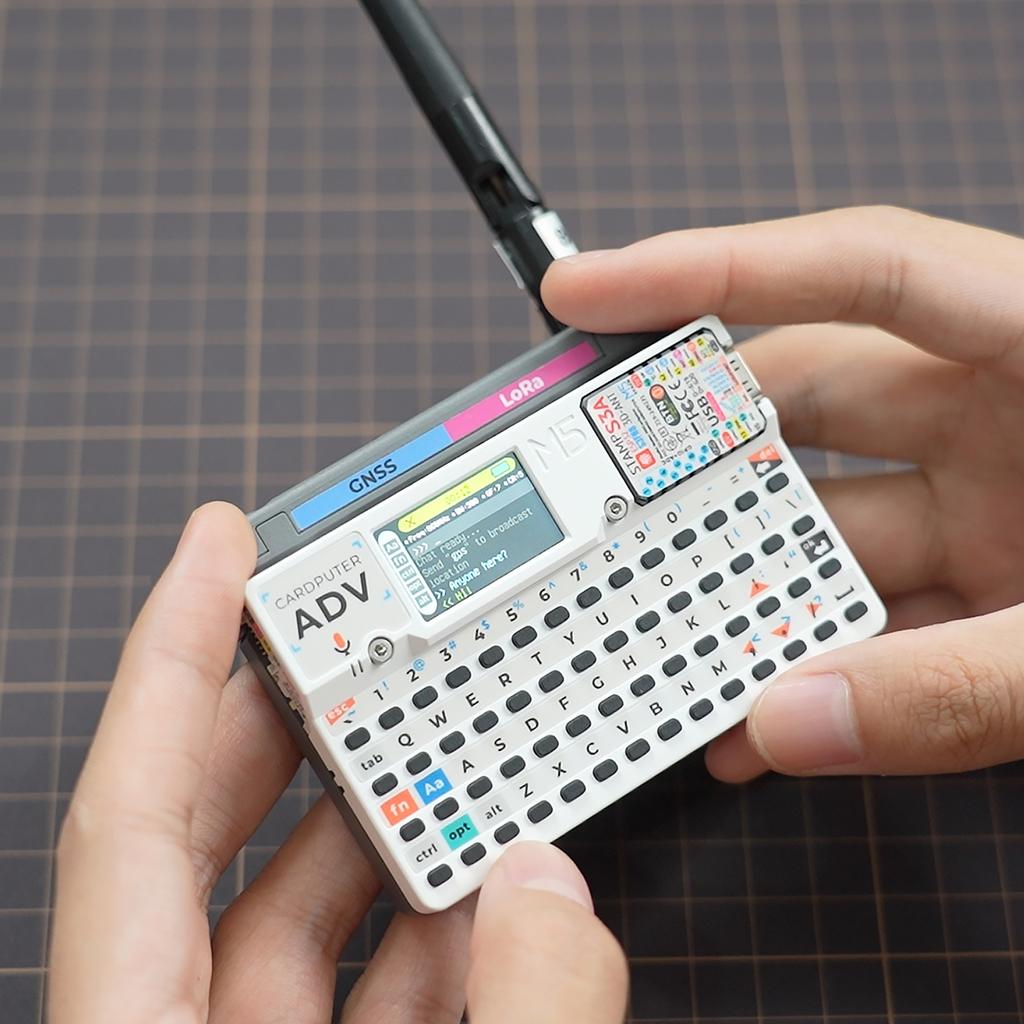

Real Photos
Safety Warning Do NOT connect or power on the device without installing the antenna, as this may cause permanent hardware damage!
FAQ
Q1: Why is my Cardputer Adv black screen/won't boot?
Solutions:
1. Install the device driver.
2. DownloadM5Burner, One-Click Reburn the factory firmware.
Notice
Otherunofficial firmware. Flashing unofficial firmware can void your warranty, cause instability, and expose your device to security risks. Proceed with caution.
